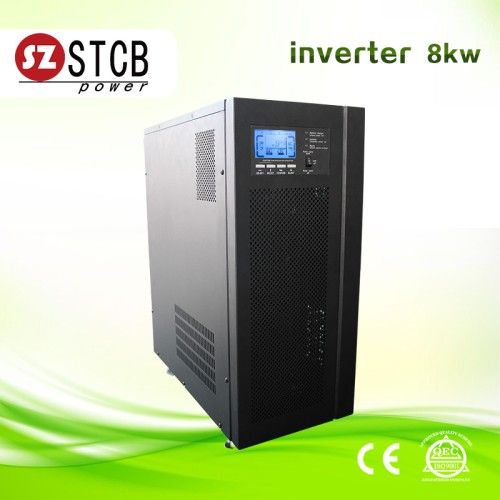

Model NO. | PL16 8000w |
Certification | ISO9001, CE |
Grid Type | off-Grid Inverter |
Type | DC/AC Inverters |
Frequency Range | 40Hz-65Hz |
Power Factor | 0.9~1.0 |
Dimension(L*W*H) | 538*255*630mm |
Warrenty | 12 Months |
Trademark | STCB |
Origin | Guangzhou Shenzhen |
Nature of Source Flow | Passive inverter |
Output Power | 8000W |
Nature of Wave String | Sine Wave Inverter |
Input Voltage Range | 185VAC-275VAC |
Rated Output Power | 8000W |
Nominal Charge Current | 35A/50A |
Net Weight | 66.1kg |
Power Source | Electric Power |
Specification | CE |
HS Code | 8504403090 |
MODEL | PL16-8KW | PL16-10KW | PL16-12KW | |
Line Mode Specifications: | ||||
Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) | ||
Nominal Input Voltage | 230Vac | |||
Input voltage range | 185VAC-275VAC | |||
Input Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | ||
Frequency Range | 40hz-65hz | |||
Main Functions | Output Voltage Waveform | As same as Input Waveform | ||
Over-Load Protection (SMPS load) | Fuse | |||
Output Short Circuit Protection | Fuse | |||
Transfer Switch Rating | 63A/80A/100A | |||
Max Bypass Overload Current | 100A | |||
Battery Invert Mode Specifications: | ||||
output | Output Voltage Waveform | Sine wave | ||
Rated Output Power (KW) | 8kw/10kw/12kw | |||
Power Factor | 0.9~1.0 | |||
Nominal Output Voltage (V) | 230Vac ±10% rms;10% rms;10% rms | |||
Nominal Output Frequency | 60Hz ± 0.3Hzn; 0.3Hzn; 0.3Hz | |||
50Hz ± 0.3Hzn; 0.3Hzn; 0.3Hz | ||||
DC Voltage | Nominal DC Input Voltage | 48V/72V | ||
DC Voltage range | 40-62Vdc for 48VDC/ 70-93Vdc for 72VDC | |||
Low Battery Alarm | 42.0Vdc ± 1.2Vdc for 48V battery battery battery | |||
63.0Vdc ± 1.8Vdc for 72V battery battery battery | ||||
DC input Range | 40.0Vdc-60Vdc for 48V battery | |||
64Vdc -96Vdc for 72V battery | ||||
Charger | Nominal Charge Current | 35A/50A(5 stages adjustable charging current) | ||
Over Charge Protection | Bat. ≥62Vdc / 93Vdc, beeps 0.5s every 1s & fault after 60sfter 60sfter 60s | |||
Efficiency | Efficiency (Battery Mode) | ≥85%e;85%;85% | ||
Efficiency (Line Mode) | >98% | |||
Transfer Time | Ac to Dc | 20ms (Max) | ||
Dc to Ac | 15ms (Max) | |||
System parameter | Over-Load Protection | 110% Load﹥150%, beeps 0.5s every 1s, and Fault after 20s.20s. | ||
Short Circuit Protection | Current limit (Fault after 10s) | |||
Surge rating (10s) | 1:3 (VA) | |||
Power saver | Load<25W (Enabled on" P/S auto"?setting of Remote control)emote control) | |||
Protections | Low battery, over charging, over load , over temp. | |||
Indicators | LED+LCD Display | |||
General Specifications | Temperature Range | 0ºCto 40ºCo 40ºCrdm;Co 40ºC | ||
Storage temperature | -15ºC~60ºCC~60ºCrdm;CC~60ºC | |||
Operation humidity | 5% to 95%(non-condensing) | |||
Audible Noise | 60dB max | |||
Cooling | Forced air, variable speed fan | |||
Dimension(L*W*H) | 538*255*630mm | |||
Net weight(Kg) | 8KW | 10KW | 12KW | |
60kg | 65.5kg | 71kg |
