High Frequency Sine Wave Online UPS (3C10-20K)

500-850 USD

Model NO.	3C10-20K
Type	On-line
Application	Industry
Brand	Kemapower
Normal Voltage	220VAC
Wave Form	Pure Sine Wave
Specification	3C10-20K
HS Code	8504402000
Phase	Single Phase
Protection	Short Circuit
Standby UPS	Sine Wave Output UPS
Power	4.2kw/7kw/10.5kw/14kw
Frequency Range	40.5~55Hz
Trademark	KEMAPOWER
Origin	China

* I/P: Three Phase,Wire Voltage 380VAC

* O/P:Single Phase, 220VAC± 1%lusmn; 1%usmn; 1%

* Capacity:10KVA /15KVA /20KVA

* Wave Form:Pure sine wave

* Transfer Time:0 ms

* DC voltage: 240VDC/192VDC

* Battery: External Battery

Key Features

1.High frequency and double conversion online UPS

2.Three Phase in Single phase out, Power Factor 0.8

3.Fully digitized microprocessor control,Zero transfer time

4.Wide input voltage range and Advanced PFC technology

5.Self-testing when UPS startup

6.Advanced battery management

7.Automatic battery charging in UPS off mode

8.Lightning and surge protection

9.Short circuit ,overload and the others full protection

10.Battery voltage and load capacity display

11.Smart RS232 communication with monitoring software 12.SNMP card optional

13.LCD display,EPO,ECO,USB communication,Maintenance bypass optional

14.LCD with Fault Codes

15.N+X parallel design optional

Technical Specifications
ITEM	MODEL	N-3C10K	N-3C15K	N-3C20K
Capacity	VA / Watts	10KVA/8KW	15KVA / 12KW	20KVA/16KW
Input	Normal voltage	380V,RST+N+G
	Input Voltage range	Phase Voltage range ,120V-275V+-5V
	Frequency range	50/60±10%usmn;10%usmn;10%
	Input power factor	﹥0.99(220VAC,full R load)oad)
	Generator	Support generator input(Generator rating≥2*UPS ratingtingting
Output	Voltage range	220VAC+-1%
	Frequency range	48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode)ry mode)ry mode)
	Wave form	Pure Sine Wave
	Transfer Time	0 ms
	Distortion (Full Load) linear load	< 3%
	distortion (Ful l Load) nonlinear load	< 5%
	Overload capacity	105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. ﹥150% ,0.5s then transfer to bypass and alarm.arm.
	Load peak ratio	3:1(max)
192VDC Battery	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	192VDC	192VDC	192VDC
	Battery Capacity	External	External	External
	Around backup time (Full load)	Depended on battery capacity
	Around backup time (Half load)	Depended on battery capacity
	Recharge time	Depended on battery capacity
Battery	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	240VDC or 192VDC	240VDC or 192VDC	240VDC or 192VDC
	Battery Capacity	External	External	External
	Around backup time (Full load)	Depended on battery capacity
	Around backup time (Half load)	Depended on battery capacity
	Recharge time	Depended on battery capacity. Charger Current 2.5Amp or 5Amp

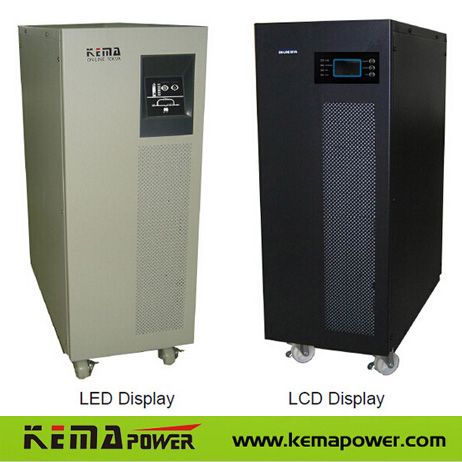

LED Display	LED	Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault
Audible Alarm	Battery Mode	Beeping every 4 seconds (re-settable) and every second when battery
	Overload	Beeping twice every second
	UPS Fault	Beeping Continuously
	Bettery low/charger fault	Beeping every 1 second
	Bypass mode	Beeping every 2 min
	L/N inverse	Beeping every 2 min
Communications		RS232,With monitoring software. USB Option, SNMP Card Option
working Environment	Working temperature	- 20ºC~40ºCC~40ºCrdm;CC~40ºC
	Humidity	0-95% non-condensing
Size and weight	Product size WxDxH (mm)	260565715	260565715	260565715
	package Size WxDxH (mm)	450620670	440710980	440710980
	N.weight(Kg)	28	36	36
	Gross weight(Kg)	34	42	42
optional functions	ECO	optional
	EPO	optional
	LCD display (optional)	input / output VAC & HZ, Load Rate,Battery Rate,Temp.Temp.Temp.
REMARK		The UPS Can rework to single phse in single phase out
