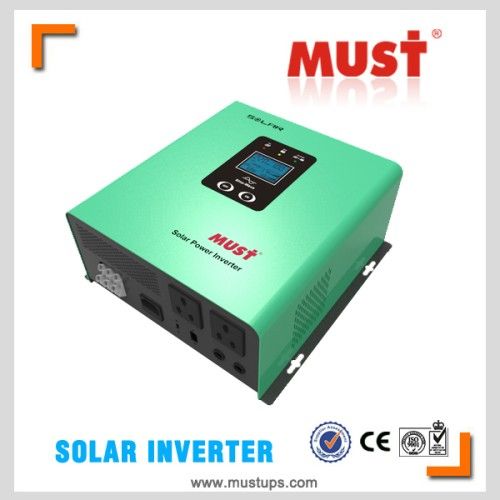

2000va DC-AC AVR Pure Sine Wave Solar Inverter Price
| Model NO. | PV2000 |
| Phase | Single |
| Certification | CE, ISO9001 |
| Type | PV to AC, DC to AC |
| Circuit Topologies | N |
| AC Input | 140-275VAC |
| AC Output | 230VAC |
| PV Input | 55V Max |
| Wave | Pure Sine Wave |
| Application | Solar System |
| Specification | CE, ISO, SGS |
| HS Code | 8504403090 |
| Nature of Source Flow | N |
| Output Power | >1000W |
| Brand | Must or OEM |
| Power Source | Solar Power |
| Nature of Wave String | Sine Wave Inverter |
| Battery DC | 24V |
| AC Charger | 10 a Max |
| PV Charger | 30A Max |
| Protection | Deep Discharge, Overcharge, Short Circuit etc |
| Trademark | MUST |
| Origin | Guangdong, China |
2000VA dc-ac AVR pure sine wave SOLAR INVERTER PRICE
1. Pure sine wave
2. Inbuilt 30A solar charger controller
3. With AVR function
4. Solar first, AC power second
1. Pure sine wave
2. Inbuilt 30A solar charger controller
3. With AVR function
4. Solar first, AC power second
| MODEL | PV20-500 | PV20-1200 | PV20-2000 | ||||
| Default Battery System Voltage | 12VDC | 12VDC | 24VDC | ||||
| INVERTER OUTPUT | Reted Power | 500VA/300W | 1200VA/700W | 2000VA/1200W | |||
| Surge Rating (20ms) | 900W | 2100W | 3600W | ||||
| Waveform | Pure sine wave | ||||||
| Nominal Output Voltage RMS | 220VAC(±10% RMS)10% RMS)10% RMS) | ||||||
| Output Frequency | 5OHz/60Hz±1 Hzsmn;1 Hzsmn;1 Hz | ||||||
| Inverter Efficiency(Peak) | >80% | ||||||
| Line Mode Efficiency | >95% | ||||||
| Typical Transfer Time | Typical 2~6ms 10ms(max) | ||||||
| AC INPUT | Voltage | 220VAC | |||||
| Selectable Voltage Range | 140~275VAC(For Personal Computers) | ||||||
| Frequency Range | 50Hz/60Hz (Auto sensing 47~65Hz) | ||||||
| BATTERY | Minimum Start Voltage | 10.5VDC | 21.0VDC | ||||
| Low Battery Alarm | 10.5VDC±0.3Vsmn;0.3Vsmn;0.3V | 21.0VDC±0.6Vsmn;0.6Vsmn;0.6V | |||||
| Low Battery Cutoff | 10.0VDC±0.3Vsmn;0.3Vsmn;0.3V | 20.0VDC±0.6Vsmn;0.6Vsmn;0.6V | |||||
| High Voltage Alarm | 15.5VDC±0.3Vsmn;0.3Vsmn;0.3V | 31.0VDC±0.6Vsmn;0.6Vsmn;0.6V | |||||
| High Battery Voltage Recover | 15.0VDC±0.3Vsmn;0.3Vsmn;0.3V | 30.0VDC±0.6Vsmn;0.6Vsmn;0.6V | |||||
| CHARGER | Charge Voltage | 14.0±0.2Vsmn;0.2Vsmn;0.2V | 28.0V±0.2Vsmn;0.2Vsmn;0.2V | ||||
| Overcharge Protection S.D. | 15.5VDC | 31.0VDC | |||||
| Maximum Charge Current | 10A MAX | ||||||
| BYPASS & PROTECTION | Input Voltage Waveform | Sine wave | |||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||
| Low Freq Trip | 47±0.3Hz for 50Hz; 57±0.3Hz for 60Hz;0.3Hz for 60Hz;0.3Hz for 60Hz | ||||||
| High Freq Trip | 55±0.3Hz for 50Hz; 65±0.3Hz for 60Hz;0.3Hz for 60Hz;0.3Hz for 60Hz | ||||||
| Overload Protection (SMPS Load) | Load﹥110% R Load fault after 60S 60S | ||||||
| Output Short Circuit Protection | AC FUSE Protection | ||||||
| Bypass Breaker Rating | 10A | ||||||
| Max Bypass Current | 10Amp | ||||||
| SOLAR CHARGER | Maximum PV Charge Current | 30A | |||||
| DC Voltage | 12V/24V atuo work | ||||||
| Maximum PV Array Power | 150W*3 solar panels | 150W*4 solar panels | |||||
| MPPT Range @ Operating Voltage | 16~55VDC | ||||||
| Maximum PV Array Open Circuit Voltage | 55VDC | ||||||
| Maximum Efficiency | >95% | ||||||
| Standby Power Consumption | <2W | ||||||
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | |||||
| Dimensions (W*H*D) | 301*132*328mm | ||||||
| Net Weight (Solar CHG) kg | 6.86KG | 8.92KG | 10.25KG | ||||
| Shipping Dimensions(W*H*D) | 325*187*391mm | ||||||
| Shipping Weight (Solar CHG) kg | 7.54KG | 9.6KG | 10.93KG | ||||
| OTHER | Operating Environment | 0°C~40°C 0~90% relative humidity (non-condensing)ndensing)ndensing) | |||||
| Noise Level | Less than 60dB | ||||||
| Display | LED+LCD | ||||||
| Standard Warranty | 1 year | ||||||
