110V/120V/220/230V 1kVA High Frequency Online UPS
bargain
add to cart| Model NO. | EX1-3K |
| Type | On-line |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Small Type |
| Brand | Zlpower |
| Power Factor | 0.8 |
| Delivery Time | 5-15days |
| Specification | 1KVA0.8KW 1KVA0.7KW |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Short Circuit |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Color | Balck & White WhiteWhite |
| Product Status | in Stock |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |
1KVA ture online UPS
0.8 and 0.7 power factor available selectable

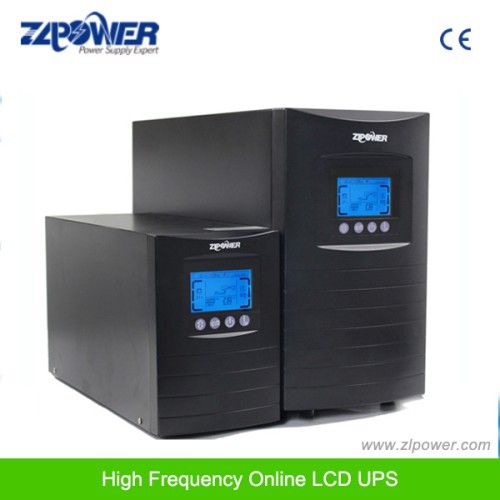

High frequency online UPS EX1K, EX2K, EX3K is LCD digital display double conversion uninterruptible power supply, pure sine wave output wave form.
There are two models, one is standard online UPS with inside batteries such as EX1K, the other is long backup time online UPS without batteries such as EX1KL, will backup long time after connecting with external battery banks.
popular 1KVA ture online UPS high frequency pure sine wave 110VAC 220VAC 230VAC RS232 USB connect
Application:
Servers, sensitive electronic equipment, telecom, bank, bureau, office, home, ATM, traffic, hospital, public security and so on.
Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability. 4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.
Specification:
0.8 and 0.7 power factor available selectable
High frequency online UPS EX1K, EX2K, EX3K is LCD digital display double conversion uninterruptible power supply, pure sine wave output wave form.
There are two models, one is standard online UPS with inside batteries such as EX1K, the other is long backup time online UPS without batteries such as EX1KL, will backup long time after connecting with external battery banks.
popular 1KVA ture online UPS high frequency pure sine wave 110VAC 220VAC 230VAC RS232 USB connect
Application:
Servers, sensitive electronic equipment, telecom, bank, bureau, office, home, ATM, traffic, hospital, public security and so on.
Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability. 4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.
Specification:
| Model | EX1K | EX1KL | |
| Capacity | VA/W | 1000VA/800W | 1000VA/800W |
| Input | Nominal Voltage | 110/115/120VAC or 200/220/230/240VAC | |
| Voltage Range | 60~138VAC or 115~300VAC | ||
| Frequency Range | 50Hz :46~54Hz; 60Hz : 56~64Hz | ||
| Phase | Single phase with Ground | ||
| Power Factor | ≥0.970.970.97 | ||
| Output | Voltage | 110/115/120 (1±2%) VAC or 208/220/230/240 (1±2%) VAC±2%) VAC2%) VAC±2%) VAC | |
| Frequency | 50/60Hz(Adjustable); 50Hz AC Mode: Follow AC, Battery Mode: 50Hz (1±0.2%);n;0.2%);n;0.2%); 60Hz AC Mode: Follow AC, Battery Mode: 60Hz (1±0.2%)mn;0.2%)mn;0.2%) | ||
| Wave Form | Pure sine wave | ||
| Power Factor | 0.8 | ||
| Harmonic Distortion | ≤3% THD (Linear load); ≤7% THD (Non-Linear load)r load)r load) | ||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output; over 150% maintain 200ms | ||
| Current Crest Ratio | 3∶1 | ||
| Connections | IEC320*4 | ||
| Efficiency | Battery Mode | 83% | |
| AC Mode | 85% | ||
| Battery | Type | Sealed free maintenance lead acid battery | |
| Nominal DC voltage | Built in batteries 12V 7.0AH | 36Vdc | |
| Quantity | 3 PCS | Depend on requested back-up time | |
| Back-up Time (Full Load) | ≥6min6min6min | Depends on the capacity of external battery bank | |
| Recharge Time | 5 hours to 90% of capacity full discharge | Depends on the capacity of external battery bank | |
| Charge Current (Max) | 1.0A | 5.0A/8.0A | |
| Charge Voltage (Vdc) | 41.1V±0.4Vsmn;0.4Vsmn;0.4V | 41.1V±0.4Vsmn;0.4Vsmn;0.4V | |
| Bypass | Automatic Transfer | On overload and UPS failure | |
| Before UPS Power-on | Default 'ON' user adjustable to 'YES'le to "YES"t;YES" | ||
| Transfer Time | 0ms; less than 4ms from inverter to bypass and vice versa | ||
| Indicators | LCD Display | UPS status, Battery capacity, loading, Fault code (LCD: I/P&O/P voltage&frequency, Battery voltage) voltage) voltage) | |
| Audible Alarm | Bypass,battery mode, Battery low, Overload, Fault | ||
| Acoustic Noise | At 1 Meter Distance | <45dB45dB | |
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX,FreeBSD, HP-UX and MAC | |
| SNMP (Optional) | Remote control UPS through SNMP management and Internet | ||
| USB (Optional) | Windows family software and Mac OS | ||
| Network Surge Protection | RJ45 I/O port available for network or FAX/ Telephone line/ Modem | ||
| Environmental | Operating Temperature | 0~40ºCordm;Cordm;C | |
| Operating Humidity | 20-90% (No condensing) | ||
| Weight | Net Weight (kgs) | 11 | 5.5 |
| UPS Dimension | L*W*H (mm) | 370*145*220 | |
