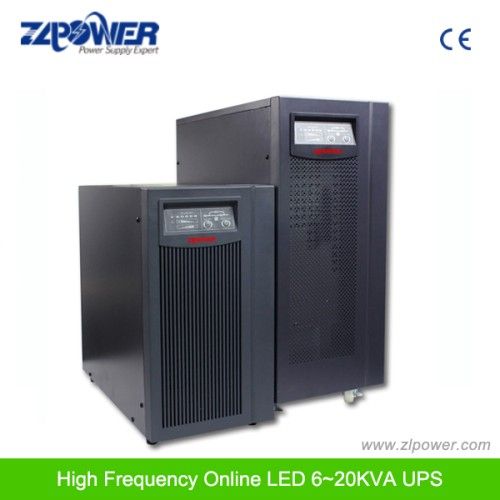

High Frequency Double Conversion Ture Online UPS (DX6kVA-DX20kVA)
bargain
add to cart| Model NO. | DX6KVA-DX31 20KVA |
| Type | On-line |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Zlpower |
| Power Factor | 0.8 |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |
| Phase | Single and Three Phase |
| Protection | Short Circuit |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Color | Black |
| DC Voltage | 192VDC |
| Specification | CE, FCC |
| HS Code | 8504402000 |
DX6K/6KL/10K/10KL Series High Frequency Online UPS
Key Features:
♦ Advanced DSP technology, ensure long life reliability.bility.bility.
♦ Wide input voltage range, zero transfer time.r time.r time.
♦ True online double conversion technology.nology.nology.
♦ N+X parallel redundancy.ndancy.ndancy.
♦ Excellent protection against over voltage, over Load, over current, over charge and so on. so on. so on.
♦ Input L and N Lines reverse wiring detection, Auto start when AC back.C back.C back.
♦ DC start function, input PFC revises function.nction.nction.
♦ Auto bypass output.output.output.
♦ RS232 intelligent communication monitoring.toring.toring.
♦ AS-400 Dry contact and SNMP card remote intelligent control.ontrol.ontrol.
♦ Available to work with generators.rators.rators.
♦ Lightning, surge, short circuit, protection.ection.ection.
Specificaiton:
Key Features:
♦ Advanced DSP technology, ensure long life reliability.bility.bility.
♦ Wide input voltage range, zero transfer time.r time.r time.
♦ True online double conversion technology.nology.nology.
♦ N+X parallel redundancy.ndancy.ndancy.
♦ Excellent protection against over voltage, over Load, over current, over charge and so on. so on. so on.
♦ Input L and N Lines reverse wiring detection, Auto start when AC back.C back.C back.
♦ DC start function, input PFC revises function.nction.nction.
♦ Auto bypass output.output.output.
♦ RS232 intelligent communication monitoring.toring.toring.
♦ AS-400 Dry contact and SNMP card remote intelligent control.ontrol.ontrol.
♦ Available to work with generators.rators.rators.
♦ Lightning, surge, short circuit, protection.ection.ection.
Specificaiton:
| MODEL | DX6K | DX10K | DX6KL | DX10KL | |
| Capacity | VA/W | 6000VA/4800W | 10KVA/8000W | 6000VA/4800W | 10KVA/8000W |
| Input | Nominal Voltage | 208/220/230/240VAC | |||
| Voltage Range | 120~275VAC | ||||
| Frequency Range | 50/60Hz (Adjustable); 50Hz:46~54Hz ; 60Hz:56~64Hz | ||||
| Phase | Single phase with Ground | ||||
| Power Factor | ≥0.970.970.97 | ||||
| Output | Voltage | 208/220/230/240*(1±1%) VAC;1%) VAC;1%) VAC | |||
| Frequency | 50/60Hz (Adjustable); 50Hz AC Mode: Follow AC, Battery Mode: 50Hz (1±0.2%) / 60Hz AC Mode: Follow AC, Battery Mode: 60Hz (1±0.2%)(1±0.2%)n;0.2%)(1±0.2%) | ||||
| Wave Form | Pure sine Wave | ||||
| Power Factor | 0.8 | ||||
| Harmonic Distortion | ≤2% (Linear load); ≤6% (Non-Linear load)r load)r load) | ||||
| Overload Capacity | Load<105% work consistant; 105%≤load<125% 1min; 125%≤load<150% 30secad<150% 30sec | ||||
| Current Crest Ratio | 3∶1 | ||||
| Connections | Terminal block | ||||
| Efficiency | Battery Mode | 87% | |||
| AC Mode | 88% | ||||
| Battery | Type | Sealed free maintenance lead acid battery | |||
| Nominal DC Voltage | Built in batteries 12V7.0AH | 192 VDC | |||
| Quantity | 16 PCS | ||||
| Back-up Time(Full load) | ≥4minutesutesutes | ≥3minutesutesutes | Depends on requested Back-up time | ||
| Recharge Time | 7 hours to 90% | Depends on capacity of external battery bank | |||
| Charge Current(Max) | 1.0 A | 4.5A | |||
| Charge Voltage | 219.5Vdc±1%lusmn;1%lusmn;1% | ||||
| Bypass | Automatic Transfer | On overload and UPS failure | |||
| Transfer Time | Zero | ||||
| Indicators | LED Display | UPS status,Battery capacity, Loading, Fault code | |||
| Audible Alarm | Bypass, battery mode, Battery low, Overload, Fault | ||||
| Acoustic Noise | At 1 Meter Distance | <55dB55dB | |||
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/3000, Linux, Sun network , IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX, MAC | |||
| SNMP (Optional) | Power management from SNMP manager and web browser | ||||
| USB (Optional) | Windows family software and Mac OS | ||||
| Environmental | Operating Temperature | 0~40ºCordm;Cordm;C | |||
| Operating Humidity | 20-90% (No condensation ) | ||||
| Weight | Net weight (kgs) | 59 | 60.5 | 20 | 21.5 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*240*460 | ||
