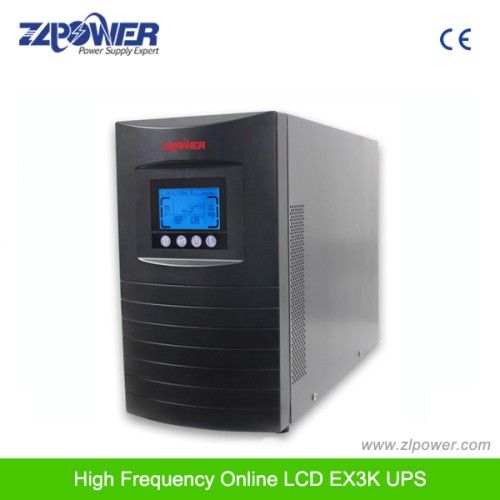

Ture Online UPS 120V 220V LCD LED High Frequency Single Phase (EX1-3K TX1-3K)
| Model NO. | EX1K~EX3KL |
| Type | On-line |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Small Type |
| Brand | Zlpower |
| Input Voltage Range | 60~138V/115~300V |
| Input Phase | Single Phase with Ground |
| AC Mode Efficiency | 85% |
| Communication | RS232 |
| Transfer Time | Zero |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Short Circuit |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Capacity | 1kVA~3kVA |
| Frequency | 46~54Hz/56~64Hz |
| Output Power Factor | 0.8 |
| Battery Mode Efficiency | 83% |
| USB, Snmp | Optional |
| Trademark | ZLPOWER/OEM |
| Origin | Shenzhen, China |
Ture online UPS 120V 220V 1kVA 2kVA 3kVA LCD LED high frequency single phase
Application: EX Series 1kVA~3kVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features:
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability Lightning, surge, short circuit, Network/fax/modem surge protection.
Application: EX Series 1kVA~3kVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features:
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability Lightning, surge, short circuit, Network/fax/modem surge protection.
| UPS Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | ||||
| Input | Voltage | (115~300) VAC | |||||
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) | ||||||
| Output | Voltage | 220/230/240 (1± 1%) VAC (Adjustable via LCD panel)D panel)D panel) | |||||
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)1± 0.2%); 0.2%)1± 0.2%) | ||||||
| Output Wave Form | Sine Wave | ||||||
| Back-up Time | Full Load | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank | ≥ 9′; 9′prime;; 9′ | Depends on the capacity of the external battery bank | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥ 14′ 14′prime; 14′ | ≥ 21′ 21′prime; 21′ | ≥ 15′ 15′prime; 15′ | ||||
| Battery Nominal DC Voltage | 36VDC | 96VDC | |||||
| Transfer Time | 0ms | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | ||||||
| Communications | RS-232+Intelligent Slot | ||||||
| Environment | Temperature | 0C~40C | |||||
| Humidity | 15%~90% | ||||||
| Dimensions (W*D*H)mm | 145*400*220 | 192*460*340 | |||||
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 | |
