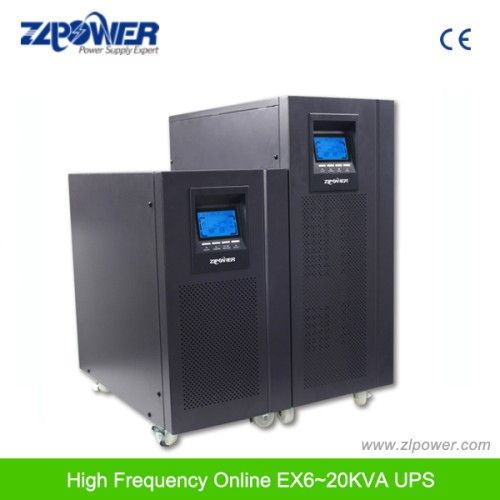

Pure Sine Wave High Frequency Ture Online UPS 6kVA-20kVA
| Model NO. | EX6-20KVA |
| Type | On-line |
| Application | Communication |
| Standby Time | Long-acting Machine |
| Output Capacity | Medium Type |
| Brand | Zlpower |
| Trademark | ZLPOWER/OEM |
| Origin | Shenzhen, China |
| Phase | Single and Three Phase |
| Protection | Short Circuit |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| color | white & black blackblack |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8504402000 |
Pure sine wave high frequency ture online UPS 6kVA-20kVA
Application:
EX Series 6kVA~20kVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, Army and so on.
Key Features:
Large blue LCD digital display shows Detailed Real-Time UPS Status and parameters.
Output Voltage, Frequency parameter and bypass function can be set via the display.
Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
True online double conversion technology.
N+X Parallel Redundancy
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Available to work with generators.
Lightning, surge, short circuit, Network/fax/modem surge protection
Specification:
Application:
EX Series 6kVA~20kVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, Army and so on.
Key Features:
Large blue LCD digital display shows Detailed Real-Time UPS Status and parameters.
Output Voltage, Frequency parameter and bypass function can be set via the display.
Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
True online double conversion technology.
N+X Parallel Redundancy
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Available to work with generators.
Lightning, surge, short circuit, Network/fax/modem surge protection
Specification:
| MODEL | EX6K | EX10K | EX6KL | EX10KL | |
| Capacity | VA/W | 6000VA/4800W | 10KVA/8000W | 6000VA/4800W | 10KVA/8000W |
| Input | Nominal Voltage | 208/220/230/240VAC | |||
| Voltage Range | 120~275VAC | ||||
| Frequency Range | 50/60Hz (Adjustable); 50Hz:46~54Hz ; 60Hz:56~64Hz | ||||
| Phase | Single phase with Ground | ||||
| Power Factor | ≥0.970.970.97 | ||||
| Output | Voltage | 208/220/230/240*(1±1%) VAC;1%) VAC;1%) VAC | |||
| Frequency | 50/60Hz (Adjustable); 50Hz AC Mode: Follow AC, Battery Mode: 50Hz (1±0.2%) / 60Hz AC Mode: Follow AC, Battery Mode: 60Hz (1±0.2%)(1±0.2%)n;0.2%)(1±0.2%) | ||||
| Wave Form | Pure sine Wave | ||||
| Power Factor | 0.8 | ||||
| Harmonic Distortion | ≤2% (Linear load); ≤6% (Non-Linear load)r load)r load) | ||||
| Overload Capacity | Load<105% work consistant; 105%≤load<125% 1min; 125%≤load<150% 30secad<150% 30sec | ||||
| Current Crest Ratio | 3∶1 | ||||
| Connections | Terminal block | ||||
| Efficiency | Battery Mode | 87% | |||
| AC Mode | 88% | ||||
| Battery | Type | Sealed free maintenance lead acid battery | |||
| Nominal DC Voltage | Built in batteries 12V7.0AH | 192 VDC | |||
| Quantity | 16 PCS | ||||
| Back-up Time(Full load) | ≥4minutesutesutes | ≥3minutesutesutes | Depends on requested Back-up time | ||
| Recharge Time | 7 hours to 90% | Depends on capacity of external battery bank | |||
| Charge Current(Max) | 1.0 A | 4.5A | |||
| Charge Voltage | 219.5Vdc±1%lusmn;1%lusmn;1% | ||||
| Bypass | Automatic Transfer | On overload and UPS failure | |||
| Transfer Time | Zero | ||||
| Indicators | LCD Display | UPS status, I/P&O/P voltage&frequency,Battery voltage, Battery capacity, Loading, Fault codeault codeault code | |||
| Audible Alarm | Bypass, battery mode, Battery low, Overload, Fault | ||||
| Acoustic Noise | At 1 Meter Distance | <55dB55dB | |||
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/3000, Linux, Sun network , IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX, MAC | |||
| SNMP (Optional) | Power management from SNMP manager and web browser | ||||
| USB (Optional) | Windows family software and Mac OS | ||||
| Environmental | Operating Temperature | 0~40ºCordm;Cordm;C | |||
| Operating Humidity | 20-90% (No condensation ) | ||||
| Weight | Net weight (kgs) | 59 | 60.5 | 20 | 21.5 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*240*490 | ||
