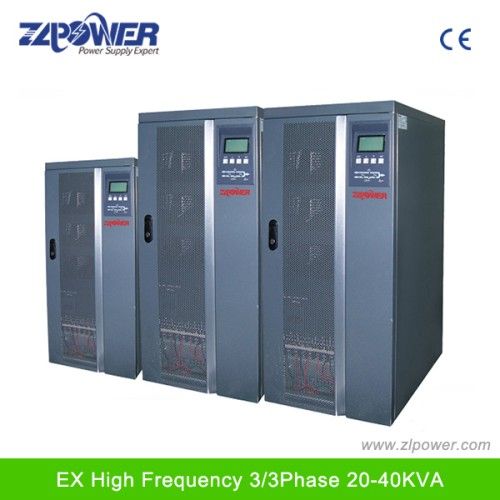

Three Phase Industry UPS 10kVA-80kVA
Product capability
The Industry HP33 Series is online UPS that adopts double-switch structure and 3-phase high frequency. The series product is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation. Industry HP33 series UPS provide customers safe and sound power supply.
Technical parameter
Each single phase of the Industry HP33 series UPS is converted to DC through an individual PFC circuit and then transferred to AC through Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In addition, the controlling of battery charging can extend the battery's serve lifetime effectively and the twin-channel line input improves the system's reliability. Furthermore, the series product is enhanced The CPU- controlled advanced intelligent charging of battery enables the UPS's charger to rectify the charging parameter, and provide the optimum charging modes in the answer to the environment, types and amounts of cells, and the using High-efficient DSP chip
The digital Ti DSP controlling chip provides precise data processing capability with excellent performance in output and reliability.
Outstanding electric property
The efficiency of the machines is as high as 93% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.
The series UPS is designed to China's power grid with a broader range of input voltage from 210VAC to 475VAC, which ensures that it can be applicable in the awful grid environment or different power supple equipment like generator with its extraordinary input frequency.
The factor that the technology of IGBT FM intelligent rectifier and inverter is used, the input power factor is as high as 0.99, and the input current harmonic wave is as low as 3% makes the output voltage electric property more extraordinary.
Powerful overload capacity: The UPS can work normally under the condition of 110-125% load to 10 minutes, and 1 minute in the condition of; 125-150 load. It also has the output short protection capability.
Flexible battery arrangement
Flexible arrangement of the amount of accumulators in each battery (32, 30, or 28) can be achieved through the parameter resetting in the Industry HP33 series UPS, which effectively
