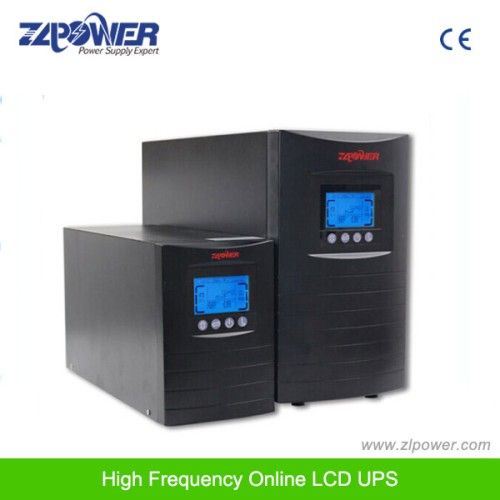

High Frequency Online UPS (EX 1K-3K)
bargain
add to cart| Model NO. | EX 1K-3K |
| Type | On-line |
| Wave Form | Pure Sine Wave |
| Trademark | ZLPOWER |
| Origin | China |
| Phase | Single Phase |
| Protection | Short Circuit |
| Battery Type | Sealed Free Maintenance Lean Acid Battery |
| Specification | CE |
| HS Code | 8504402000 |
High Frequency Online UPS
UPS: LCD UPS with Pure Sine Wave, AVR, SWMP Slot, Dynamic Bypass, and IEEE Protection UPS, Uninterruptiable power supply
UPS IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
High frequency pure sine wave online UPS 1kVA-3kVA, with cold start and self test when start function
Large LCD Display for Detailed UPS Status and history record of the UPS
True on-line double conversion technology
Microprocessor control guarantees high reliability
Equipped with Boost and Buck AVR to stabilize input voltage
Built-in DC start function enables UPS to be started up without AC power supplied.
Smart RS-232 Communication Port with Free Download Software from the Internet.
User-Replaceable Battery Design.
Auto charge even though UPS is off.
Auto restart while AC recovery.
Provides Modem/Phone line Surge Protection.
Provides Discharge, Overcharge, and Overload Protection.
USB or SNMP card for internet remote control the UPS
APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive Electronic equipment, Telecom.
UPS: LCD UPS with Pure Sine Wave, AVR, SWMP Slot, Dynamic Bypass, and IEEE Protection UPS, Uninterruptiable power supply
UPS IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
High frequency pure sine wave online UPS 1kVA-3kVA, with cold start and self test when start function
Large LCD Display for Detailed UPS Status and history record of the UPS
True on-line double conversion technology
Microprocessor control guarantees high reliability
Equipped with Boost and Buck AVR to stabilize input voltage
Built-in DC start function enables UPS to be started up without AC power supplied.
Smart RS-232 Communication Port with Free Download Software from the Internet.
User-Replaceable Battery Design.
Auto charge even though UPS is off.
Auto restart while AC recovery.
Provides Modem/Phone line Surge Protection.
Provides Discharge, Overcharge, and Overload Protection.
USB or SNMP card for internet remote control the UPS
APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive Electronic equipment, Telecom.
| UPS Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | ||||
| Input | Voltage | (115~300) VAC | |||||
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) | ||||||
| Output | Voltage | 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)D panel)D panel) | |||||
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%)n; 0.2%)n; 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1± 0.2%)n; 0.2%)n; 0.2%) | ||||||
| Output Wave Form | Sine Wave | ||||||
| UPS Back-up Time | Full Load | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank | ≥ 9′; 9′prime;; 9′ | Depends on the capacity of the external battery bank | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥ 14′ 14′prime; 14′ | ≥ 21′ 21′prime; 21′ | ≥ 15′ 15′prime; 15′ | ||||
| Battery Nominal DC Voltage | 36VDC | 96VDC | |||||
| Transfer Time | 0ms | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | ||||||
| Communications | RS-232+Intelligent Slot | ||||||
| Environment | Temperature | 0C~40C | |||||
| Humidity | 15%~90% | ||||||
| Dimensions (W*D*H) mm | 145*400*220 | 192*460*348 | |||||
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 | |
