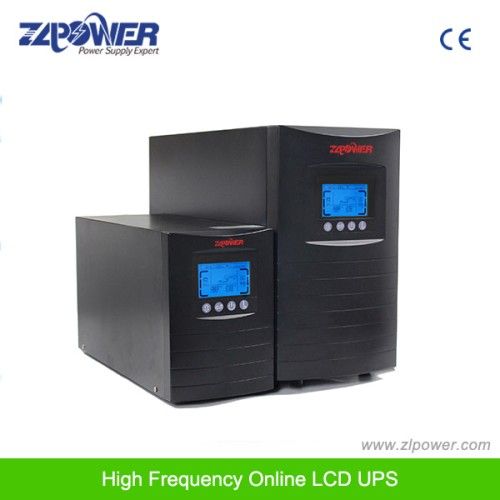

UPS, Power, Intelligent Long Backup Online UPS Power

UPS, Power, Intelligent Long Backup Online UPS Power

112 USD

add to cart
Model NO. EX1kva-EX3kva
Type On-line
Application Industry
Standby Time Standard Machine
Output Capacity Small Type
Brand Zlpower
Area AC to AC Protection
Package Standard Package
Origin China
Phase Single Phase
Protection Overload, Short Circuit, Overcurrent, Overvoltage
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Models Ex1kVA Ex2kVA Ex3kVA
Usage UPS
Trademark ZLPOWER
UPS Power, Intelligent Long backup Online UPS Power
1: UPS Power Capacity for 1K, 3K, 6K, 10K, 15K, 20kVA
2: Self test while UPS Start
3: Long Run UPS Model
4: With UPS SNMP Card Slot
4: LCD Online UPS with Single Phase 1K-10kVA, Three Phase In, Single Phase out for UPS 10K-20kVA
UPS Power APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...
KEY FEATURES
1: True on-line double conversion technology with advanced microprocessor control
2: Wide input voltage range
3: Zero transfer time
4: Protection against all type of power problems, Like: Power sags, high voltage spikes, switching transients, power surges, noise, frequency variation, brownout. Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvoltage
5: Self test while start of the UPS
6: Site wiring fault warning
7: On-battery power-on function
8: Smart RS232 and USB communication interface
9: Intelligent SNMP Card slot available
10: Built-in Sealed lead acid, maintenance free battery
11: Pure sine wave output
12: Single Phase In/Out for UPS 1-10kVA, Three Phase In and Single Phase out for UPS10-20kVA
13: Large LCD Display Large blue back light LCD for detailed real-time UPS status display
14: Microprocessor control guarantees high reliability
15: Comprehensive self-protection design
16: Audible alarm mute
17: Cold start function
18: Auto self-testing system while turning on UPS
19: Maintenance bypass switch for 6k to 20K
20: N + X parallel redundancy and capacity expansion for 6k to 20K
21: MCU (Freescale) +IGBT+DSP (TI) technology and double conversion structure
UPS Model EX1K EX1KL EX2K EX2KL EX3K EX3KL
Capacity 1000VA/800W 2000VA/1600W 3000VA/2400W
Input Voltage (115~300)VAC
Frequency 46~54Hz/56~64Hz
Output Voltage 220/230/240 (1± 1%) VAC 1%) VAC 1%) VAC
Frequency 50/60Hz (Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%)n; 0.2%)n; 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz), Battery Mode: 60Hz (1± 0.2%)n; 0.2%)n; 0.2%)
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 5′; 5′prime;; 5′ Depends on the capacity of the external battery bank ≥ 9′; 9′prime;; 9′ Depends on the capacity of the external battery bank ≥ 5′; 5′prime;; 5′ Depends on the capacity of the external battery bank
Half Load ≥ 14′ 14′prime; 14′ ≥ 21′ 21′prime; 21′ ≥ 15′ 15′prime; 15′
BatteryNominal DC Voltage 36VDC 96VDC
Transfer Time 0ms
Overload Capacity 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications RS-232+Intelligent Slot
Environment Temperature 0~40 Centigrade
Humidity 15%~90%
Dimensions (W*D*H) mm 145*400*220 192*460*340
Net Weight (Kg) 14 7 34 13.5 34.5 14
