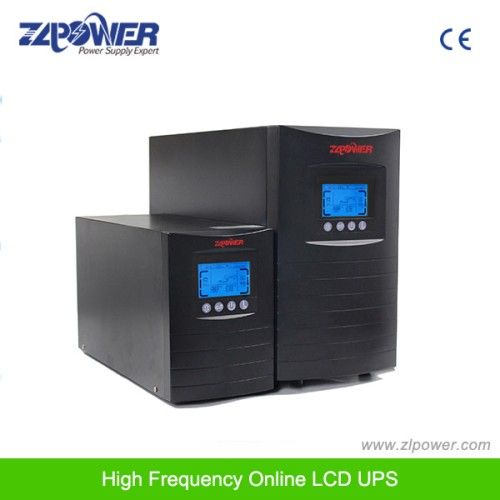

1kVA~3kVA True Online UPS Power
| Model NO. | EX1K-EX3KL |
| Type | High Frequency Online UPS |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Zlpowr,OEM |
| Input Phase | Single Phase with Ground |
| Output Power Factor | 0.7/0.8 |
| AC Mode Efficiency | 85% |
| Current Crest Ratio | 3:1 |
| Operating Humudity | 20-90% Non-Condensing |
| Specification | CE, ISO9001 |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Cold Start, Surge Protection |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Nominal Capacity | 1kVA~3kVA |
| Wave | Pure Sine Wave |
| Frequency | 220,230,240V |
| Battery Mode Efficiency | 83% |
| Operating Temperature | 0-40centi-Degree |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |
1KVA~3KVA true Online UPS Power
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
UPS APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...
UPS KEY FEATURES:
High frequency tower UPS 1KVA-3KVA, with cold start and self test when start function, larger LCD display
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
UPS APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...
UPS KEY FEATURES:
High frequency tower UPS 1KVA-3KVA, with cold start and self test when start function, larger LCD display
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
| UPS power supplier Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | ||||
| Input | Voltage | (115~300) VAC | |||||
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) | ||||||
| Output | Voltage | 220/230/240 (1± 1%) VAC (Adjustable via LCD panel)D panel)D panel) | |||||
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)1± 0.2%); 0.2%)1± 0.2%) | ||||||
| Output Wave Form | Sine Wave | ||||||
| Back-up Time | Full Load | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank | ≥ 9′; 9′prime;; 9′ | Depends on the capacity of the external battery bank | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥ 14′ 14′prime; 14′ | ≥ 21′ 21′prime; 21′ | ≥ 15′ 15′prime; 15′ | ||||
| Battery Nominal DC Voltage | 36VDC | 96VDC | |||||
| Transfer Time | 0ms | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | ||||||
| Communications | RS-232+Intelligent Slot | ||||||
| Environment | Temperature | 0C~40C | |||||
| Humidity | 15%~90% | ||||||
| Dimensions (W*D*H)mm | 145*400*220 | 192*460*340 | |||||
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 | |
