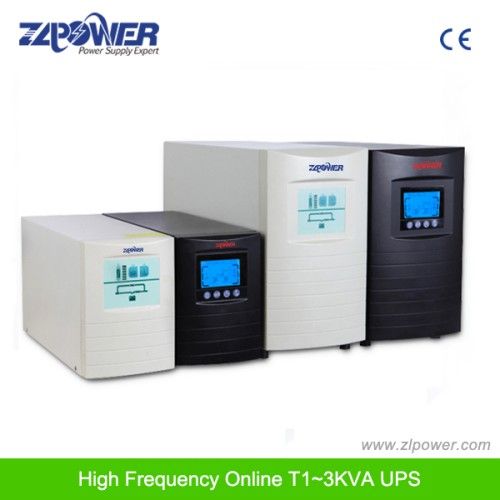

Sua Smart-UPS Online UPS, Household Single Phase UPS, DC 36VDC Pfc &IGBT UPS, UPS 1kVA-20kVA with External Battery
Sua Smart-UPS Online UPS, Household Single Phase UPS, DC 36VDC Pfc &IGBT UPS, UPS 1kVA-20kVA with External Battery
| Model NO. | UPS 1KVA-20KVA |
| Type | On-line |
| Application | Industry |
| Standby Time | Standard Machine |
| Output Capacity | Large Type |
| Brand | OEM |
| Recharge Time | 5 Hours to 90% of Capacity Full Lo |
| Backup | Standard and Long Backup for Choise |
| Output Voltage | 110V, 220V, 230V, 240V |
| Trademark | ZLPOWER |
| Origin | China |
| Phase | Single Phase |
| Protection | Overcurrent |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Interface | Smart RS-232, USB Port Option, Dry-Contact |
| Transfer Time | Without Transfer Time |
| Battery | Free Maintenance Sealed Lead Acid Batter |
| Distritutor and Agent Available | CE Approved |
| Specification | CE |
| HS Code | 8504402000 |
SUA Smart-UPS online UPS, household single phase UPS, DC 36VDC PFC &IGBT UPS, UPS 1kVA-20kVA with external batteryatteryttery
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
High frequency online UPS LCD display
Pure sine wave output
Built in 36/96VDC battery
SNMP/USB/RS232 port
1kVA-20kVA UPS
Application:
EX Series 1kVA~3kVA single phase online UPS power supply is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features- Single phase online UPS 1kVA to 6kVA
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability
Available to work with generators.
Surge, short circuit, Network/fax/modem surge protection
Specifications- High quality household single online DC PFC &IGBT UPS 1kVA-20kVA with external batteryatteryttery
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
High frequency online UPS LCD display
Pure sine wave output
Built in 36/96VDC battery
SNMP/USB/RS232 port
1kVA-20kVA UPS
Application:
EX Series 1kVA~3kVA single phase online UPS power supply is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features- Single phase online UPS 1kVA to 6kVA
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability
Available to work with generators.
Surge, short circuit, Network/fax/modem surge protection
Specifications- High quality household single online DC PFC &IGBT UPS 1kVA-20kVA with external batteryatteryttery
| Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL | |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W | ||||
| Input | Voltage | (115~300) VAC | |||||
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) | ||||||
| Output | Voltage | 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)D panel)D panel) | |||||
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1± 0.2%)1± 0.2%); 0.2%)1± 0.2%) | ||||||
| Output Wave Form | Sine Wave | ||||||
| Back-up Time | Full Load | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank | ≥ 9′; 9′prime;; 9′ | Depends on the capacity of the external battery bank | ≥ 5′; 5′prime;; 5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥ 14′ 14′prime; 14′ | ≥ 21′ 21′prime; 21′ | ≥ 15′ 15′prime; 15′ | ||||
| Battery Nominal DC Voltage | 36VDC | 96VDC | |||||
| Transfer Time | 0ms | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | ||||||
| Communications | RS-232+Intelligent Slot | ||||||
| Environment | Temperature | 0C~40C | |||||
| Humidity | 15%~90% | ||||||
| Dimensions (W*D*H) mm | 145*400*220 | 192*460*340 | |||||
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 | |
