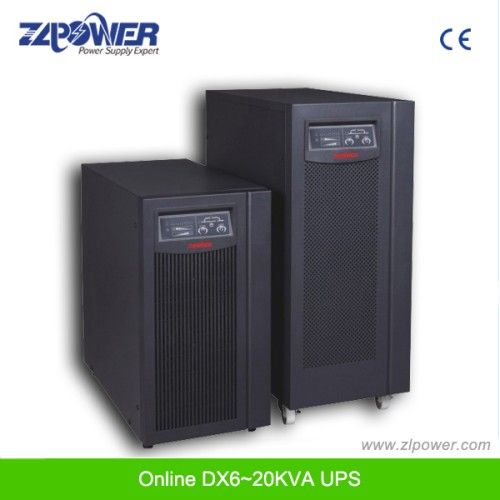

1-200kVA Multiplied Double Conversion Online UPS for Home Industial Use
| Model NO. | 1-200kva |
| Type | Online, Offline, Line Interactive |
| Application | Industry |
| Standby Time | According to The Battery Bank |
| Output Capacity | Large Type |
| Brand | Zlpower |
| Wave Form | Pure Sine Wave |
| Wide Input Voltage Range | 120-275VAC |
| Appliances | Servers, Data Center Critical Network Devices, Se |
| Certificate | CE |
| Snmp Card | Optional |
| Transport Package | Standard Export Carton Package |
| Origin | Shenzhen, China |
| Phase | One Phase, Three Phase |
| Protection | All Protection |
| Classification | Power Supply |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Capacity | 1-200kVA |
| Display | LCD or LED |
| Transfer Time | 0ms |
| Battery Bank | Internal or External |
| True Online Double Conversion Technology | Yes |
| Trademark | ZLPOWER |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8504402000 |
1-200KVA Multiplied Double Conversion Online UPS For Home Industial Use
We are a leading manufacturer and exporter focus on UPS (uninterruptible power supply) and Inverter, Solar products:
1. High frequency online UPS&Rack mount UPS 1KVA-80KVA-80KVA80KVA
2. Low frequency online UPS upto 200KVA
3. Line interactive UPS & Offline UPS for desktop computerputerputer
4. Home Inverter/ Powerstar w7 DC-AC inverter/ Solar Inverter
5. MPPT Solar charge controller 12v/24v 40A
6. Solar battery/ UPS battery/GEL battery
7. Battery Cabinet & UPS SNMP card, AS400 card card card
Our products combine excellent quality (CE certificate)with competitive price, and we can provide any technical support, OEM and ODM for you.
We are a leading manufacturer and exporter focus on UPS (uninterruptible power supply) and Inverter, Solar products:
1. High frequency online UPS&Rack mount UPS 1KVA-80KVA-80KVA80KVA
2. Low frequency online UPS upto 200KVA
3. Line interactive UPS & Offline UPS for desktop computerputerputer
4. Home Inverter/ Powerstar w7 DC-AC inverter/ Solar Inverter
5. MPPT Solar charge controller 12v/24v 40A
6. Solar battery/ UPS battery/GEL battery
7. Battery Cabinet & UPS SNMP card, AS400 card card card
Our products combine excellent quality (CE certificate)with competitive price, and we can provide any technical support, OEM and ODM for you.
| Online UPS MODEL | DX6K | DX10K | DX6KL | DX10KL | DX3110KL | DX3115KL | DX3120KL | |
| CAPACITY | VA/W | 6KVA/4.8KW | 10KVA/8KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| INPUT | Nominal Voltage | 220/230/240VAC | 380VAC | |||||
| Voltage Range | 120-275VAC | 210-475VAC | ||||||
| Frequency Range | 46-64Hz: 50Hz, 60Hz auto sense | |||||||
| Phase | Single phase with Ground | Three phase (4 Wires+Ground) | ||||||
| Power Factor | >=0.99 | >=0.95 | ||||||
| OUTPUT | Voltage | 220/230/240*(1±1%)VACmn;1%)VACn;1%)VAC | ||||||
| Frequency | 50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%)mn;0.1%)mn;0.1%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%)mn;0.1%)mn;0.1%) | |||||||
| Wave Form | Pure Sine Wave | |||||||
| Power Factor | 0.8 | |||||||
| Harmonic Distortion | =<2% THD (Linear Load), =<6% THD (Non-Linear Load)ar Load) | |||||||
| Overload Capacity | Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec0sec | |||||||
| Current Crest Ratio | 3:1 | |||||||
| Connections | Terminal block | |||||||
| Efficiency | To AC Mode | 88% | 85% | |||||
| To Battery Mode | up to 90% | |||||||
| Battery | Type | Sealed free maintenance lead acid battery | ||||||
| Nominal DC voltage | Built in batteries 12v7.2ah*16pcs | 192VDC | 192VDC | |||||
| Quantity | 16pcs | 16pcs | Depends on requested back-up time | Depends on requested back-up time | ||||
| Back-up Time (Full load) | ﹥=7 minutesutes | ﹥=5 minutesutes | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank | ||||
| Recharge Time | 7 hours to 90% | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank | |||||
| Charge current(MAX) | 2.0A | 4.2A or 8A | 4.2A or 8A | |||||
| Charge voltage | 220Vdc ± 1%usmn; 1%usmn; 1% | |||||||
| Bypass | Automatic Transfer | On overload and UPS failure | ||||||
| Before UPS Power-on | Default 'NO' user adjustable to 'YES'le to "YES"t;YES" | |||||||
| Transfer Time | Zero | |||||||
| Indicators | LED Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault codeault codeault code | ||||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | |||||||
| Acoustic noise | At 1 meter distance | <55dB55dB | <60dB60dB | |||||
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC | ||||||
| SNMP (Optional) | Power management from SNMP manager and web browser | |||||||
| USB (Optional) | Windows family software and Mac OS | |||||||
| Environmental | Operating Temperature | 0~40 centi-degree | ||||||
| Operating Humidity | 20~90% ( Non Condensing) | |||||||
| Weight | Net weight (kg) | 57 | 67.5 | 18 | 20 | 27 | 35 | 35 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*248*616 | 500*240*460 | 500*240*460 | 500*248*616 | 500*248*616 | 500*248*616 |
| There are two types: Standard type and Professional type, Professional type is with EPO, online maintenance and other functions. | ||||||||
