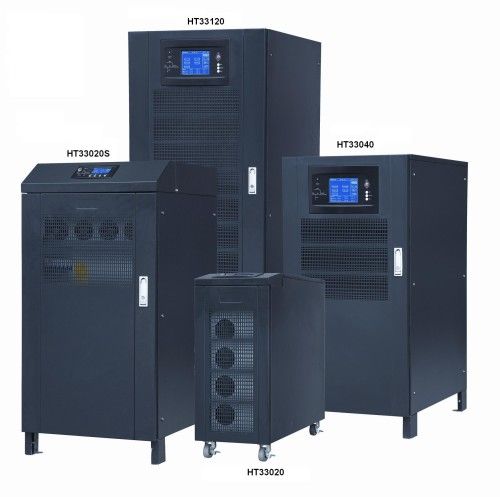

Three phase online UPS 10-200K
Application: ISP(Internet Service Provider), IDC(Internet Data Center), computing center, bank, server center, precise equipment and etc.
Features:
1. Three phase in and out system, compatible with utility of 380/400/415V, 50/60Hz
2. Online double conversion, offering load with best power quality
3. Support all kinds of load, high overload capability
4. Fully digital control with three DSPs including IGBT rectifier, inverter, charger
5. Digital circulating current control technology, increasing the parallel reliability
6. Wide input voltage window, compatible with different utilities
7. Green power technology, high input power factor, low current THD, high efficiency
8. Intelligent battery management, extending battery lifetime
9. Intelligent self-diagnose function, all kinds of fault protection, large capability of history record storage.
10. Full front maintenance, saving space.
11. Redundant design of power model fans, increasing the system reliability
12. Modularized design of subsystem, convenient field maintenance
13. High MTBF(mean time before failure)(﹥200, 000h), low MTTR(mean time to repair)(<0.5h)t;0.5h)
14. Large LCD display, friendly human machine interface
15. Configured with top and bottom cable connection
16. Parallel up to 6 units.
17. All kinds of options include main back feed protection, bypass back feed protection, battery leakage protection, battery start kit, output isolation transformer and lighting protection kit.
