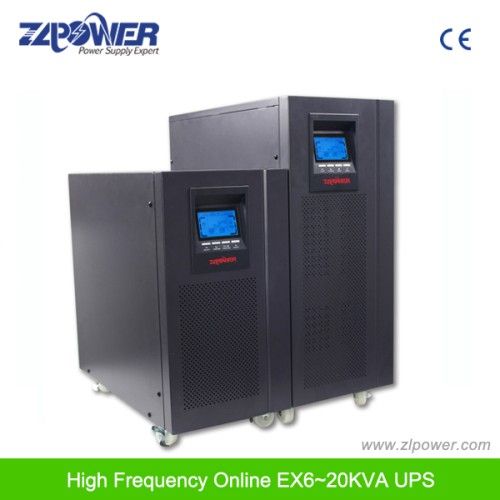

High Frequency Pure Sine Wave Online UPS Power 6kVA~20kVA

High Frequency Pure Sine Wave Online UPS Power 6kVA~20kVA

600-1500 USD

add to cart
Model NO. EX6K~EX3120KL
Type On-line
Capacity 6kVA~20kVA
Freuquency 46~54Hz/56~64Hz
Input Power Factor 0.97
Output Power Factor 0.8
Battery Mode Efficiency 87%
Trademark ZLPOWER
Origin China
Phase Three Phase
Protection Overcurrent
Input Voltage Range 120~275V/210~475V
Input Phase Single Phase with Ground,Three Phase
Wave Form Pure Sine Wave
AC Mode Efficiency 88%
Current Crest Ratio 3:1
Specification CE
HS Code 8504402000
UPS-Large UPS-High Frequency Online UPS-LCD Online UPS Power System6KVA, 10KVA, 15KVA, 20KVA
Product Features
IP/OP: 220/230/240VAC 50/60Hz
IP/OP: 380/220VAC 50Hz/60Hz
APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...
KEY FEATURES:
High frequency online UPS 6-20KVA with IGBT and short circuit protectioni, larger LCD online UPS, pure sine wave
True online double conversion technology
Wide input voltage range
Zero transfer time
Protection against all types of power problems
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power
Sharing and redundancy
Equipped with Maintenance Bypass Switch
Smart RS232 and Intelligent slot interface
Sealed lead-acid, maintenance free battery
Specialty of UTseries:
Nominal voltage, nominal frequency and bypass voltage range can de adjusted via LCD panel.
Contact with Cathy for more details and power solution today.
Product performance
TECHNICAL SPECIFICATION
Model EX6K EX6KL EX10K EX10KL 3EX10KL 3EX15KL 3EX20KL
Capacity 6KVA/4200W 10KVA/7000W 15KVA/10500W 20KVA/14000W
Input Nominal Voltage 220V 380V
Voltage Range 176~276VAC 304~478VAC
Frequency 46~54Hz/56~64Hz (adjustable via LCD panel)
Output Voltage 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)D panel)D panel)
Frequency 50/60Hz (adjustable via LCD panel)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1± 0.2%)n; 0.2%)n; 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)n; 0.2%)n; 0.2%)
Current Crest Ratio 3: 1
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 7'Depends on the capacity of the external batteries bank ≥ 5' Depends on the capacity of the external batteries bankes bankes bank
Half Load ≥ 20'≥ 13'ge; 13'ge; 13'
Battery Nominal Voltage 240VDC
Transfer Time 0ms
Overload Capacity 105%~130% 10min, over 150%1min
Communication RS-232+Intelligent Slot
Operating Environment Temperature 0C~40C
Humidity 15%~90%
Dimensions (W*D*H)mm 260*570*717
Net Weight (Kg) 90 35 93 38 39 55 55
Model EX6K EX6KL EX10K EX10KL 3EX10KL 3EX15KL 3EX20KL
Capacity 6KVA/4200W 10KVA/7000W 15KVA/10500W 20KVA/14000W
Input Nominal Voltage 220V 380V
Voltage Range 176~276VAC 304~478VAC
Frequency 46~54Hz/56~64Hz (adjustable via LCD panel)
Output Voltage 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)D panel)D panel)
Frequency 50/60Hz (adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)1± 0.2%); 0.2%)1± 0.2%)
Current Crest Ratio 3: 1
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 7′; 7′prime;; 7′ Depends on the capacity of the external batteries bank ≥ 5′; 5′prime;; 5′ Depends on the capacity of the external batteries bank
Half Load ≥ 20′ 20′prime; 20′ ≥ 13′ 13′prime; 13′
Battery Nominal Voltage 240VDC
Transfer Time 0ms
Overload Capacity 105%~130% 10min, over 150%1min
Communication RS-232+Intelligent Slot
Operating Environment Temperature 0C~40C
Humidity 15%~90%
Dimensions (W*D*H)mm 260*570*717
Net Weight (Kg) 90 35 93 38 39 55 55
