Googol Qta4320-G5 Diesel Engine

140000-200000 USD

Model NO.	QTA4320
Speed	High Speed
Intake Pressure Impulse	Supercharged
Fuel	Diesel, Diesel Engine
Cylinder Arrangement Form	V
Certificate	ISO9001, CE, SGS, TUV
Prime Output	1958kw @1500rpm
Trademark	Googol
Origin	China
Ignition Mode	Ignition
Cooling Cylinder	Water-Cooled
Piston Movement	Reciprocating
Number of Strokes	Four-Stroke
Number of Cylinders	Multi-Cylinder Machines
Model	Qta4320-G5
Electrical Generator Capacity	2250kVA
Specification	ISO3046, ISO8528
HS Code	8408909390

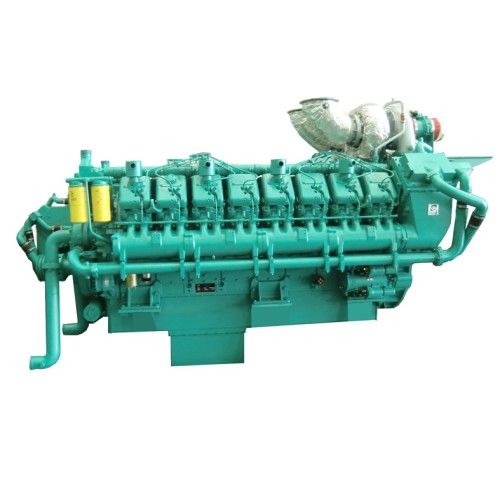

QTA4320-G5 Googol diesel engine:
Prime Output: 1958kW @1500rpm
Standby Output: 2169kW @1500rpm
Displacement: 70.8L
Speed: 1500rpm or 1800rpm
Governor: Electrics
Cooling System: Fan with Radiator
Flywheel: SAE-00
Four Stroke
Bore*Stroke: 170*195

Standard engine … … … .p; … … .ip; … .p; … … .	V-16 engine
Flywheel … … … … … … ...ip; … … … … ...ellip; … … ...ip; … … … … ...	Flywheel for 21' connectionnection Teeth of flywheel: 218 J = 5.1 kgm²²sup2;²
Adaptor housing… … … ... … … ...; … ... … … ...	SAE 00 housing
Governor … … … … … … ...ip; … … … … ...ellip; … … ...ip; … … … … ...	Electronic governor
Cooling system… … … …p; … … …ip; … …p; … … …	Air-to-water intercooler Fan blade Separate mounted radiator (optional) Heat exchanger is optional
Exhaust system… … … ... … … ...; … ... … … ...	2 Turbocharger with counter flange Without exhaust silencer
Filter … … … … … … … … .; … … … … … … .lip; … … … … .; … … … … … … .	2 air cleaner with restriction indicator Fuel twin cartridge filter 5 lube oil filter and 2 bypass oil filter
Electrics system… … … ... … … ...; … ... … … ...	Electric starter motor 9kW, 24VDC Starting relay, 24V Charging alternator 55A, 28VDC Oil pressure sensor with switch Coolant temperature sensor with switch Speed sensor for governor Lube oil pre-supply pump
Miscellaneous … … … … . … … … .; … … . … … … .	Green painting as standard 1 operation manual Without tool box
