Pta780-G1 Diesel Engine 360kVA
| Model NO. | Honny Power Series |
| Speed | High Speed |
| Intake Pressure Impulse | Supercharged |
| Fuel | Diesel, Diesel Engine |
| Cylinder Arrangement Form | V |
| Certificate | ISO9001, CE, SGS, TUV |
| Prime Output | 360kVA @1500rpm |
| Specification | ISO3046, ISO8528 |
| HS Code | 8408909390 |
| Ignition Mode | Ignition |
| Cooling Cylinder | Water-Cooled |
| Piston Movement | Reciprocating |
| Number of Strokes | Four-Stroke |
| Number of Cylinders | Multi-Cylinder Machines |
| Model | Pta780-G1 |
| Trademark | Googol |
| Origin | China |

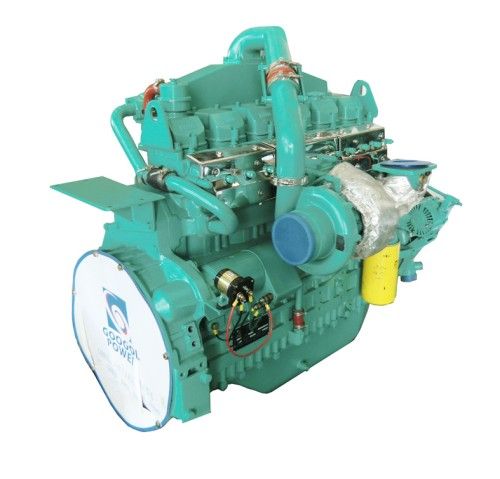

PTA780-G1 Googol diesel engine:
Prime Output: 300kW @1500rpm 360kVA
Standby Output: 330kW @1500rpm
Displacement: 12.8L
Speed: 1500rpm or 1800rpm
Governor: Electrics
Cooling System: Fan with Radiator
Flywheel: SAE-1
Four Stroke
Bore*Stroke: 128*166
Prime Output: 300kW @1500rpm 360kVA
Standby Output: 330kW @1500rpm
Displacement: 12.8L
Speed: 1500rpm or 1800rpm
Governor: Electrics
Cooling System: Fan with Radiator
Flywheel: SAE-1
Four Stroke
Bore*Stroke: 128*166
| Generator set | Genset Model | HGM343 | HGM358 | |
| Rating Power (kW/kVA) | 250/312.5 | 260/325 | ||
| Standby Power(kW/kVA) | 275/343 | 286/358 | ||
| System Voltage | 400/230 | 400/230 | ||
| Rating Ammeter(A) | 451 | 469 | ||
| Diesel engine | General data | Engine model | PTA780-G1 | PTA780-G1 |
| Prime Power(kW) | 290 | 290 | ||
| Standby Power(kW) | 330 | 330 | ||
| number of Cylinder & Configurationationation | 6 cylinders in line | 6 cylinders in line | ||
| Bore X Stroke (mm) | 128X166 | 128X166 | ||
| Displacement(l) | 12.8 | 12.8 | ||
| Compression Ratio | 15.5:1 | 15.5:1 | ||
| Governor type | Electronic governor | Electronic governor | ||
| Rated speed(rpm) | 1500 | 1500 | ||
| Exhaust system | Exhaust gas flow(m³/min);/min);/min) | 54 | 56 | |
| Exhaust gas temperature (ºC)rdm;C)rdm;C) | 480 | 480 | ||
| Max. exhaust back pressure(kPa) | 10 | 10 | ||
| Air intake system | Aspiration Type | Turbocharged & After cooledooledooled | Turbocharged & After cooledooledooled | |
| Max. intake depression(mbar) | 6 | 6 | ||
| Combustion air Volume(m³/min);/min);/min) | 21 | 21 | ||
| Fuel system | Rating Fuel Consumption(l/h) | 64 | 67 | |
| 75% full Fuel Consumption(l/h) | 48 | 50 | ||
| Lubrication system | Total oil capacity(l) | 40 | 40 | |
| Max permissible oil temp (ºC)rdm;C)rdm;C) | 110 | 110 | ||
| Oil pressure at rated rpm(KPA) | 240-350 | 240-350 | ||
| Cooling system | Total Coolant capacity(l) | 65 | 65 | |
| Max. temperature of coolant (ºC)rdm;C)rdm;C) | 100 | 100 | ||
| Fan cooling air flow(m³/min);/min);/min) | 490 | 490 | ||
| Alternator | Alternator model | MGA315-250-4S | MGA315-260-4S | |
| Rating Voltage(V) | 400/230 | 400/230 | ||
| Rating Capacity(KW/KVA) | 250/312.5 | 260/325 | ||
| Eff.% | 93.20% | 93.50% | ||
| Power Factor | 0.8 | 0.8 | ||
| Exciting type | Brushless self-exciter AVR | Brushless self-exciter AVR | ||
| Voltage regulation | ±1%lusmn;1%lusmn;1% | ±1%lusmn;1%lusmn;1% | ||
| No. of Phase | 3 phase 4 wire | 3 phase 4 wire | ||
| Enclosure Class | IP121 | IP121 | ||
| Class of Insulation | H | H | ||
| Battery | Rating Capacity(AH) | 2X150AH 12V | 2X150AH 12V | |
| Dimension | Generator set dimension (LXWXH) | 2900x1120x1550 | 2900x1120x1550 | |
| Weight | Generator set Net Weight (kg) | 2380 | 2400 | |
