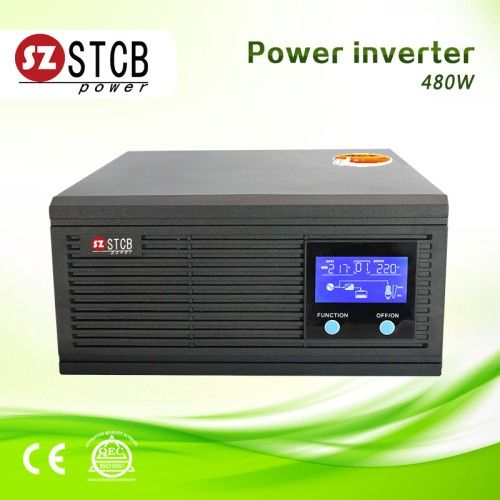

Small Size Power Inverter 600va/480W 12V 220V
| Model NO. | sk12 600va |
| Certification | ISO9001, CE |
| Nature of Wave String | Sine Wave Inverter |
| Input Coltage Range | 175V-285V AC |
| Unit Dimension | 290*255*120mm |
| Output Frequency | 50Hz/60Hz |
| Charge Current | 12-15A |
| Trademark | SKE/STCB/Neutral |
| Origin | Gunagzhou Shenzhen |
| Nature of Source Flow | Passive inverter |
| Output Power | 401 - 500W |
| Type | DC/AC Inverters |
| Output Voltage | 220V AC +/- 5% |
| Weight | 10kg |
| DC Voltage | 12V |
| Warrenty | 1 Year |
| Transport Package | 1PCS/Color Box, with Outside Cartons |
| HS Code | 8504403090 |
small size power inverter 600va/480w 12v 220v
Features:
1,Super wide input voltage range,strong ability to adapt to the environment
2,Stable output voltage(pure sine wave output),can be applied to all electrical equipment
3,LCD display with plenty content
4,CPU controlled
5,Fast transfer time,high efficiency
6,Intelligent battery management,prolonging the service life of the battery
7,Low battery,overload short circuit,over temperature protections
Specifications:
Our services:
1. OEM&ODM services acceptable.able.able.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free.
FAQ:
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be developed within 45-60days.
Features:
1,Super wide input voltage range,strong ability to adapt to the environment
2,Stable output voltage(pure sine wave output),can be applied to all electrical equipment
3,LCD display with plenty content
4,CPU controlled
5,Fast transfer time,high efficiency
6,Intelligent battery management,prolonging the service life of the battery
7,Low battery,overload short circuit,over temperature protections
Specifications:
| Model | SK12-500 | SK12-600 | SK12-800 | SK12-1000 | SK12-1200 | SK12-1500 | SK12-2000 |
| Rated Capacity(W) | 400W | 480W | 640W | 800W | 1000W | 1200W | 1600W |
| Battery Voltage | 12V/24V | ||||||
| AC Input | |||||||
| Voltage | 145V~275V / 85V~145V | ||||||
| Frequency | 45Hz~65Hz | ||||||
| AC Output | |||||||
| Voltage | 110V±3% / 220V±3%(Battery mode)%(Battery mode)%(Battery mode) | ||||||
| Frequency | 50/60Hz±0.5usmn;0.5usmn;0.5 | ||||||
| Output Waveform | Pure sine wave | ||||||
| Total Harmonic Distortion(THD) | ≤±3%;±3%usmn;3%;±3% | ||||||
| Battery Recharge Current | 10A-20A(Adjustable) | ||||||
| Display | LCD | ||||||
| Transfer Time | <4ms;4ms | ||||||
| Enviorment | |||||||
| Noise | ≤55dB55dB55dB | ||||||
| Temperature | 0ºC~40ºCC~40ºCrdm;CC~40ºC | ||||||
| Humidity | 10%~90%(no condense) | ||||||
| Efficiency | ≥85%;85%;85% | ||||||
| Protection | |||||||
| Over-load | Overload exceeds 110%,automatic shutdown in 30 secs; Overload exceeds 120%,automatic shutdown in 2 secs; Under mains power mode,just keeping alarm but not shut down. | ||||||
| short-circuit | Output short-circuit,automatic shutdown after keeping sound 20 secs | ||||||
| battery | high & low voltage protectionectionction | ||||||
| Reverse polarity | reverse polqrity protection(optional) | ||||||
| Physical | |||||||
| Unit dimension (mm) | 290*255*120 | ||||||
| Weight(NET) | 7KG | 8.5KG | 10KG | 11KG | 13.5KG | 15KG | 20KG |
| Alarm | |||||||
| Bat.mode | Without alarm sound if work normally under mains supply mode, when mains supply cut off, turn into battery mode, keeping sound 4 times every 30 seconds. | ||||||
| Bat. low voltage | Keeping sound every seconds when Battery low voltage; sharp sound under machine fault. | ||||||
| Overload | Keeping sound every seconds under Overload | ||||||
| * Product specifications are subject to change without further notice | |||||||
Our services:
1. OEM&ODM services acceptable.able.able.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free.
FAQ:
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be developed within 45-60days.
