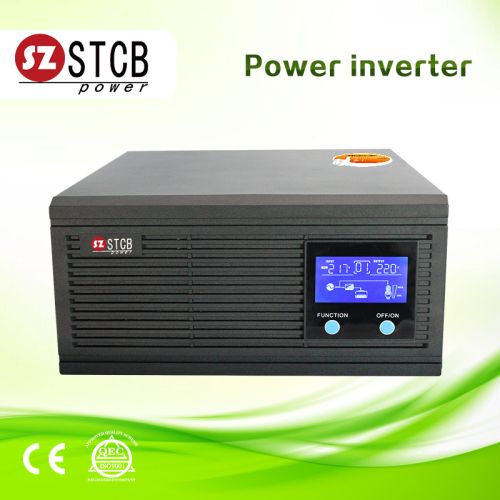

DC to AC Power Inverter 12V 24V Battery Voltage

DC to AC Power Inverter 12V 24V Battery Voltage

55-265 USD

add to cart
Model NO. sk12 INVERTER
Output Power >1000W
Type DC/AC Inverters
Output Voltage 110V/220V AC +/- 5%
Weight 8-20kg
Charge Current 10~20A
Warrenty 12 Months
Transport Package 1PCS/Color Box, with Outside Cartons
HS Code 8504403090
Certification ISO9001
Nature of Wave String Sine Wave Inverter
Input Coltage Range 85V~145V / 175V-285V AC
Unit Dimension 290*255*120mm
Output Frequency 50Hz/60Hz
DC Voltage 12V/24V
Trademark SKE/STCB/Neutral
Origin Gunagzhou Shenzhen
DC to AC Power Inverter 12V 24V battery voltage
Features:
1,Super wide input voltage range,strong ability to adapt to the environment
2,Stable output voltage(pure sine wave output),can be applied to all electrical equipment
3,LCD display with plenty content
4,CPU controlled
5,Fast transfer time,high efficiency
6,Intelligent battery management,prolonging the service life of the battery
7,Low battery,overload short circuit,over temperature protections
Specifications:

Model
SK12-500
SK12-600
SK12-800
SK12-1000
SK12-1200
SK12-1500
SK12-2000

Rated Capacity(W)
400W
480W
640W
800W
1000W
1200W
1600W

Battery Voltage
12V/24V

AC Input

Voltage
145V~275V / 85V~145V

Frequency
45Hz~65Hz

AC Output

Voltage
110V±3% / 220V±3%(Battery mode)%(Battery mode)%(Battery mode)

Frequency
50/60Hz±0.5usmn;0.5usmn;0.5

Output Waveform
Pure sine wave

Total Harmonic Distortion(THD)
≤±3%;±3%usmn;3%;±3%

Battery Recharge Current
10A-20A(Adjustable)

Display
LCD

Transfer Time
<4ms;4ms

Enviorment

Noise
≤55dB55dB55dB

Temperature
0ºC~40ºCC~40ºCrdm;CC~40ºC

Humidity
10%~90%(no condense)

Efficiency
≥85%;85%;85%

Protection

Over-load
Overload exceeds 110%,automatic shutdown in 30 secs;
Overload exceeds 120%,automatic shutdown in 2 secs;
Under mains power mode,just keeping alarm but not shut down.

short-circuit
Output short-circuit,automatic shutdown after keeping sound 20 secs

battery
high & low voltage protectionectionction

Reverse polarity
reverse polqrity protection(optional)

Physical

Unit dimension (mm)
290*255*120

Weight(NET)
7KG
8.5KG
10KG
11KG
13.5KG
15KG
20KG

Alarm

Bat.mode
Without alarm sound if work normally under mains supply mode,
when mains supply cut off, turn into battery mode,
keeping sound 4 times every 30 seconds.

Bat. low voltage
Keeping sound every seconds when Battery low voltage;
sharp sound under machine fault.

Overload
Keeping sound every seconds under Overload

* Product specifications are subject to change without further notice
