LCD Display 1000va/800W UPS Inverter for Computer, TV, Fan, Lamp
| Model NO. | SK12 inverter |
| Output Power | >1000W |
| Type | DC/AC Inverters |
| Output Voltage | 110V/220V AC +/- 5% |
| Weight | 12.5kg |
| Charge Current | 10A |
| Battery Type | Lead-Acid Batteries |
| Trademark | STCB/Neutral |
| Origin | Gunagzhou Shenzhen |
| Certification | ISO9001 |
| Nature of Wave String | Sine Wave Inverter |
| Input Coltage Range | 85V~145V / 175V-285V AC |
| Unit Dimension | 290*255*120mm |
| Output Frequency | 50Hz/60Hz |
| DC Voltage | 12V |
| Warrenty | 1 Year |
| Transport Package | 1PCS/Color Box, with Outside Cartons |
| HS Code | 8504403090 |

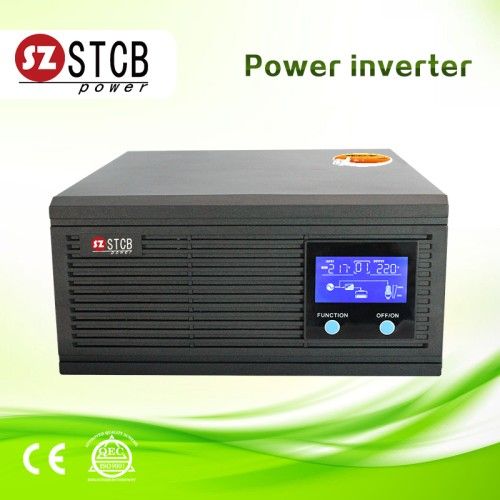

LCD Display 1000va/800w ups inverter for computer,TV,fan,lamp
Features:
1,Super wide input voltage range,strong ability to adapt to the environment
2,Stable output voltage(pure sine wave output),can be applied to all electrical equipment
3,LCD display with plenty content
4,CPU controlled
5,Fast transfer time,high efficiency
6,Intelligent battery management,prolonging the service life of the battery
7,Low battery,overload short circuit,over temperature protections
Specifications:
Features:
1,Super wide input voltage range,strong ability to adapt to the environment
2,Stable output voltage(pure sine wave output),can be applied to all electrical equipment
3,LCD display with plenty content
4,CPU controlled
5,Fast transfer time,high efficiency
6,Intelligent battery management,prolonging the service life of the battery
7,Low battery,overload short circuit,over temperature protections
Specifications:
| Model | SK12-500 | SK12-600 | SK12-800 | SK12-1000 | SK12-1200 | SK12-1500 | SK12-2000 |
| Rated Capacity(W) | 400W | 480W | 640W | 800W | 1000W | 1200W | 1600W |
| Battery Voltage | 12V/24V | ||||||
| AC Input | |||||||
| Voltage | 145V~275V / 85V~145V | ||||||
| Frequency | 45Hz~65Hz | ||||||
| AC Output | |||||||
| Voltage | 110V±3% / 220V±3%(Battery mode)%(Battery mode)%(Battery mode) | ||||||
| Frequency | 50/60Hz±0.5usmn;0.5usmn;0.5 | ||||||
| Output Waveform | Pure sine wave | ||||||
| Total Harmonic Distortion(THD) | ≤±3%;±3%usmn;3%;±3% | ||||||
| Battery Recharge Current | 10A-20A(Adjustable) | ||||||
| Display | LCD | ||||||
| Transfer Time | <4ms;4ms | ||||||
| Enviorment | |||||||
| Noise | ≤55dB55dB55dB | ||||||
| Temperature | 0ºC~40ºCC~40ºCrdm;CC~40ºC | ||||||
| Humidity | 10%~90%(no condense) | ||||||
| Efficiency | ≥85%;85%;85% | ||||||
| Protection | |||||||
| Over-load | Overload exceeds 110%,automatic shutdown in 30 secs; Overload exceeds 120%,automatic shutdown in 2 secs; Under mains power mode,just keeping alarm but not shut down. | ||||||
| short-circuit | Output short-circuit,automatic shutdown after keeping sound 20 secs | ||||||
| battery | high & low voltage protectionectionction | ||||||
| Reverse polarity | reverse polqrity protection(optional) | ||||||
| Physical | |||||||
| Unit dimension (mm) | 290*255*120 | ||||||
| Weight(NET) | 7KG | 8.5KG | 10KG | 11KG | 13.5KG | 15KG | 20KG |
| Alarm | |||||||
| Bat.mode | Without alarm sound if work normally under mains supply mode, when mains supply cut off, turn into battery mode, keeping sound 4 times every 30 seconds. | ||||||
| Bat. low voltage | Keeping sound every seconds when Battery low voltage; sharp sound under machine fault. | ||||||
| Overload | Keeping sound every seconds under Overload | ||||||
| * Product specifications are subject to change without further notice | |||||||
