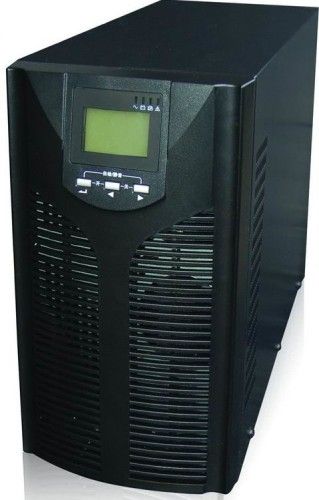

CE Certified, Online High Frequency UPS, Ea900II, LVD, EMC, 120V/220V Available
bargain
add to cart| Model NO. | EA900II 2KVA long back up model or standard model |
| Type | On-line |
| Application | Communication |
| Standby Time | Long-acting Machine |
| Output Capacity | Medium Type |
| Brand | East |
| Specification | CE, LVD, EMC |
| HS Code | 850440 |
| Phase | Single Phase |
| Protection | Overvoltage |
| Classification | Online High Frequency UPS |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Standard Type or Long Back up Type |
| Trademark | EAST, OEM |
| Origin | Dongguan China |
Online HF UPS EA900 II series 1kVA ~ 10kVA is EAST new generation UPS, we adopt the latest R & D achievements and application experience. With advanced DSP digital control technology, it improves performance& system reliability effectively, and achieves higher level of power density and miniaturization. Besides that, to meet all customer's individualized needs, as a high-end small power range online UPS, EA900 II can offer highly reliable power for departmental servers, small local area networks, workstations, industrial machines, small medical equipment, and other small precision electronic devicesic devicesc devices
Ideal Apllication
Centralized server center, mainframe, network control center, computing center
Features&Benefitsnefitsefits
High frequency and true double-conversion
DSP digital control technology
Input power factor correction (PFC)
Wide input voltage range (110V-300V)
Output power factor 0.9/0.8
Optimized Battery configuration
1K-24V/36V,2K-48V/72V,3K-72V/96V
Code start
Frequency adaptive
ECO mode operation for energy saving
Selectable output voltage via LCD
Output bypass settable for 1,2,3KVA via LCD
50Hz/60Hz frequency converter mode available on 6-10KVA
Selectable battery low voltage via LCD
Automatically diagnose when starts
Advanced battery management (ABM)
Short circuit and overload protection
Automatically charging battery at UPS off mode
Fan speed auto control when load varies
Standard RS232 communication port and RJ45 protection
Optional USB/SNMP communication port
Optional emergency power off (EPO)
Optional extension battery bank
Optional built-in isolation transformer
Optional manual bypass on 6-10KVA
Optional N+1 redundancy parallel on 6-10KVA
Ideal Apllication
Centralized server center, mainframe, network control center, computing center
Features&Benefitsnefitsefits
High frequency and true double-conversion
DSP digital control technology
Input power factor correction (PFC)
Wide input voltage range (110V-300V)
Output power factor 0.9/0.8
Optimized Battery configuration
1K-24V/36V,2K-48V/72V,3K-72V/96V
Code start
Frequency adaptive
ECO mode operation for energy saving
Selectable output voltage via LCD
Output bypass settable for 1,2,3KVA via LCD
50Hz/60Hz frequency converter mode available on 6-10KVA
Selectable battery low voltage via LCD
Automatically diagnose when starts
Advanced battery management (ABM)
Short circuit and overload protection
Automatically charging battery at UPS off mode
Fan speed auto control when load varies
Standard RS232 communication port and RJ45 protection
Optional USB/SNMP communication port
Optional emergency power off (EPO)
Optional extension battery bank
Optional built-in isolation transformer
Optional manual bypass on 6-10KVA
Optional N+1 redundancy parallel on 6-10KVA
| MODEL | EA901II | EA902II | EA903II | EA906II | EA9010II | ||||||
| Capacity | 1KVA/900W | 2KVA/1800W | 3KVA/2700W | 6KVA/5400W | 10KVA/9000W | ||||||
| INPUT | |||||||||||
| Rated Voltage | 208V/220V/230V/240VAC | ||||||||||
| VoltageRange | Half load (115-295)±5VACusmn;5VACsmn;5VAC Full load (145-295)±5VACusmn;5VACsmn;5VAC | Half load (115-295)±5VACusmn;5VACsmn;5VAC Full load (165-295)±5VACusmn;5VACsmn;5VAC | |||||||||
| Frequency | 45-55Hz±0.5%or 55-65Hz±0.5% (Auto Sensing)% (Auto Sensing) (Auto Sensing) | 40-70Hz±0.5% (Auto Sensing) Sensing)Sensing) | |||||||||
| Power Factor | ≥0.98;0.980.98 | ≥0.99;0.990.99 | |||||||||
| BypassVoltage Range | Rated output voltage-34V ~ Rated output voltage+32V | 160V ~ Rated output voltage+32V | |||||||||
| OUTPUT | |||||||||||
| Voltage | 208V/220V/230V/240VAC Setting available via LCD | ||||||||||
| Voltage Regulation | ±1%plusmn;1%lusmn;1% | ||||||||||
| Frequency | Synchronized with utility on AC mode;50/60±0.2Hz on battery modetery modeery mode | ||||||||||
| Waveform | Pure sine wave | ||||||||||
| Crest Factor | 3:1 | ||||||||||
| Harmonic Distortion | ≤3%(Linear load);≤5%(Non-linear load)ar load)r load) | ≤2%(Linear load);≤5%(Non-linear load)ar load)r load) | |||||||||
| Transfer Time | AC mode to battery mode :0ms Inverter model to bypass mode:4ms(Typical) | AC mode to battery mode :0ms Inverter model to bypass mode:0ms | |||||||||
| Overload Capability | 105%-150%:Transfer to bypass after 30s; ﹥150%: Transfer to bypass after 300ms300ms | 105%-125%:Transfer to bypass after 3mins; 125%-150%: Transfer to bypass after 30s; ﹥150%: Transfer to bypass after 100ms100ms | |||||||||
| EFFICIENCY | |||||||||||
| AC Mode | ≥90%e;90%;90% | ≥92%e;92%;92% | |||||||||
| BatteryMode | ≥87%e;87%;87% | ≥91%e;91%;91% | |||||||||
| ECO Mode | ≥98%e;98%;98% | ≥98%e;98%;98% | |||||||||
| BATTERY | |||||||||||
| DC Voltage | 24V | 36V | 48V | 72V | 72V | 96V | 192V | ||||
| Inbuilt Batteryof Standard Model | 2*9Ah | 3*7Ah | 4*9Ah | 6*7Ah | 6*9Ah | 8*7Ah | 16*7Ah | 16*9Ah | |||
| Charge Current | Standard Model | 1A | |||||||||
| Long Time Model | 6A | 1A/3A/5A/8A | |||||||||
| Typical Recharge Time | 8 hours recover to 90% capacity | ||||||||||
| ALARM | |||||||||||
| Utility Failure | Beep/4s | ||||||||||
| BatteryLow | Beep/1s | ||||||||||
| Overload | Beep Twice/1s | ||||||||||
| UPS Fault | Long Beep | ||||||||||
| ENVIRONMENT | |||||||||||
| Humidity | 20~90% RH @ 0~40°C(non-condensing)nsing)sing) | ||||||||||
| Noise Level | ≤50dB (1m) (1m)(1m) | ≤55dB (1m) (1m)(1m) | |||||||||
| MANAGEMENT | |||||||||||
| Standard RS-232 ,Optional USB | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | ||||||||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||||||||
| PHYSICAL | |||||||||||
| Dimension(mm) W*D*H | 144*357*215 | 144*410*215 | 190*452*341 | 190*470*341 | 190*452*341 | 190*470*341 | 262*514*455(H) 262*514*735(S) | ||||
| Packing Dimension(mm) W*D*H | 230*445*315 | 230*492*315 | 320*550*462 | 360*650*540(H) 360*650*795(S) | |||||||
| Net Weight(kg) | 6.0(H)10.0(S) | 6.5(H)13.0(S) | 12.0(H)20.0(S) | 13.0(H)25.0(S) | 12.0(H) 24.0(S) | 13.0(H) 29.0(S) | 26.0(H) 67.0(S) | ||||
| Gross Weight(kg) | 7.0(H)11.0(S) | 7.7(H)14.5(S) | 13.3(H)21.5(S) | 14.3(H)26.5(S) | 13.3(H)25.5(S) | 14.3(H) 30.5(S) | 28.0(H) 78.0(S) | ||||
