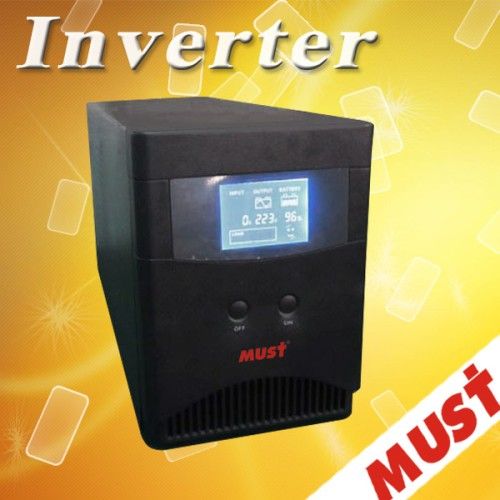

LCD/LED Pure Sine Wave DC AC 300W-3000W Power Inverter

LCD/LED Pure Sine Wave DC AC 300W-3000W Power Inverter

1+
190 USD
10+
182 USD
31+
162 USD

add to cart
Model NO. EP2000 Series
Output Power >1000W
Type DC/AC Inverters
Wave Form Pure Sine Wave
AC Voltage Regulation Auto-Transformer
Communication Port RS232
Output Voltage 145-290VAC
1000W Carton Demension 478*463*315mm
Power Source Electric Power
Brand Must/OEM
Specification CE ISO9001
HS Code 8504402000
Certification CE, ISO9001
Nature of Wave String Sine Wave Inverter
Protection Discharge, Overcharge, Overload
Input AC Voltage Tolerance Nominal AC Voltage 110VAC or 220VAC 25% Tolerance
Frequency 50Hz/60Hz
Display LCD/LED
Packaging Details Cartons/PC
Phase Single
Application air conditioner
Trademark Must
Origin China
LCD/LED Pure Sine Wave DC to AC 300W-3000W Power Inverter
Main features:
1. Pure sine wave power inverter DC to AC 300W-3000W
2. with LCD/LED display
3. Pure sine wave
4. 150% overload capacity
Details:
1. Pure sine-wave output, can be used with diffent domestic appiance TV, refrigerator, fan, air conditioner induvtion cooker, micro-wave oven etc
2. Superior performance from CPU control technology
3. Wide range of input voltage, accurate output, AVR function
4. Inner-equipped protection for over-load, short-circuit, over-voltage, low-voltage over-heating etc.
5. Easy to check with UPS condition with consice LED indication that can be upgraded
To LCD
6. Generator compatibly and external battery connection achievable
7. Intelligent battery management with protection against over-charged and over-discharged etc.
The Inverter is is devised to work in regions or countries of continuous AC power problems, and is also a truly revolutionary UPS. This series are a kind of industrial applications that the typical Inverter will not be satisfied and using a generator is not practical. The units output pure sine wave, surge suppression, AC voltage regulation. The external batteries can be quickly recharged by a powerful battery. Load levels, battery levels and status of operation of the unit can be visioned on the LED display. This design is the best choice for telecom, security and industrial PC applications.
MODEL
PT300 PT600 PT1200 PT1500 PT3000
CAPACITY W 500VA(300W) 1KVA(600W) 2KVA(1200W) 2.5KVA(1500W) 5KVA (3000W)
INPUT Phase Single
Voltage 100/110/127/220/230(+25%,-25%)
Frequency 60/50+/-10%
OUTPUT Phase Single
Voltage range(VAC) 100/110/127/220/230+/-5%
Frequency Commercial power supply shared frequency with the commercial inversion state:60/50+/-0.5
Waveform Sine wave
Power Factor P.F. 0.6 0.6 0.6
BATTERY DC Voltage DC12V DC12V DC24V DC48V DC48V
Back up Time Standard model: (halfload)﹥/=8min8min
Recharge current Long back up model: 15A max, standard model: 3A max
TRANSFER TIME Typical Typical: 5ms (Including detection time)
Display LCD/LED Optional
PROTECTION Full Protection Discharge, overcharge, and overload protection
PHYSICAL Dimension, DXWXH (mm)
375*130*190
452*192*338 452*192*338
Out packing Size, DXWXH (mm) 495*490*320(2pcs/ctn) 584*335*495(1pcs/ctn) 584*335*495(1pcs/ctn)
Net Weight (kgs) 12 23 27 33.7
ENVIRONMENT Operating Environment 0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing)
Noise Level Less than 40dB
INTERFACE Smart RS-232 Support Windows family, Linux, Compaq True64,
USB Option N / A
