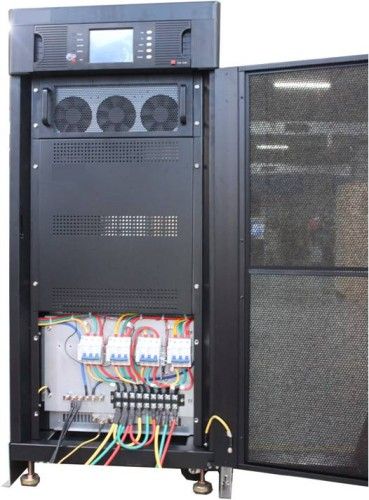

Ea900II 10-60kVA Three Phase UPS with CE
bargain
add to cart| Model NO. | EA9040II long back up mode |
| Type | On-line |
| Trademark | EAST/OEM |
| Origin | China |
| Phase | Three Phase |
| Protection | Overvoltage |
| Specification | CE, ROHS |
| HS Code | 85044020 |
Ideal applications:
ISP (international service provider), IDC (Internet Data Center ), Medium-scale network management sstem / machine rooms, billing cernter, bank /Bonds clearing center, Business servers, control application of industrial process, medium-scale office automation, Precise instrument, etc
EA900II 3/3 SERIES UPS is an advanced three phase online high frequency UPS with full digital control technology, supporting, three phase in single phase out, working mode as well. It breaks the traditional design of tower UPS, adopting the idea of advanced modular design. The series not only ensure the compactness of layout, but also enhances the system's reliability. With its excellent electrical properties and perfect peotective function in soft and hardware. EA900II 3/3 series UPS could adapt to different utility powers and provide safe and relaiable power protection for different loads
Features:
1- full digitized DSP control technology
2- thre online double conversion with strong load taking capability
3- support three phase in single phase out working mode
4- inputpower factor up to 0.99, lower harmonic current, green power, high efficiency & energy savingavingaving
5- wide input voltage, 50hz/60hz frequency self adaptable, adapt to different utility condition
6- support two modes of frequency conversion, 50hz input /60hz output, and 60hz input 50hz output, satisfy users' special requirement
7- 'N+X' redundancy parallel up to 6 units to 6 units
8- share battery pack in Parallel operation, saving users' battery cost
9- digitized charger, with flexible charging parameter setting and battery configuration
10- advanced intelligent battery management technique, prolongthe wroking life of battery effectively
11- support battery cold start and mains supply self-starting, satisfy the user's requirement
12- complete isolation design between fragile omponets and air flue, improving the system reliability greatly
13- fragil components been replaced as module easily at low maintenance cost
14- perfect protective function in soft and hardware, sobust self diagnose, abundant event log for future check
15- 5.7 inches multifunctional LCD touch screen, friendly human & machine interfacerfacerface
16- aboundant comunication port, including RS232, RS485, USB and SNMP card etc
ISP (international service provider), IDC (Internet Data Center ), Medium-scale network management sstem / machine rooms, billing cernter, bank /Bonds clearing center, Business servers, control application of industrial process, medium-scale office automation, Precise instrument, etc
EA900II 3/3 SERIES UPS is an advanced three phase online high frequency UPS with full digital control technology, supporting, three phase in single phase out, working mode as well. It breaks the traditional design of tower UPS, adopting the idea of advanced modular design. The series not only ensure the compactness of layout, but also enhances the system's reliability. With its excellent electrical properties and perfect peotective function in soft and hardware. EA900II 3/3 series UPS could adapt to different utility powers and provide safe and relaiable power protection for different loads
Features:
1- full digitized DSP control technology
2- thre online double conversion with strong load taking capability
3- support three phase in single phase out working mode
4- inputpower factor up to 0.99, lower harmonic current, green power, high efficiency & energy savingavingaving
5- wide input voltage, 50hz/60hz frequency self adaptable, adapt to different utility condition
6- support two modes of frequency conversion, 50hz input /60hz output, and 60hz input 50hz output, satisfy users' special requirement
7- 'N+X' redundancy parallel up to 6 units to 6 units
8- share battery pack in Parallel operation, saving users' battery cost
9- digitized charger, with flexible charging parameter setting and battery configuration
10- advanced intelligent battery management technique, prolongthe wroking life of battery effectively
11- support battery cold start and mains supply self-starting, satisfy the user's requirement
12- complete isolation design between fragile omponets and air flue, improving the system reliability greatly
13- fragil components been replaced as module easily at low maintenance cost
14- perfect protective function in soft and hardware, sobust self diagnose, abundant event log for future check
15- 5.7 inches multifunctional LCD touch screen, friendly human & machine interfacerfacerface
16- aboundant comunication port, including RS232, RS485, USB and SNMP card etc
| MODEL | EA9010II | EA9020II | EA9030II | EA9040II | EA9060II | EA9080II | EA90100II | EA90120II |
| Capacity | 10KVA 9KW | 20KVA 18KW | 30KVA 27KW | 40KVA 36KW | 60KVA 54KW | 80KVA 72KW | 100KVA 90KW | 120KVA 108KW |
| INPUT | ||||||||
| Rated Voltage | 380V/400V/415VAC | |||||||
| VoltageRange | 204-520VAC(Load≤50%);50%);0%); 242-520VAC(50% | |||||||
| Rated Frequency | 50/60Hz Auto Sensing | |||||||
| FrequencyRange | 40-70Hz | |||||||
| Power Factor | ≥0.99;0.990.99 | |||||||
| Total Harmonic Distortion (THDi) | ≤3%le;3%e;3% | |||||||
| BypassVoltage Range | Rated output voltage-40%- Rated output voltage+20%(Setting available via LCD) | |||||||
| OUTPUT | ||||||||
| Voltage | 380V/400V/415VAC | |||||||
| Voltage Regulation | ±1%plusmn;1%lusmn;1% | |||||||
| Frequency | Synchronized with utility on AC mode; 50/60Hz±0.1%on battery modetery modeery mode | |||||||
| Waveform | Pure sine wave | |||||||
| Crest Factor | 3:1 | |||||||
| Total Harmonic Distortion(THDV) | ≤1%(Linear load);≤3%(Non-linear load)ar load)r load) | |||||||
| Transfer Time | AC mode to battery mode :0ms Inverter mode to bypass mode:0ms | |||||||
| Inverter Overload Capability | 100%-125%:Transfer to bypass after 10mins; 125%-150%:Transfer to bypass after 1mins; ﹥150%: Transfer to bypass after0.5sr0.5s | |||||||
| Bypass Overload Capability | ≤150%: Long time runningnningning ﹥150%: Power off after 10sr 10s | |||||||
| BATTERY | ||||||||
| DC Voltage | ±192V(Option:±204V/±216V/±228V/±240V)lusmn;216V/±228V/±240V)±240V)lusmn;216V/±228V/±240V) | |||||||
| Inbuilt Batteryof Standard Model | 32*12V/9Ah | 64*12V/9Ah | NO | |||||
| Charger Current | 1-12A(Setting available via LCD) | 1-24A(Setting available via LCD) | 1-24A(Setting available via LCD) 1-48A(Optional) | |||||
| SYSTEM | ||||||||
| Efficiency | ≥93%,ECO model 98.5%98.5%8.5% | |||||||
| Display Panel | 5.7 Inches LCD touch screen | |||||||
| Alarm | Battery mode, Battery voltage low, Fans fault etc | |||||||
| Maximum Parallel numbers | 6 | |||||||
| EMI | EN62040-2 | |||||||
| EMS | IEC61000-4-2(ESD) | |||||||
| IEC61000-4-3(RS) | ||||||||
| IEC61000-4-4(EFT) | ||||||||
| IEC61000-4-5(Surge) | ||||||||
| ENVIRONMENT | ||||||||
| Humidity | 0~95% RH @ 0~40°C(non-condensing)nsing)sing) | |||||||
| Noise Level | ≤60dB;60dB60dB | |||||||
| MANAGEMENT | ||||||||
| Communication | RS232,RS485,USB,Dry contact | |||||||
| Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | ||||||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||||
| PHYSICAL | ||||||||
| Dimension(mm) W*D*H | 600*800*1360 | 600*800*1680 | ||||||
| Packing Dimension(mm) W*D*H | 720*920*1500 | 720*920*1820 | ||||||
| Net/Gross Weight(kg) Without Inbuilt battery | 180/200 | 185/205 | 190/210 | 225/245 | 230/250 | 336/376 | 374/414 | |
