Feature:

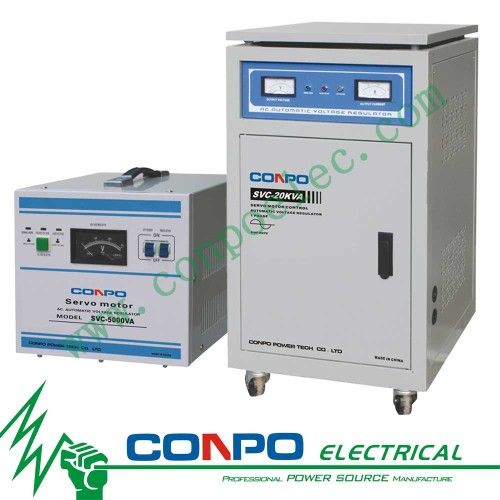

The series product is newly designed by us with one complete fresh and attractive perfect panel style, with a servo-motor type high accuracy household voltage stabilizer, the low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Specification:
Phase No.: Single phase
Input voltage: 160~250VAC
Output voltage: 220VAC/110VAC
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: ﹥90%;90%
Response time: ≤ 1.5s against 10% input voltage deviationtiontion
Ambient Temperature: -10C~+40C
Insulation resistance: ﹥2MΩ;2MΩ
Waveform distortion: Non additional waveform distortion
Function: Over voltage, over current, overloading etc. Protection function, and also with time delay, display for input or output voltage through conversion, bypass(city power) and stabilizing etc function.
Remarks:
Custom-made specifications are acceptable.
