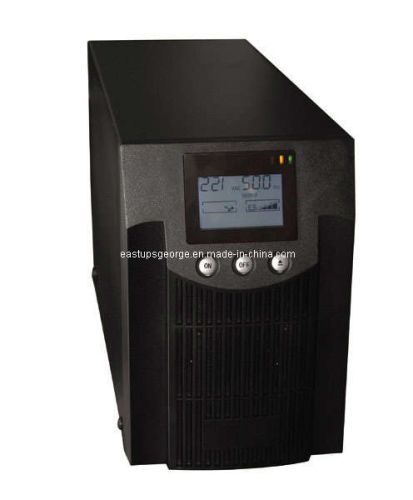

Online High Frequency UPS Ea900 (1-10kVA)
bargain
add to cart| Model NO. | EA900N |
| Type | On-line |
| Application | Communication |
| Output Capacity | Medium Type |
| Trademark | EAST, OEM |
| Origin | China |
| Phase | Single Phase |
| Protection | Overcurrent |
| Classification | Lighting/Power |
| Brand | East |
| Specification | EMC50091, 9254 |
| HS Code | 850440 |
True on-line technology provides all power protection
High frequency and double conversion on-line technology
Wide input voltage range
Advanced PFC technology
Pure sine wave output with less than 3% THD
Automatic diagnostics & battery checkcheckcheck
Self-testing when UPS startup
Advanced battery management(ABM)
Cold start function(DC power on)
Automatic battery charging in UPS off mode
Lightning and surge protection (surge energy rating 1050 Joules)
Short circuit and overload protection
Fan speed auto control when loads varies
Optional extension battery pack
EMI/RFI noise filter
Smart RS232 communication with monitoring software
Schedule shutdown & restartstartstart
Large LCD display
High frequency and double conversion on-line technology
Wide input voltage range
Advanced PFC technology
Pure sine wave output with less than 3% THD
Automatic diagnostics & battery checkcheckcheck
Self-testing when UPS startup
Advanced battery management(ABM)
Cold start function(DC power on)
Automatic battery charging in UPS off mode
Lightning and surge protection (surge energy rating 1050 Joules)
Short circuit and overload protection
Fan speed auto control when loads varies
Optional extension battery pack
EMI/RFI noise filter
Smart RS232 communication with monitoring software
Schedule shutdown & restartstartstart
Large LCD display
| Online Model | EA901N | EA902N | EA903N | EA906N | EA910N | |||||
| Capacity(linear Load) 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 6KVA/4200W | 10KVA/7KW | ||||||
| Input Voltage Range | Half Load 120-300VAC Full Load 165V-276VAC | 176V-290VAC | ||||||||
| Frequency Range | 45.5Hz~54Hz | |||||||||
| Output Voltage | 220V/230V/240V±3%plusmn;3%lusmn;3% | |||||||||
| Output Frequency | 50/60Hz±0.5Hzsmn;0.5Hzmn;0.5Hz | |||||||||
| Output Voltage Tolerance | <±5%(100% Load or without Load)ithout Load) | |||||||||
| Distortion | <3%(Linear Load); <5%(Non-linear load)ar load) | |||||||||
| Output Waveform | True Sine Wave | |||||||||
| Overload Capability | 110%~150%: transfer to Bypass after 1Mins, above 150%: 200MS | 105%~130%, 10Mins; ﹥130%:1Min.1Min. | ||||||||
| Battery Voltage | 36VDC | 96VDC | 240VDC | |||||||
| ChargeVoltage | 40.5±1Vplusmn;1Vlusmn;1V | 110±1Vplusmn;1Vlusmn;1V | 274.5±1Vplusmn;1Vlusmn;1V | |||||||
| Battery Type | Sealed Maintenance-FreeLead-Acid | |||||||||
| Batteries Q'TY | 12V×3Pcsmes;3Pcses;3Pcs | 12V×8Pcsmes;8Pcses;8Pcs | 12V×20Pcses;20Pcss;20Pcs | |||||||
| Standard Backup Time(Full Load/Half Load) | 5/12Mins | 7/16Mins | 5/13Mins | 6/15Mins | 8/20Mins | |||||
| Crest Factor | 3:1 | |||||||||
| Noise( 1m ) | <45db;45db | <50db;50db | <55db;55db | |||||||
| LCD and LED | Utility, Inverter, Bypass, Battery, Load, Battery Mode, Frequency, UPS Fault Indicator | |||||||||
| Transfer Time of AC to DC | Zero | |||||||||
| Battery Low Voltage | 31±2Vplusmn;2Vlusmn;2V | 83±2Vplusmn;2Vlusmn;2V | 200±2Vplusmn;2Vlusmn;2V | 210±2Vplusmn;2Vlusmn;2V | ||||||
| Charge Time | Charging up to 90% , ≤8HoursHoursours | |||||||||
| Audible Alarm-Battery Discharge | Utility Failure, Beep/4s ; Battery Low, Beep/1s | |||||||||
| EMC | 50091 , 9254 | |||||||||
| UPS Abnormal | Continuous Beep and Red LED on | |||||||||
| Output Short Circuit | Shutdown | |||||||||
| Outlets | 2pcs | 3pcs | Terminals | |||||||
| Communication Interface | RS232/SNMP ( optional ) | |||||||||
| Ambient Temperature | 0 ~ 40 | |||||||||
| Humidity | 10%~90% | |||||||||
| Net Weight(Kg) | UPS | 13.5 | 12.5 | 29.5 | 30.50 | |||||
| Battery | N/A | 26.0 | 50.0 | 60.0 | ||||||
| Dimension(W×D×H)mms;D×H)mm;H)mms;D×H)mm | UPS | 482×445×90s;445×90es;90s;445×90 | 482×448×90s;448×90es;90s;448×90 | 535×653×283;653×283s;283;653×283 | ||||||
| Battery | ||||||||||
| Packing Measure (W×D×H)mms;D×H)mm;H)mms;D×H)mm | UPS | 515×515×180;515×180s;180;515×180 | 515×548×180;548×180s;180;548×180 | 5357×653×283;653×283s;283;653×283 | ||||||
| Battery | ||||||||||
| 20FT | 600 PCs | 300PCs | 100PCs | |||||||
