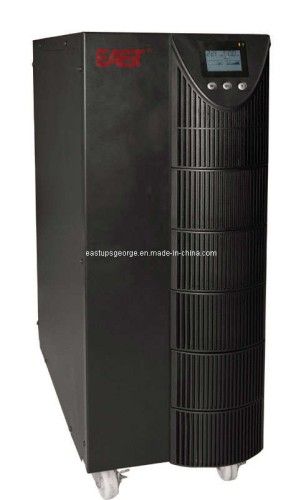

Online UPS EA900N 6KVA, 10KVA
bargain
add to cart| Phase | Single Phase |
| Protection | Overvoltage |
| Standby UPS | Sine Wave Output UPS |
| Trademark | EAST, OEM |
| Origin | China Mainland |
| Type | On-line |
| Standby Time | Standard Machine |
| Brand | East |
| Specification | EMC50091, 9254 |
| HS Code | 850440 |
True on-line technology provides all power protection
High frequency and double conversion on-line technology
Wide input voltage range
Advanced PFC technology
Pure sine wave output with less than 3% THD
Automatic diagnostics & battery checkcheckcheck
Self-testing when UPS startup
Advanced battery management(ABM)
Cold start function(DC power on)
Automatic battery charging in UPS off mode
Lightning and surge protection (surge energy rating 1050 Joules)
Short circuit and overload protection
Fan speed auto control when loads varies
Optional extension battery pack
EMI/RFI noise filter
Smart RS232 communication with monitoring software
Schedule shutdown & restartstartstart
Large LCD display
High frequency and double conversion on-line technology
Wide input voltage range
Advanced PFC technology
Pure sine wave output with less than 3% THD
Automatic diagnostics & battery checkcheckcheck
Self-testing when UPS startup
Advanced battery management(ABM)
Cold start function(DC power on)
Automatic battery charging in UPS off mode
Lightning and surge protection (surge energy rating 1050 Joules)
Short circuit and overload protection
Fan speed auto control when loads varies
Optional extension battery pack
EMI/RFI noise filter
Smart RS232 communication with monitoring software
Schedule shutdown & restartstartstart
Large LCD display
| MODEL | EA901 | EA902 | EA903 | EA906 | EA9010 | |||
| Capacity | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 6KVA/4200W | 10KVA/7000W | |||
| INPUT | ||||||||
| Rated Voltage | 208V/210V/220V/230V/240VAC | |||||||
| VoltageRange | Half load (115-295)±5VAC,Full load (165-295)±5VAC295)±5VACn;5VAC295)±5VAC | 176-276VAC | ||||||
| Frequency | 45.5Hz-54.5Hz or 55.5Hz-64.5JHz | |||||||
| Power Factor | ≥0.97;0.970.97 | |||||||
| OUTPUT | ||||||||
| Voltage | 208V/210V/220V/230V/240VAC | |||||||
| Voltage Regulation | ±3%plusmn;3%lusmn;3% | |||||||
| Frequency | Synchronized with utility on AC mode;50/60±0.5Hzon battery modetery modeery mode | |||||||
| Waveform | Pure sine wave | |||||||
| Crest Factor | 3:1 | |||||||
| Harmonic Distortion | ≤3%(Linear load);≤5%(Non-linear load)ar load)r load) | |||||||
| Transfer Time | AC mode to battery mode :0ms Inverter model to bypass mode:4ms(Typical) | AC mode to battery mode :0ms Inverter model to bypass mode:0ms | ||||||
| Overload Capability | 110%-150%:Transfer to bypass after 1mins; ﹥150%: Transfer to bypass after 200ms;00ms; | 110%-150%: Transfer to bypass after 10mins; >150%: Transfer to bypass after 1mins; | ||||||
| EFFICIENCY | ||||||||
| AC Mode | ≥89%e;89%;89% | |||||||
| BatteryMode | ≥85%e;85%;85% | |||||||
| BATTERY | ||||||||
| DC Voltage | 36V | 96V | 240V | |||||
| Inbuilt Batteryof Standard Model | 3*12V7Ah | 8*12V7Ah | 20*12V7Ah | 20*12V9Ah | ||||
| Charge Current | Standard Model | 1A | ||||||
| Long Time Model | 7A | 5A | ||||||
| Typical Recharge Time | 8 hours recover to 90% capacity | |||||||
| ALARM | ||||||||
| Utility Failure | Beep/4s | |||||||
| BatteryLow | Beep/1s | |||||||
| Overload | Beep Twice/1s | |||||||
| UPS Fault | Long Beep | |||||||
| ENVIRONMENT | ||||||||
| Humidity | 20~90% RH @ 0~40°C(non-condensing)nsing)sing) | |||||||
| Noise Level | ≤50dB (1m) (1m)(1m) | |||||||
| MANAGEMENT | ||||||||
| Standard RS-232,Optional USB | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | |||||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||||
| PHYSICAL | ||||||||
| Tower | Dimension(mm) W*D*H | 145*415*215 | 190*470*330 | 260*560*730 | ||||
| Packing Dimension(mm) W*D*H | 236*492*316 | 320*592*462 | 360*662*905 | |||||
| Net Weight(kg) | 6.5(H),12.3(S) | 13.2(H),28.0(S) | 40.0(H),86.5(S) | |||||
| Gross Weight(kg) | 7.6(H),13.3(S) | 14.5(H),29.3(S) | 46.8(H),93.6(S) | |||||
| Rack Mount | Dimension (mm) | UPS | 483*448*88 | 483*448*88 | 483*560*221 | |||
| Battery Bank | N/A | 483*448*88 | 483*560*131 | |||||
| Packing Dimension (mm) | UPS | 515*515*180 | 515*548*180 | 580*670*377 | ||||
| Battery Bank | N/A | 515*548*180 | 580*670*285 | |||||
| Net Weight (kg) | UPS | 7.5(H),13.5(S) | 12.5 | 29.5 | 30.5 | |||
| Battery Bank | N/A | 26.0 | 50.0 | 60.0 | ||||
| Gross Weight(kg) | UPS | 8.5(H),14.5(S) | 13.5 | 30.5 | 31.5 | |||
| Battery Bank | N/A | 27.0 | 52.0 | 62.0 | ||||
