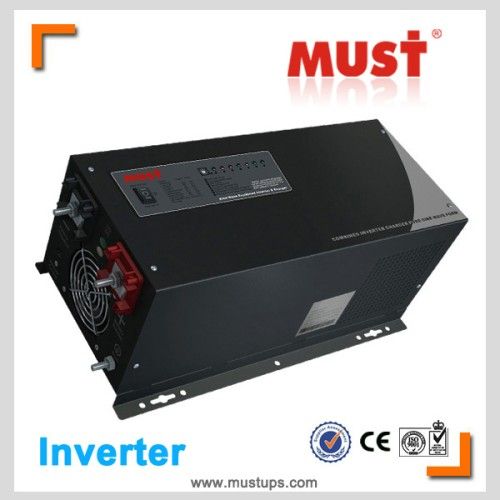

CE Certificate Home Use Easy Operate Sinewave Inverter
| Model NO. | EP3000 |
| Type | DC/AC Inverters |
| Output Power | >1000W |
| Certification | CE, ISO9001 |
| Weight | 18-60kg |
| Power | 1kw-6kw |
| Input Votlage | 155-265VAC for 230VAC, 90-120VAC for 120VAC |
| Charge Current | 70A Max |
| Remote Control | Option |
| Trademark | MUST |
| Origin | Shenzhen, China |
| Phase | Single |
| Power Source | Electric Power |
| Nature of Wave String | Sine Wave Inverter |
| Brand | Must/OEM |
| Colour | Black ,White |
| DC | 12V/24V/48V |
| Input Frequency | 40-80Hz |
| Charge Currante Adjustable | Yes |
| RS232 | Option |
| Specification | CE, ISO, |
| HS Code | 8504409990 |
CE Certificate Home Use Easy Operate Sinewave Inverter
Pure sine wave inverter solar inverter
Durable construction for long life under extreme environmental conditions
Low idle current (less than 1 watt) conserves energy when no loads are present
Soft start capability for starting heavy loads;
Built-in starting control circuits for two- and three-wire generator starting systems;
Simplified controls with a snap-on cover that protects settings from being accidentally changed;
Better thermal performance allows full output power to 50° C (122° F) without de-rating;e-rating;e-rating;
High surge capacity starts more difficult loads and handles overload conditions reliably;
Durable powder coated, corrosion resistant steel chassis.
New digital display shows kilowatts (kW) when inverting and AMPS (A) when charging, plus incorporates a robust ON/OFF switch and status indicators;
70-AMP automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance;
New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time.
Pure sine wave inverter solar inverter
Durable construction for long life under extreme environmental conditions
Low idle current (less than 1 watt) conserves energy when no loads are present
Soft start capability for starting heavy loads;
Built-in starting control circuits for two- and three-wire generator starting systems;
Simplified controls with a snap-on cover that protects settings from being accidentally changed;
Better thermal performance allows full output power to 50° C (122° F) without de-rating;e-rating;e-rating;
High surge capacity starts more difficult loads and handles overload conditions reliably;
Durable powder coated, corrosion resistant steel chassis.
New digital display shows kilowatts (kW) when inverting and AMPS (A) when charging, plus incorporates a robust ON/OFF switch and status indicators;
70-AMP automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance;
New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time.
| MODEL (EP3000) | HV Model | |||||||
| 1012E | 1024E | 2012E | 2024E | 3024E | 4048E | 5048E | 6048E | |
| Line Mode Specifications: | ||||||||
| Input Voltage Waveform | Sinusoidal (utility or generator) | |||||||
| Nominal Input Voltage | 230Vac(120VAC selectable) | |||||||
| Low Line Disconnect | 184Vac±4%lusmn;4%lusmn;4% | |||||||
| Low Line Re-connect | 194Vac ±4%lusmn;4%lusmn;4% | |||||||
| High Line Disconnect | 265Vac±4%lusmn;4%lusmn;4% | |||||||
| High Line Re-connect | 255Vac±4%lusmn;4%lusmn;4% | |||||||
| Max AC Input Voltage | 270Vrms | |||||||
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | |||||||
| Low Line Frequency Re-connect | 58+0.3Hz for 60Hz;48+0.3Hz for 50Hz; | |||||||
| Low Line Frequency Disconnect | 57+0.3Hz for 60Hz;47+0.3Hz for 50Hz; | |||||||
| High Line Frequency Re-connect | 64+0.3Hz for 60Hz;54+0.3Hz for 50Hz; | |||||||
| High Line Frequency Disconnect | 65+0.3Hz for 60Hz;55+0.3Hz for 50Hz; | |||||||
| Output Voltage Waveform | As same as Input Waveform | |||||||
| Over-Load Protection(SMPSload) | Circuit breaker | |||||||
| Output Short Circuit Protection | Circuit breaker | |||||||
| Efficiency (Line Mode) | >95% | |||||||
| Transfer Switch Rating | 30A | |||||||
| Transfer Time (Ac to Dc) | 10ms (typical) | |||||||
| Transfer Time (Dc to Ac) | 10ms (typical) | |||||||
| Pass through without Battery | Yes | |||||||
| Max Bypass Overload Current | 30A | |||||||
| Invert Mode Specifications: | ||||||||
| Output Voltage Waveform | Sine wave | |||||||
| Rated Output Power (VA) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||
| Rated Output Power (W) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||
| Power Factor | 0~1.0 | |||||||
| Nominal Output Voltage (V) | 230Vac | |||||||
| Nominal Output Frequency (Hz) | 50Hz ± 0.3Hzn; 0.3Hzn; 0.3Hz | |||||||
| Auto tracking Main Frequency(Hz) | Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz | |||||||
| Output Voltage Regulation | ±10% rms;10% rms;10% rms | |||||||
| Nominal Efficiency | >80% | |||||||
Over-Load Protection (SMPS load) | (110% 150% ±10%: Fault (shutdown output) after 20s;ter 20s;ter 20s; | |||||||
| Surge rating (10s) | 3000VA | 6000VA | 9000VA | 12000VA | 15000 VA | 18000VA | ||
| Capable of starting electric motor | 1 HP | 1 HP | 2 HP | 3 HP | ||||
| Output Short Circuit Protection | Current limit (Fault after 10s) | |||||||
| Inverter overload Breaker Size | 30A | 30A | 30A | 35A | 50A | |||
| Nominal DC Input Voltage | 12V | 24V | 12V | 24V | 24V | 48V | 48V | |
| Min DC start voltage | 10V/20V/40V | |||||||
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery;21.0Vdc ± 0.6Vdc for 24V battery;42.0Vdc ± 0.6Vdc for 48V battery0.6Vdc for 48V battery0.6Vdc for 48V battery | |||||||
| Low DC input Shut-down | 10.0Vdc ± 0.3Vdc for 12V battery;20.0vdc± 0.6Vdc for 24V battery;40.0Vdc± 0.6Vdc for 48V battery0.6Vdc for 48V battery0.6Vdc for 48V battery | |||||||
| High DC input Alarm & FaultFaultFault | 16Vdc ± 0.3Vdc for 12V battery;32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery0.6Vdc for 48V battery0.6Vdc for 48V battery | |||||||
| High DC input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery;31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery0.6Vdc for 48V battery0.6Vdc for 48V battery | |||||||
| Power saver | Load ≤25W (Enabled on 'P/S auto' setting of Remote control)emote control)rol) | |||||||
| Charge Mode Specifications: | ||||||||
| Nominal Input Voltage | 230Vac | |||||||
| Input Voltage Range | 196~243Vac | |||||||
| Nominal Output Voltage | According to the battery type | |||||||
| Nominal Charge Current | 35A | 35A | 65A | 35A | 45A | 35A | 40A | 50A |
| Charge Current Regulation | ± 5Adcmn; 5Adcmn; 5Adc | |||||||
| Battery initial voltage | 0 –15.7 Vdc (can operate with 0V battery)attery)attery) | |||||||
| Charger Short Circuit Protection | Circuit breaker | |||||||
| Over Charge Protection | Bat. V ≥15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60sfter 60sfter 60s | |||||||
| General Specifications | ||||||||
| Safety Certification | CE(EN62040-1) | |||||||
| EMC Classification | EN62040-2,C2 | |||||||
| Operating Temperature Range | 0°C to 40°C 40°Ceg;C 40°C | |||||||
| Storage temperature | 15°C below zero to 60°C 60°Ceg;C 60°C | |||||||
| Operation humidity | 5% to 95% | |||||||
| Audible Noise | 60dB max | |||||||
| Cooling | Forced air, variable speed fan | |||||||
| Size | 1012E/1024E2012/2024E/2048E:381mm*217mm*179mm 3012/3024E/3048E/5024E/5048E/6024E/6048E:461 mm*217mm*179mm | |||||||
