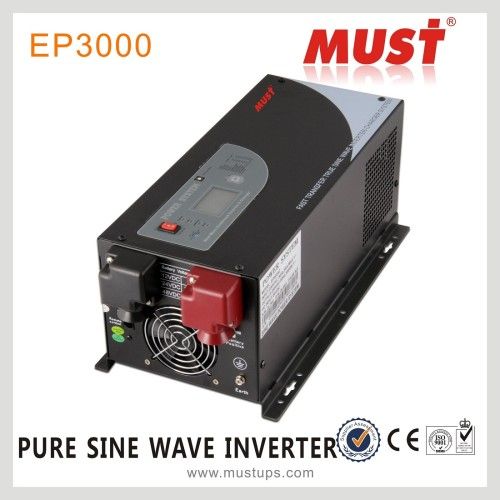

Pure Sine Wave off Grid Power Inverter Charger

Pure Sine Wave off Grid Power Inverter Charger

1+
180 USD
30+
165 USD
50+
160 USD
100+
145 USD

add to cart
Model NO. EP3000 series
Type DC/AC Inverters
Output Power >1000W
Application All Kinds of Home Loads
Brand Must or OEM
Transformer Pure Copper Transformer
Input Votlage 155-265VAC for 230VAC, 90-120VAC for 120VAC
Charge Currante Adjustable 25% 50% 75% 100%
Remote Control / RS232 Optional Option
DC 12V/24V/48V
Specification CE, SGS, ISO9001, soncap
HS Code 8504403090
Phase Single
Power Source Electric Power
Nature of Wave String Sine Wave Inverter
Certification ISO9001, IEC, Soncap
Wave Pure Sine Wave
AC Charger 65A Max
Input Frequency 40-80z
Automatic Three-Stage Battery Charger (Bulk, Absorption, Float)
Color Black or White
Trademark must
Origin China

MUST brand LCD pure sine wave charger inverter 1kw to 6kw with CE SONCAP ISO9001 IEC quality
1. 1kw~6kw optional, 12v / 24v / 48vdc optional
2. Max. charge current 65A.
3.Pure sine wave.
4. Inbuilt pure copper transformer
5. Support inductive load
6. Automatic three-stage battery
Charger (bulk, absorption, float)
7. With 150cm battery cable
8. Support generator 1hp/2hp/3hp
9. Support solar system
10. Remote control / RS232 optional
11. CE/ SONCAP/IEC/ISO9001 certificate
12. Charge current is adjustable 25%,50%,75%.100%

MODEL		 EP30-1KW EP30-1.5KW EP30-2KW EP30-3KW EP30-4KW EP30-5KW EP30-6KW
Default Battery System Voltage 12V 24V 12V 24V 12V 24V 12V 24V 48V 24V 48V 24V 48V 24V 48V
INVERTER
OUTPUT		 Reted Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Surge Rating (20ms) 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
Capable Of Starting Electric Motor 1HP 2HP 3HP
Waveform Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS 100V/110V/120VAC 220V/230V/240VAC 220V/230V/240VAC
Output Voltage Regulation ±10% RMS;10% RMS;10% RMS
Output Frequency 5OHz/60Hz±0.3 Hzn;0.3 Hzn;0.3 Hz
Inverter Efficiency(Peak) >88%
Line Mode Efficiency >95%
Power Factor 1.0
Typical Transfer Time 10ms(max)
AC
INPUT		 Voltage 120VAC/230VAC
Selectable Voltage Range 96~132VAC 155~280VAC(For Personal Computers) 155~280VAC(For Computers)
Frequency Range 50Hz/60Hz (Auto sensing) 40~80Hz
BATTERY Minimum Start Voltage 10.OVDC/10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC)
Low Battery Alarm 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)r 48VDC)r 48VDC)
Low Battery Cutoff 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)r 48VDC)r 48VDC)
High Voltage Alarm 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)r 48VDC)r 48VDC)
High Battery Voltage Recover 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)r 48VDC)r 48VDC)
Idle Consumption-Search Mode <25W when power saver onr on
CHARGER Output Voltage Depends on battery type
Charger AC Input Breaker Rrating 10A 30A 40A
Overcharge Protection S.D. 15.7VDC for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
Maximum Charge Current 35A 20A 45A 25A 65A 35A 75A 45A 30A 65A 35A 70A 40A 75A 50A
BTS Continuous Output Power Yes Variances in charging voltage & S.D. voltage base on the battery temperatureatureature
BYPASS
&
PROTECTION		 Input Voltage Waveform Sine wave (grid or generator)
Nominal Input Frequency 50Hz or 60Hz
Overload Protection (SMPS Load) Circuit breaker
Output Short Circuit Protection Circuit breaker
Bypass Breaker Rating 10A 30A 40A
Max Bypass Current 10Amp 30Amp 40Amp
MECHANICAL
SPECIFICATIONS		 Mounting Wall mount
Dimensions (W*H*D) 185*160*423 185*160*600
Net Weight (kg) 15.7 18 16.2 15.5 20.3 19.1 25.3 23.7 24 37.2 34.8 44.2 44 44.2 44
Shipping Dimensions(W*H*D) 315*300*570 319*288*755
Shipping Weight (kg) 18.3 20.6 19 18.1 23.1 21.8 28.1 26.5 26.5 40.8 38.4 48 47.8 48 47.8
OTHER Operation Temperature Range 0°C to 40°C 40°Ceg;C 40°C
Storage Temperature -15°C to 60°C 60°Ceg;C 60°C
Audible Noise 60dB MAX
Display LED+LCD
Standard Warranty 1 year
