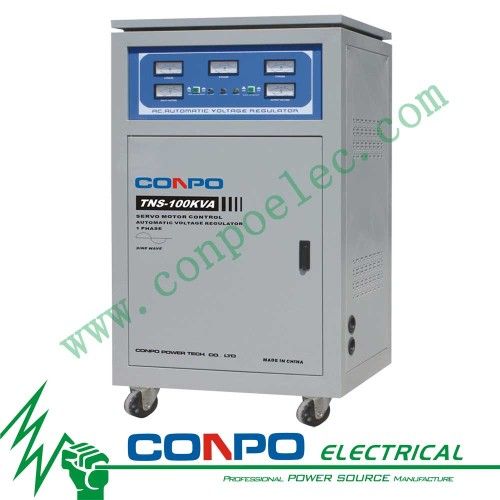

The series product is newly designed by us with one complete fresh and attractive perfect panel style, with a servo-motor type high accuracy household voltage stabilizer, the low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Specification:
Phase No.: Three phase four system
Input voltage: 280~430VAC/3Phase
Output voltage: 380V/3Phase
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: ﹥90%;90%
Response time: <1.5s against 10% input voltage deviationtion
Ambient Temperature: -10C~+40C
Insulation resistance: ﹥2MΩ;2MΩ
Waveform distortion: Non addtional waveform distortion
Protection function: Over voltage, over current, overloading and delay etc.
Package:
Qty. /Pkg.: 1unit/pkg
Pkg. Size: 44x36x67cm
Remarks:
Custom-made specifications are acceptable.
