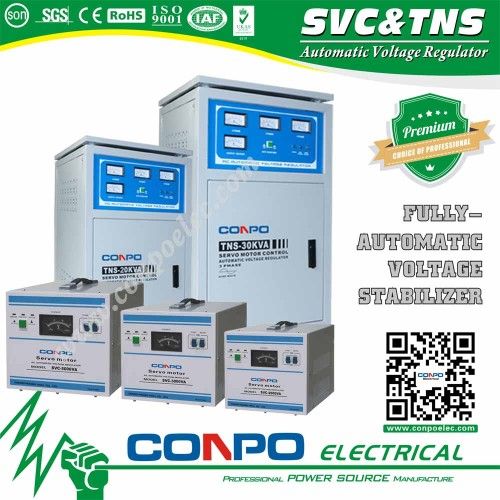

SVC/Tns Series Servo-Type Automatic Voltage Stabilizer/Regulator
bargain
add to cart| Model NO. | SVC-500VA~60KVA 1Phase; TNS-3KVA~100KVA 3Phase |
| Phase | Single Phase |
| Usage | Used in Region Where The Net Voltage Is Flucuating |
| Size | 500va~60kVA 1phase, 3kVA~100kVA 3phase |
| Application Range | Used in Region Where The Net Voltage Is Flucuating |
| Trademark | CONPO |
| Origin | Nanjing, China |
| Current Type | AC |
| Frequency Characteristics | 50Hz/60Hz |
| Frequency | 50Hz/60Hz |
| Power Source | Servo-Type AVR |
| Brand | Conpo |
| Specification | CE, RoHS, SGS, ISO9001, CNCA, SONCAP, SASO etc. |
| HS Code | 8504401990 |
The series product is newly designed by us with one complete fresh and attractive perfect panel style, with a servo-motor type high accuracy household voltage stabilizer, the low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Specification:
Phase No.: Single phase, Three phase
Input voltage: 160~250VAC/1Phase, 280~430VAC/3Phase
Output voltage: 220VAC/110VAC, 380VAC/3Phase
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: ﹥90%;90%
Response time: <1.5s against 10% input voltage deviationtion
Ambient Temperature: -10C~+40C
Insulation resistance: ﹥2MΩ;2MΩ
Waveform distortion: Non addtional waveform distortion
Function: Over voltage, over current, overloading etc. Protection function
Remarks:
Custom-made specifications are acceptable.
1). 1Phase SVC series Specifications:
2). 3Phase TNS series Specifications:
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Specification:
Phase No.: Single phase, Three phase
Input voltage: 160~250VAC/1Phase, 280~430VAC/3Phase
Output voltage: 220VAC/110VAC, 380VAC/3Phase
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: ﹥90%;90%
Response time: <1.5s against 10% input voltage deviationtion
Ambient Temperature: -10C~+40C
Insulation resistance: ﹥2MΩ;2MΩ
Waveform distortion: Non addtional waveform distortion
Function: Over voltage, over current, overloading etc. Protection function
Remarks:
Custom-made specifications are acceptable.
1). 1Phase SVC series Specifications:
Model | Rated Power | Package Size(Approx. ) | Qty. Per Pkg |
| SVC-500VA(New) | 500VA | 41.5*25*34CM | 4PCS/PKG |
| SVC-1000VA(New) | 1000VA | 49.5*28.5*38.5CM | 4PCS/PKG |
| SVC-1500VA(New) | 1500VA | 49.5*28.5*38.5CM | 4PCS/PKG |
| SVC-2000VA(New) | 2000VA | 53*34*29CM | 2PCS/PKG |
| SVC-3000VA(New) | 3000VA | 55*36.5*31.5CM | 2PCS/PKG |
| SVC-5000VA(New) | 5000VA | 66*42.5*33CM | 1PC/PKG |
| SVC-7500VA(New) | 7500VA | 40*40*25.5CM | 1PC/PKG |
| SVC-10000VA(New) | 10000VA | 40*40*25.5CM | 1PC/PKG |
| SVC-15KVA(New) | 15KVA | 45*38*67CM | 1UNIT/PKG |
| SVC-20KVA(New) | 20KVA | 45*38*67CM | 1UNIT/PKG |
| SVC-30KVA(New) | 30KVA | 49*44*80CM | 1UNIT/PKG |
| SVC-45KVA(New) | 45KVA | 64*57*105CM | 1UNIT/PKG |
| SVC-60KVA(New) | 60KVA | 64*57*105CM | 1UNIT/PKG |
2). 3Phase TNS series Specifications:
Model | Rated Power | Package Size(Approx. ) | Qty. Per Pkg |
| TNS-3KVA | 3KVA | 44*36*67CM | 1UNIT/PKG |
| TNS-4.5KVA | 4.5KVA | 44*36*67CM | 1UNIT/PKG |
| TNS-6KVA | 6KVA | 44*36*77CM | 1UNIT/PKG |
| TNS-9KVA | 9KVA | 44*36*77CM | 1UNIT/PKG |
| TNS-15KVA | 15KVA | 48*42*85CM | 1UNIT/PKG |
| TNS-20KVA | 20KVA | 48*42*85CM | 1UNIT/PKG |
| TNS-30KVA | 30KVA | 52*49*89CM | 1UNIT/PKG |
| TNS-45KVA | 45KVA | 64*57*105CM | 1UNIT/PKG |
| TNS-50KVA | 50KVA | 64*57*105CM | 1UNIT/PKG |
| TNS-60KVA | 60KVA | 64*57*105CM | 1UNIT/PKG |
| TNS-80KVA | 80KVA | 60*71*131CM | 1UNIT/PKG |
| TNS-90KVA | 90KVA | 60*71*131CM | 1UNIT/PKG |
| TNS-100KVA | 100KVA | 60*71*131CM | 1UNIT/PKG |
