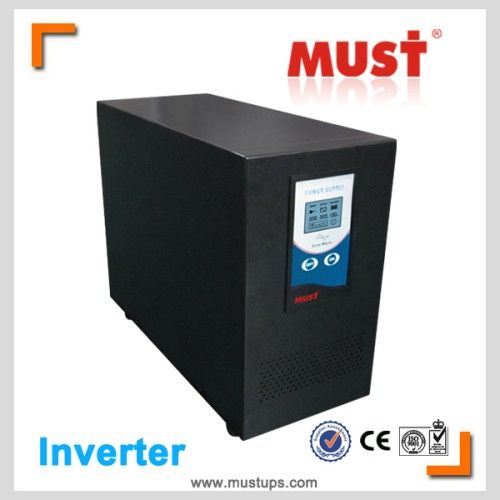

Smart Power Inverter for Home Application

Smart Power Inverter for Home Application

90 USD

add to cart
Model NO. EP2000
Certification CE, ISO9001
Output Type Single
Nature of Wave String Sine Wave Inverter
Max Current 25A
Display LED/LCD
Phase Single
Application air conditioner
Specification ISO, CE
HS Code 8504403090
Nature of Source Flow Active Inverter
Output Power >1000W
Circuit Topologies Full-Bridge Type
Type DC/AC Inverters
Weight 36kg
Size Size: 500*260*455mm
Power Source Electric Power
Trademark MUST
Origin China

Smart home application power inverter 4000w 24v 220v
Feature
Pure sine-wave output;
25A battery charge current;
Superior performance from CPU control technology;
Fast Action AC Synchronized Transfer Switch
Wide range of input voltage, accurate output, AVR function;
Inner-Equipped protection for over-load, short-circuit, over-voltage, low-voltage, over- heating, etc.
Easy to check with inverter condition with concise LCD indication.
Generator compatibly and external battery connection achievable.
Intelligent battery management with protection against over-charged and over-discharged etc.
Special charging system design for better protection of battery life.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports) and can be used as UPS.

MODEL
PT600 PT1000 PT1200 PT1500 PT2000 PT3000 PT3600 PT4000 PT5000
Rated capaclty(W) 600W 1000W 1200W 1500W 2000W 3000W 3600W 4000W 5000W
INPUT
Phase Single
Voltage 100/110/120/127/220/230VAC(+25%,-35%) 100/110/120/127/220/230VAC±20%usmn;20%usmn;20%
Frequency Range 60/50±10%(auto sensing)sensing)sensing)
OUTPUT
Phase Single
Voltage (Batt Mode) 100/110/120/127/220/230VAC/240VAC
Frequency Range(Batt Mode) 60/50±0.2Hzmn;0.2Hzmn;0.2Hz
Transfer Time Typical 2-6ms ,10ms max
waveform Pure Sine Wave
BATTERY
Recharge Current(S) 25Amax
Nominal DC input voltage 12VDC 12/24VDC 24VDC 24VDC 24/48VDCVDC 48VDC 48VDC 96VDC
INDICATORS
LCD/LED Optional
PROTECTION
Overload IPS automatically shutdown if overload exceeds 120% ofnormal value for 30 seconds
IPS automatically resume work if overload comes back to rated load
Short circuit Cut off immediately
ALARM
Battery back-up Sounding every 4 second
Low Battery Sounding every second
Overload Audible alarm
Fault Continuously sounding
OPERATING ENVIRONMENT
Humidity 0-90%RH @-5-55°C(non-condenslng)slng)slng)
Noise Level Less than 60dB
Appearance
External Size(mm)L*W*H 375*130*190 452*192*338 500*260*455
Carton Size(mm)L*W*H 478*463*315(2 Piece) 584*335*495(1 Piece) 545*345*535(1 Piece)
Unit weight(kg/pc) 10 13.2 17 24.2 27.4 29.5 33 33 35/52
Gross weight(kg/ctn) 22.6 29 19.7 26.9 30.1 33.2 35.7 35.7
