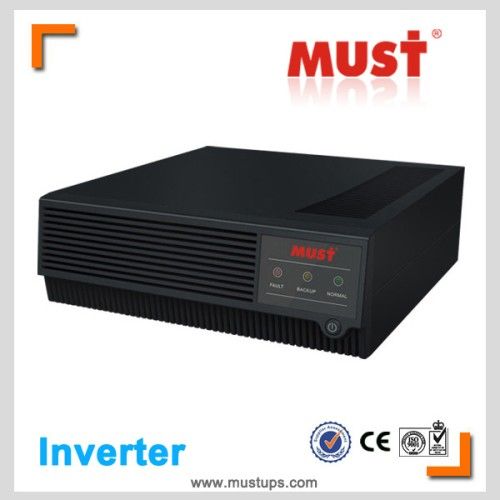

10A/20A Charge Current Micro Power Inverter for Home Use
| Model NO. | EP1000 500VA-2000VA |
| Output Power | 501 - 1000W |
| Type | DC/AC Inverters |
| Input Range | 90-280VAC |
| Output Wave | Modified Sine Wave |
| Frequency | High Frequency |
| Display | LCD Display |
| Name | 10A/20A Charge Current Micro Power Inverter for Ho |
| Power Source | Electric Power |
| Trademark | MUST |
| Origin | China |
| Certification | CE, ISO9001 |
| Nature of Wave String | Sine Wave Inverter |
| with AVR | Max Current: (10A/20A) |
| DC Input | 12V/24V |
| Gw | 2.8kg |
| Charge Function | Three Steps Intelligent Charging Control |
| PCB Board | Double Layers |
| Phase | Single |
| Brand | Must/OEM |
| Specification | CE |
| HS Code | 8504403090 |
10A/20A Charge Current Micro power inverter for home use
1. Features
The EP1000 series converts DC power into AC power.With a continuous output and compact design,the units sideal for running TVs,Stereos,Laptop and computers and other home appliancies .EP1000 serie will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Super efficient, DC to AC conversion, minimizing charging losses
nput voltage range selection option
Fully automatic start operation
High frequency technology
Compact size and light weight
Provides critical overload protection
Eco-friendly & non-polluting (green device)vice)vice)
Advanced technology optimizes battery life
Pls kindly contact Vena Tang
1. Features
The EP1000 series converts DC power into AC power.With a continuous output and compact design,the units sideal for running TVs,Stereos,Laptop and computers and other home appliancies .EP1000 serie will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Super efficient, DC to AC conversion, minimizing charging losses
nput voltage range selection option
Fully automatic start operation
High frequency technology
Compact size and light weight
Provides critical overload protection
Eco-friendly & non-polluting (green device)vice)vice)
Advanced technology optimizes battery life
Model | EP1000 | P500VA | P1000VA | P2000VA |
| Capacity | VA/W | 500VA / 300W | 1000VA/600W | 2000VA /1200W |
| Input | Phase | Single | ||
| Voltage | 110 / 120VAC or 220 / 230 / 240VAC | |||
| Voltage Range | 90 - 145VAC or 170-280VAC ( Narrow Range ) | |||
| 50-145VAC / 90-280VAC (Wide Range) | ||||
| Output | Phase | Single | ||
| Voltage | 120VAC or 230VAC | |||
| Voltage Regulation(Batt. Mode) | +10% ~ 18% | |||
| Frequency | 50Hz or 60Hz | |||
| Frequency Regulation (Batt. Mode) | +/- 0.1 Hz | |||
| Output Waveform (Batt. Mode) | Square Modified Sine wave | |||
| Power Factor | P.F. | 0.6 | ||
| Battery | Charger Current | 10Amp + / - 1Amp | 10 Amp + / - 1Amp | |
| Floating Voltage | 13.7V + / - 0.2V | 27.4V + / - 0.4V | ||
| Overcharge Protection | 14.5V +/- 0.3V charger stops and fault | 29V +/- 0.6V charger stops and fault | ||
| Transfer Time | Typical | 8ms | ||
| Efficiency | AC to AC | >95% | ||
| DC to AC | >80% | |||
| Indicator | AC Mode | Green LED lighting | ||
| Battery Mode | Yellow LED lighting | |||
| Battery Charging Mode | Green LED flashing every 2 seconds | |||
| Overload | Red LED flashing every 0.5 second | |||
| Fault | Red LED lighting | |||
| Audible Alarm | Low Battery at Battery Mode | Sounding every 2 seconds | ||
| Overload | Sounding every 0.5 second | |||
| Fault | Continuing sounding | |||
| Protection | Full Protection | Deep Discharge, Overcharge, and Overload protection | ||
| Physical | Dimension (D*W*H) mm | 224 X 255 X 80 | ||
| Net Weight (kg) | 1.7 for 500VA / 300W | |||
| Environment | Operating Environment | 0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing) | ||
| Noise Level | Less than 45dB | |||
Pls kindly contact Vena Tang
