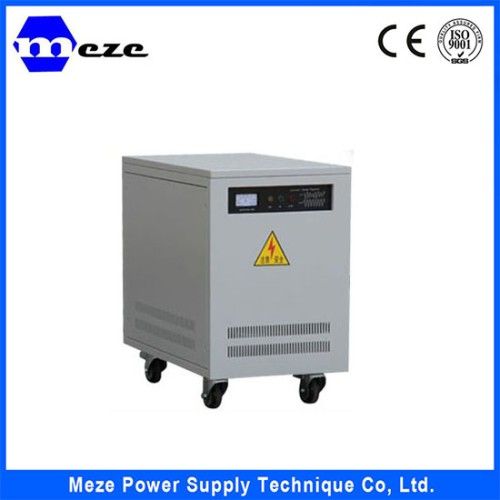

MEZE-20kVA Full-Auotmatic Compensated VoltageStabilizer/Regulator
MZDC SERIES is Dc regulated power supply circuit for linear series adjustment type
structure, with the advantages of high stability, low ripple voltage. Using voltage
suspension type technology, Output voltage can be transferred to the rating from zero
volts, Output current can range from zero amps preset to the rating.
Adopt SCR or relay preliminary stability change on both ends of the voltage rectifier
bridge
Dual power supply, with functions of master-slave track series and parallel. when
cascade used, , The output voltage is equal to the double power source voltage, Increase
the load voltage, When using parallel output current is the sum of two lines of output
current Increase the load current
Small volume, light weight, convenient adjustment, high precision, low ripple voltage,
output voltage and current are starting from zero, with functions of master-slave track.
The input voltage: 220V±15% 50±1Hz% 50±1Hzsmn;1Hz% 50±1Hz
The output voltage: Can be adjusted according to the demand o f 0 ~ maximum rating
Output current: Can be adjusted according to the demand of 0 ~ maximum rating
Effect of the power: 5x10 +10mv
Current effect: 5x10 +15mv
Ripple voltage: Vp-p 10mv

1. Welcome your enquiry
Contact me :leon liang
