W7 bypass Large LCD display Pure Sine Wave Inverter 1000W-6000W, 12/24/48VDC, 110/220/230/240VAC
| Model NO. | w7 solar inverter |
| Phase | Single Phase |
| Frequency | Low Frequency |
| Output Frequency | 50Hz/60Hz |
| LCD Display | Show Voltage, Battery, Load |
| Peaking Power | 3 Times of Rating Power |
| battery | Free maintenance sealed lead acid batter |
| Transport Package | by Wooden Boxes,by Package |
| Origin | China |
| Current Type | DC to AC |
| Usage | Solar Inverter System |
| Output | 120VAC, 220VAC, 230VAC, 240VAC |
| Output Waveform | Pure Sine Wave |
| Color | Black and White |
| Function | Bypass,DC auto start optional |
| Trademark | ZLPOWER |
| Specification | CE |
| HS Code | 8537109090 |

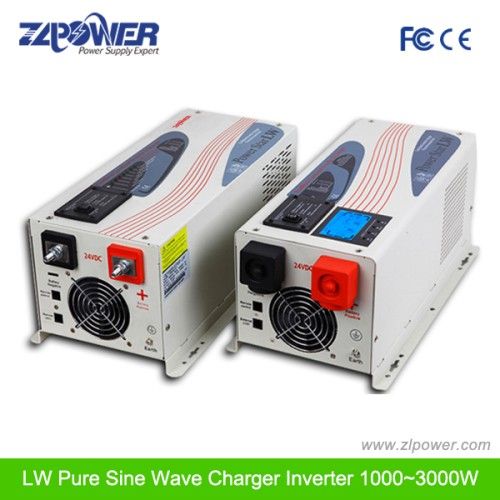

Powerstar LW Inverter Charger 1000W to 6000W, PURE SINE WAVE, 12V/24V/48VDC, 120V/220/230/240VAC, with built in AC battery charger and UPS Function, PEAK POWER Three times.
NEW FEATURES:
1. LCD Digital Display Panel, can show voltage, battery and load details and adjust voltage or frequency.
2. Add inside MPPT solar charger controller 12v/24v 40A. (Optional)
3. Add remote control LCD panel with 5meters length cable. (Optional)
Advantages:
l. Pure sine wave combined inverter charge
l. 4 step progressive charging 7 battery type selector
l. Easy to install & easy to useo useo use
l. Highpower,Multistage Battery charger
l. Automatically and swiftly line to battery switchover
l. High efficiency using lineinteractive circuit topology
l. Microprocessor control guarantees high reliability
l. Bypass without battery connected
When the POWER STAR LW is in the inverter mode, the ' through the box' earth line is automatically
disconnected from the input earth and joined to the output neutral, complying with the natural earth
inverter requirements if you what to maintain a trough earth simply connect the input earth to the
output earth.
NEW FEATURES:
1. LCD Digital Display Panel, can show voltage, battery and load details and adjust voltage or frequency.
2. Add inside MPPT solar charger controller 12v/24v 40A. (Optional)
3. Add remote control LCD panel with 5meters length cable. (Optional)
Advantages:
l. Pure sine wave combined inverter charge
l. 4 step progressive charging 7 battery type selector
l. Easy to install & easy to useo useo use
l. Highpower,Multistage Battery charger
l. Automatically and swiftly line to battery switchover
l. High efficiency using lineinteractive circuit topology
l. Microprocessor control guarantees high reliability
l. Bypass without battery connected
When the POWER STAR LW is in the inverter mode, the ' through the box' earth line is automatically
disconnected from the input earth and joined to the output neutral, complying with the natural earth
inverter requirements if you what to maintain a trough earth simply connect the input earth to the
output earth.
| Model No. | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | ||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave Wave Wave | |||||
| Voltage | 120VAC/230VAC | |||||
| Acceptable Voltage | 194-243VAC/164-243VAC(wide mode ) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%)mode±4%)smn;4%)mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%)mode±4%)smn;4%)mode±4%) | |||||
| Line high Transfer | 135V±4%/253±4%%/253±4%usmn;4%%/253±4% | |||||
| Line high Return | 127V±4%/243±4%%/243±4%usmn;4%%/243±4% | |||||
| Frequency | 50Hz or 60Hz (auto sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | |||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave ( bypass mode sync to input )put )put ) | |||||
| Voltage | 120/220/230/240VAC ( bypass mode sync to input ) | |||||
| Voltage Regulation | ±10%rms ( bypass mode sync to input ) input ) input ) | |||||
| Frequency | 50Hz±0.3Hz ( bypass mode sync to input ) input ) input ) | |||||
| Peak Power | 3 times of rating power | |||||
| Short Circuit Protection | Yes,shutdown after 10ms | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |||||
| Max Charging Current | 35A/70A | |||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| Line Mode | > 95% | |||||
| Battery Mode | > 88% | |||||
| power saver | Available when the load is less than 25 Watts | |||||
| Indicators | ||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting) , LED2 inverter mode | |||||
| (green lighting) , LED3 charging mode ( yellow lighting ), LED4 Fully charged | ||||||
| (green lighting) , LED5 over heat shutdown(red lighting ), LED6 Overloaded | ||||||
| shutdown ( red lighting ), LED7 Saving Mode ( green lighting ) | ||||||
| 3-LED Display | Charging Mode(green lighting) , inverter mode(green lighting) , Alarm ( red lighting ) | |||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | |||||
| turning the inverter off. | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105 °C and shutdown after 30 seconds.onds.onds. | |||||
| Protections | low battery , over charging , over temp , over load | |||||
| Communications | RS-232/USB(custom-made ) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40 °C ,0-90%RH(non-condensing)sing)sing) | |||||
| Audible Noise | < 60dB60dB | |||||
