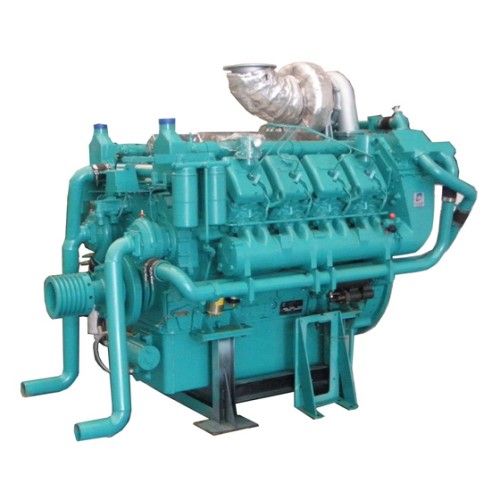

Famous Diesel/Gas Engine by Googol 800kVA-1000kVA

Famous Diesel/Gas Engine by Googol 800kVA-1000kVA

50000-100000 USD

add to cart
Model NO. QTA2160-G1
Speed High Speed
Intake Pressure Impulse Supercharged
Fuel Diesel, Diesel Engine
Cylinder Arrangement Form V
Certificate ISO9001
Trademark Googol
Origin China
Ignition Mode Electric Ignition
Cooling Cylinder Water-Cooled
Piston Movement Reciprocating
Number of Strokes Four-Stroke
Number of Cylinders Multi-Cylinder Machines
Warranty 1year or 1000hours
Specification ISO3046, ISO8528
HS Code 8502120000
Famous Diesel/Gas Engine by Googol 800kVA-1000kVA
Series: QTA2160
Displacement: 35.4L
Speed: 1500rpm or 1800rpm
Governor: Electrics
Cooling System: Fan with Radiator
Flywheel: SAE-0
Four Stroke
Bore*Stroke: 170*195
800kVA-1000kVA
Engine Model QTA2160-G1
Speed (rpm) 1500
Frequency (Hz) 50
Engine Standby Output (kW) 983
Engine Prime Output (kW) 889
Fan Reduction (kW) 35
Net Standby Output (kW) 948
Net Prime Output (kW) 854
Standby Electrical Generation Output (kVA) 1125
Standby Electrical Generation Output (kW) 900
Prime Electrical Generation Output (kVA) 1013.75
Prime Electrical Generation Output (kW) 811
Typical Alternator Efficiency 95%
Typical Power Factor 0.8
Basic Performance Datasheet
Aspiration Type Turbocharged, air-water aftercooled
Injection Type Direct Injection
Configuration Vee
No. of Cylinders 8
Displacement (l) 35.4
Bore (mm) 170
Stroke (mm) 195
Compression Ratio 13.5: 1
Piston Speed (m/s) 9.75
Rotation Direction (from flywheel) Counter Clockwise
Static Speed Droop ≤ 5%; 5%; 5%
Flywheel House Size SAE0-21
Lubrication System
Lube Oil Specification API-CF4
Oil Capacity (l) 140
Max. Premissiable Oil Temperature (° C)g; C)g; C) 89
Oil Pressure Warning (bar) 3.2
Oil Pressure Shutdown (bar) 2.2
Cooling System
Coolant Capacity for Engine (l) 75
Max. Prenissiable Temperature (° C)g; C)g; C) 81
Max. Coolant Warning Temperature (° C)g; C)g; C) 84
Max. Coolant Shutdown Temperature (° C)g; C)g; C) 89
Thermostat Open Temperature (° C)g; C)g; C) 74
Flow of Coolant pump (m³ /h)3; /h)3; /h) 49
Fuel System
Governor Type Electrical
Fuel Consumption at 25% of Full Load (l/h) 57.5
Fuel Consumption at 50% of Full Load (l/h) 100.9
Fuel Consumption at 75% of Full Load (l/h) 151.4
Fuel Consumption at 100% of Full Load (l/h) 201.9
Intake & Exhaust Systemystemystem
Combustion Air Consumption (m³ /h)3; /h)3; /h) 5169
Max. Intake Restriction (mbar) 20.5
Max. Exhaust Temperature (° C)g; C)g; C) 435
Max. Exhaust Back Pressure (mmHg) 76
Exhaust Gas Flow (m³ /h)3; /h)3; /h) 14465
Exhaust Flange Diameter (mm) 250
Electrical System
Charging Alternator Voltage (V) 28
Charging Alternator Capacity (A) 35
Starting Voltage (V) 24
Starting Motor Capacity (kW) 9
Minimum Battery Capacity (Ah) 2*200
Engine Dimension
Length (mm) 2596
Width (mm) 1459
Height (mm) 1820
Engine Dry Weight w/o Cooling System 3500
