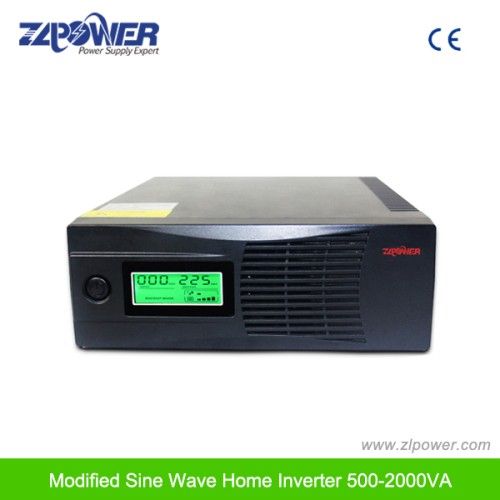

Home Inverter Modified Sine Wave Output 500va-2000va 12V 24V
| Model NO. | IG500VA-IG2000VA |
| Input Phase | Single Phase |
| Frequency | 50Hz/60Hz |
| Power Factor | 0.6 |
| DC to AC Efficiency | 80% |
| Noise | Less Then 50db |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8504403090 |
| Capacity | 500va~2000va |
| Input Voltage Range | 90-280V |
| Wave Form | Modified Sine Wave |
| AC to AC Efficiency | 98% |
| Transfer Time | 15ms, 50ms Max |
| Trademark | ZLPOWER/OEM |
| Origin | Shenzhen, China |
IG series modified sine wave home Inverter 500~2000VA is mainly used for home appliances and small office equipments.
Main Features:
Adopt advanced MCU microprocessor control technology.
Modified sine wave output.
User selectable for wide or narrow input voltage range.
Full automatic and silent operation.
Intelligent speed fan to release heat.
Compact size for convenient use and storage
Built-in 10Amp super charger for up to 200Ah battery, off charging mode, even inverter not start, it can still charge.
Small scale and cost effective inverter for home appliances and office equipment
Multi-functional LED indicator light and alarm device.
Main Features:
Adopt advanced MCU microprocessor control technology.
Modified sine wave output.
User selectable for wide or narrow input voltage range.
Full automatic and silent operation.
Intelligent speed fan to release heat.
Compact size for convenient use and storage
Built-in 10Amp super charger for up to 200Ah battery, off charging mode, even inverter not start, it can still charge.
Small scale and cost effective inverter for home appliances and office equipment
Multi-functional LED indicator light and alarm device.
| Home Inverter MODEL | IG500 | IG1000 | IG1000 | IG2000 | |
| CAPACITY | VA/W | 500VA / 300W | 1000VA/600W | 1000VA / 600W | 2000VA / 1200W |
| INPUT | Phase | Single phase | |||
| Voltage | 220 / 230 / 240VAC | ||||
| Voltage Range | 170-280VAC ( Narrow Range ) | ||||
| 90-280VAC (Wide Range) | |||||
| OUTPUT | Phase | Single phase | |||
| Voltage | 230VAC | ||||
| Voltage Regulation(Batt. Mode) | +10% ~ 18% | ||||
| Frequency | 50Hz or 60Hz | ||||
| Frequency Regulation (Batt. Mode) | +/- 0.1 Hz | ||||
| Output Waveform (Batt. Mode) | Modified Sine Wave | ||||
| POWER FACTOR | P.F. | 0.6 | |||
| DC Voltage | 12V | 12V | 24V | 24V | |
| BATTERY | Charger Current | 8 Amp + / - 1Amp | 8 Amp + / - 1Amp | 10 Amp + / - 1Amp | 10 Amp + / - 1Amp |
| Floating Voltage | 13.7V + / - 0.2V | 13.7V + / - 0.2V | 27.4V + / - 0.4V | 27.4V + / - 0.4V | |
| Overcharge Protection | 15V +/- 0.3V charger stops and fault | 15V +/- 0.3V charger stops and fault | 30V +/- 0.6V charger stops and fault | 30V +/- 0.6V charger stops and fault | |
| TRANSFER TIME | Typical | 8ms | |||
| EFFICIENCY | DC to AC | >80% | |||
| INDICATOR | AC Mode | Green LED lighting | |||
| Battery Mode | Yellow LED lighting | ||||
| Battery Charging Mode | Green LED flashing every 2 seconds | ||||
| Overload | Red LED flashing every 0.5 second | ||||
| Fault | Red LED lighting | ||||
| AUDIBLE ALARM | Low Battery at Battery Mode | Sounding every 2 seconds | |||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continously sounding | ||||
| PROTECTION | Full Protection | Deep Discharge, Overcharge, and Overload protection | |||
| PHYSICAL | Dimension (L x W x H) mm | 224 X 255 X 80 | |||
| Net Weight (kgs) | 1.7 | 1.9 | 2.2 | 2.5 | |
| ENVIRONMENT | Operating Environment | 0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing) | |||
| Noise Level | Less than 50dB | ||||
