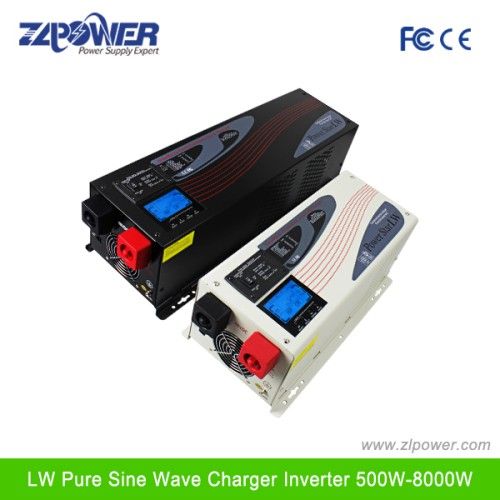

500W~12kw off Grid Pure Sine Power Inverter

500W~12kw off Grid Pure Sine Power Inverter

bargain

add to cart
Model NO. LW500-LW8000
Certification CE
Circuit Topologies Full-Bridge Type
Type DC/AC Inverters
Input Voltage 110V, 220V, 230V, 240V
Peak Power 3times of Rating Power
Battery Mode Efficiency 85%
Protection Low Battery, Over Charging, Over Load, etc.
Communications RS232 Optional
Specification CE
HS Code 8504403090
Nature of Source Flow Active Inverter
Output Power >1000W
Nature of Wave String Sine Wave Inverter
Nominal Power 500W~12kw
Frequency 50Hz/60Hz
Power Factor 0.9-1.0
AC Mode Efficiency 96%
Audible Noise 60dB
Trademark ZLPOWER
Origin China
Application:
All kinds of home appliances,office equipments,solar power systems, and other equipments which use single phase power
Key Features:
*Pure sine wave output, available for sensitive load
*4-step progressive charging, 7 battery type selector
*Fast and powerful charger with 35A and 70A
*High power factor
*Automatically transfer between battery and line modes
*Over load, over charge.low battery,over temperature protection
Product Series LW 1000 LW 1500 LW 2000 LW 3000 LW 4000 LW 5000 LW 6000
General Specification Input Wave form Sine wave (Utility or Generator)
Nominal voltage 120VAC 230VAC
Low voltage trip 90v + 4% 184v/154v + 4%
Low voltage reconnect 100v + 4% 194v/164v + 4%
High voltage trip 140v + 4% 253v + 4%
High voltage reconnect 135v + 4% 243v + 4%
Max input AC voltage 150VAC 270VAC
Nominal input frequency 50Hz or 60Hz (Auto detect)
Low freq trip 47Hz for 50Hz, 57Hz for 60Hz
High freq trip 55Hz for 50Hz, 65Hz for 60Hz
Output wave form (Bypass mode) same as input
Overload protection Circuit breaker
Short circuit protection Circuit breaker
Transfer switch rating 30amp or 40amp
Efficiency on line transfer time 95%+
Line transfer time 10ms Typical
Bypass without battery connected yes
Max bypass current 30amp or 40amp
Bypass overload current 35amp or 45amp: Alarm
Inverter Specification Output Output wave form Pure sine wave
Output continuous power watts 1000 1500 2000 3000 4000 5000 6000
Output continuous power VA 1000 1500 2000 3000 4000 5000 6000
Power factor 0.9-1.0
Nominal output voltage rms 120/230VAC
Output voltage regulation 10% rms
Output frequency 50Hz + 0.3Hz or 60Hz + 0.3Hz
Nominal efficiency > 88%
Surge ratings 3000 4500 6000 9000 12000 15000 18000
Short circuit protection Yes, fault after 10 seconds
Inverter Specification Input Nominal input voltage 12V 24V 48V
Minimum start voltage 10V 20V 40V
Low battery alarm 10.5V 21V 42V
Low battery trip 10V 20V 40V
High voltage alram 16V 32V 64V
Power saver Below 25watts when enabled
Power saver Same switched on/off on remote
Charge Mode Specification Input voltage range 95-127VAC 194-243VAC/ 164-243VAC(W)
Output voltage range Dependent on battery type
Charge current 35A/70A
Battery initial voltage for start up 0-15.7v for 12v (*2 for 24v; *4 for 48v)
Over charge protection shutdown 15.7v for 12v (*2 for 24v; *4 for 48v)
Others Remote control/RS232/USB Yes, Optional
Size: in mm 1000/2000/3000 Model: 442*218*179
4000/5000/6000 Model: 598*218*179
Net weight LW1000 LW1500 LW2000 LW3000 LW4000 LW5000 LW6000
20.00kgs 20.00kgs 20.00kgs 26.00kgs 48.00kgs 48.00kgs 48.00kgs
