110V/120V DC to AC Power Inverter 1000-4000W

bargain

Model NO.	LW1000-LW4000
Certification	CE
Grid Type	off-Grid Inverter
Circuit Topologies	Full-Bridge Type
Type	DC/AC Inverters
Input Phase	Single Phase
Peak Power	3times of Rating Power
Power Factor	0.9~1.0
Battery Mode Efficiency	85%
Product Status	in Stock
Specification	CE&ISOmp;ISOp;ISO
HS Code	8504402000
Nature of Source Flow	Active Inverter
Output Power	1000W~4000W
Output Type	Single
Nature of Wave String	Sine Wave Inverter
Nominal Voltage	100V, 110V, 120V/220V, 230V, 240V
Wave Form	Pure Sine Wave
Short Circuit Protection	Yes, Shutdown After 10ms
AC Mode Efficiency	96%
Noise	60dB
Trademark	ZLPOWER
Origin	China

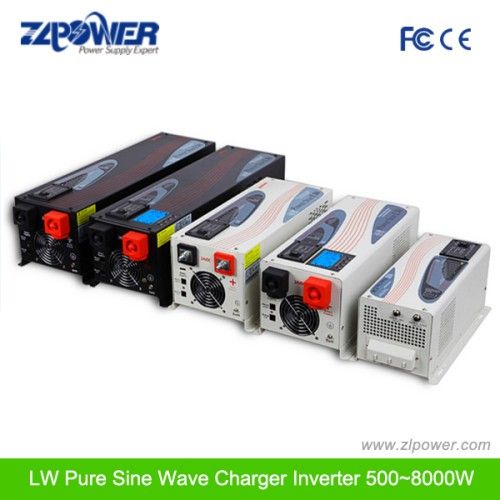

LW Inverter Series 1000W-4000W 110V/120Vac output
Application: All kinds of home applicance,office equipment, solar power system,and other
equipments which use single phase power
Key Features:
♦Pure sine wave output, available for sensitive loadve loadve load
♦3-step progressive charging,7 battery type selectorelectorelector
♦35A/50A/70A/90A (According to the inverter model) model) model)
♦Accept generator's energy output output output
♦Automatically transfer between battery and line modese modese modes
♦Microprocessor control guarantees high reliabilityabilityability
♦Bypass without battery connectednnectednnected
♦Remote control functionunctionunction
♦Protection against Over load, over temperature, over charging, low batterybatterybattery
Reverse connection (optional by hard connector)
Warranty: 24months
Delivery time: 3-15days
Specificaiton:

Model Parameters		LW1000	LW2000	LW3000	LW4000
AC Input	Nominal Power	1000W	2000W	3000W	4000W
	Voltage	120VAC/230VAC
	Acceptable Voltage	194-243VAC/164-243VAC(wide mode)
	Line low Transfer	85V±4%/184(154 wide mode±4% )ode±4% )mn;4% )ode±4% )
	Line low Return	95V±4%/194(164 wide mode±4% )ode±4% )mn;4% )ode±4% )
	Line high Transfer	135V±4%/253±4%%/253±4%usmn;4%%/253±4%
	Line high Return	127V±4%/243±4%%/243±4%usmn;4%%/243±4%
	Frequency	50Hz or 60Hz
	Line low Transfer	47Hz for 50Hz, 57Hz for 60 Hz
	Line high Transfer	55Hz for 50Hz, 65Hz for 60 Hz
Out Input	Phase &waveformeformeform	Pure Sine Wave(bypass mode sync to input)
	Voltage	100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input)
	Voltage Regulation	±10%rms(bypass mode sync to input)o input)o input)
	Frequency	50Hz±0.3Hz(bypass mode sync to input)o input)o input)
	Peak Power	3 times of rating power
	Short Circuit Protection	Yes, shutdown after 10ms
	Power Factor	0.9-1.0
Solar Charger	Battery Voltage	12V/24V/48V			24V/48V
	Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
	Low Battery Alarm	10.5V for 12V, 21V for 24V, 42V for 48V
	Low Battery Transfer	10V for 12V, 20V for 24V, 40V for 48V
	High Voltage Alarm	16V for 12V, 32V for 24V,64V for 48V
	Max Charging Current	35A/70A
	Over charge Voltage	15.7V for 12V,31.4V for 24V, 62.8V for 48V
Transfer Efficiency	Line Mode	>95%
	Battery Mode	>88%
	Power saver	Available when the load is less than 25 Watts
Indicators	Switch selector	Saving Mode is on/off when push the switch forwards/backwards ,Keeping it horizontal is turning the inverter off.
	Audible Alarm	Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds.conds.conds.
	Protections	low battery/ over charging /over temp/over load
	Communications	RS-232/USB(custom-made)
Enviromental	Operating Environment	0-40ºC,0-90%ºC RH(non-condensing)condensing)condensing)
	Audible Noise	<60dB60dB
	Net Weight (KG)	14.5	19	24.5	34.5
	Dimension(LxWxH)	480×225×190mm5×190mm;190mm5×190mm			660×225×200mm5×200mm;200mm5×200mm
