Pure Sine Wave Solar Power Inverter Charger
| Model NO. | LW500-LW12000 |
| Phase | Single |
| Certification | CE, ISO9001 |
| Type | Standby |
| Circuit Topologies | Full-Bridge Type |
| Capacity | 500-12000W |
| Wave Form | Pure Sine Wave |
| Peak Power | 3 Times of Rating Power |
| Display | LCD or LED |
| Adjustable Charger by Users | Yes |
| Trademark | ZLPOWER |
| Origin | China |
| Nature of Source Flow | Active Inverter |
| Output Power | 500-12000W |
| Brand | Zlpower |
| Power Source | Solar Power, Utility Power/Solar Power |
| Nature of Wave String | Sine Wave Inverter |
| Protection | Short Circuit, Overvoltage, Overcurrent |
| Input Voltage Range | 95-126VAC or 194-253VAC±4%plusmn;4%lusmn;4% |
| Power Factor | 0.9-1.0 |
| Output Voltage | 110/220VAC |
| Application | Home Appliances |
| Specification | CE&ISOmp;ISOp;ISO |
| HS Code | 8504403090 |

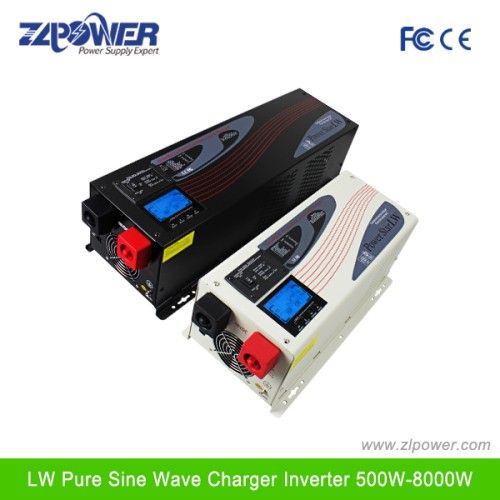

Pure Sine Wave Solar Power Inverter Charger
1: Power Inverter can auto restart when DC is back
2: Low Frequency Inverter type, with 3 times peak surge power
3: High Efficiency more than 95%
4: Inverter charger with Short Circuit Protection
Power Inverter 1KW-6KW key Features:
1: Pure sine wave output (THD < 3%) for wide range of applications and and
Harsh environment
2: Three times peak power
3: Multiple protection: Input low voltage / Overload / Short circuit / Low
Battery alarm / Input over voltage / Over temperature
4: Simple design for flexible&durable use and cost saving.ving.ving.
5: Nice applications for Air Conditions, laser-printers, microwave
Oven, refrigeratory and so on.
3 years quality guaranty
Delivery time: Within 10 days
Certificate: CE&ISOp;ISOp;ISO
1: Power Inverter can auto restart when DC is back
2: Low Frequency Inverter type, with 3 times peak surge power
3: High Efficiency more than 95%
4: Inverter charger with Short Circuit Protection
Power Inverter 1KW-6KW key Features:
1: Pure sine wave output (THD < 3%) for wide range of applications and and
Harsh environment
2: Three times peak power
3: Multiple protection: Input low voltage / Overload / Short circuit / Low
Battery alarm / Input over voltage / Over temperature
4: Simple design for flexible&durable use and cost saving.ving.ving.
5: Nice applications for Air Conditions, laser-printers, microwave
Oven, refrigeratory and so on.
3 years quality guaranty
Delivery time: Within 10 days
Certificate: CE&ISOp;ISOp;ISO
| Inverter MODEL | 1000w | 2000w | 3000w | 4000W | 5000w | 6000w | ||||||
| Input Voltage Waveform | Sinusoidal (utility or generator) | |||||||||||
| Nominal Input Voltage | 230Vac | |||||||||||
| Low Line Disconnect | 184Vac± 4%usmn; 4%usmn; 4% | |||||||||||
| High Line Disconnect | 253Vac± 4%usmn; 4%usmn; 4% | |||||||||||
| Max AC Input Voltage | 270Vrms | |||||||||||
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | |||||||||||
| Over-Load Protection (SMPS load) | Circuit breaker | |||||||||||
| Output Short Circuit Protection | Circuit breaker | |||||||||||
| Efficiency (Line Mode) | > 95% | |||||||||||
| Transfer Switch Rating | 30A | |||||||||||
| Transfer Time (Ac to Dc) | 20ms (typical) | |||||||||||
| Output Voltage Waveform | Sine wave | |||||||||||
| Rated Output Power (W) | 3000W | |||||||||||
| Power Factor | 0~1.0 | |||||||||||
| Nominal Output Voltage (V) | 230Vac | |||||||||||
| Output Voltage Regulation | ± 10% rms 10% rms 10% rms | |||||||||||
| Nominal Efficiency | > 80% | |||||||||||
| Nominal DC Input Voltage | 12V | 12V | 12V | 24V | 24V | 24V | ||||||
| Nominal Charge Current | 70A | 70A | 70A | 35A | 35A | 35A | ||||||
| Charge Current Regulation | ± 5Adcmn; 5Adcmn; 5Adc | |||||||||||
| Battery initial voltage | 0 - 15.7 Vdc (can operate with 0V battery) | |||||||||||
| Communication: | RJ11 (Used for factory testing. No customer interface available) | |||||||||||
| Safety Certification | Compliance with UL458 | CE(EN60950) | ||||||||||
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A | ||||||||||
| Operating Temperature Range | 0° C to 40° C40° Cg; C40° C | |||||||||||
| Storage temperature | -15º C to 60º C 60º Cdm; C 60º C | |||||||||||
| Operation humidity | 5% to 95% | |||||||||||
| Audible Noise | 60dB max | |||||||||||
| Cooling | Forced air, variable speed fan | |||||||||||
