6000W Power Inverter Charger Pure Sine Wave
| Model NO. | LW500-LW8000 |
| Type | DC/AC Inverters |
| Application | Solar Station, Wind Turbine and Home Inverter |
| Input DC Voltage | 12V, 24V, 48V DC |
| Frequency | 50Hz, 60Hz |
| Charger Current | 35 or 70AMP |
| Power Save | When Load Less Than 25W |
| Specification | CE |
| HS Code | 8504409900 |
| Output Power | >1000W |
| Wave Form | Pure Sine Wave |
| Rated Power | 1000W-6000W |
| Output AC Voltage | 110V, 120V, 220V, 230V |
| Peak Power | 3 Times as Rated Power |
| Output Efficiency | 96% |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |

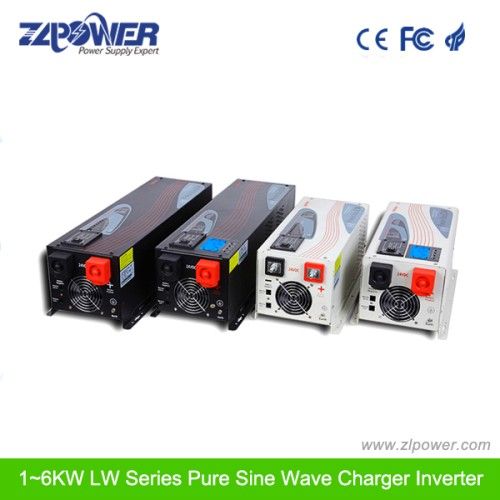

LW Pure Sine Wave Inverter Charger 1000W-6000W, LCD digital display, 3times peak power, low frequency type with transformer, UPS function.
It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Main Features:
LCD digital display show voltage, load and battery info in real time.
Peak power is three times of rated power.
Can work with inductive load such as air conditioner, motor door and so on.
Pure sine wave output, available for sensitive load.
4-step progressive charging, 7 battery type selector.
Fast and powerful charger with 35A and 70A.
Accept generator's energy output.
High power factor 0.9, low power consumption.
Automatically transfer between battery and line modes.
Microprocessor control guarantees high reliability.
Bypass without battery connected.
Remote control function.
Protection against: Over load, over temperature, over charging, low battery
Reverse connection (optional by hard connector), Blackouts
It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emergency EPS.
Main Features:
LCD digital display show voltage, load and battery info in real time.
Peak power is three times of rated power.
Can work with inductive load such as air conditioner, motor door and so on.
Pure sine wave output, available for sensitive load.
4-step progressive charging, 7 battery type selector.
Fast and powerful charger with 35A and 70A.
Accept generator's energy output.
High power factor 0.9, low power consumption.
Automatically transfer between battery and line modes.
Microprocessor control guarantees high reliability.
Bypass without battery connected.
Remote control function.
Protection against: Over load, over temperature, over charging, low battery
Reverse connection (optional by hard connector), Blackouts
| Model No. | LW1000 | LW1500 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | |||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave Wave Wave | ||||||
| Voltage | 120VAC/230VAC | ||||||
| Acceptable Voltage | 194-243VAC/164-243VAC (wide mode) | ||||||
| Line Low Transfer | 85V±4%/184 (154 wide mode±4%)mode±4%)smn;4%)mode±4%) | ||||||
| Line Low Return | 95V±4%/194 (164 wide mode±4%)mode±4%)smn;4%)mode±4%) | ||||||
| Line high Transfer | 135V±4%/253±4%%/253±4%usmn;4%%/253±4% | ||||||
| Line high Return | 127V±4%/243±4%%/243±4%usmn;4%%/243±4% | ||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | ||||||
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | ||||||
| Output | |||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave (bypass mode sync to input)nput)nput) | ||||||
| Voltage | 120/220/230/240VAC (bypass mode sync to input) | ||||||
| Voltage Regulation | ±10%rms (bypass mode sync to input)o input)o input) | ||||||
| Frequency | 50Hz±0.3Hz (bypass mode sync to input)o input)o input) | ||||||
| Peak Power | 3 times of rating power | ||||||
| Short Circuit Protection | Yes, shutdown after 10ms | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | |||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | ||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 64V for 48V | ||||||
| Max Charging Current | 35A/70A | ||||||
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | ||||||
| Transfer Efficiency | |||||||
| Line Mode | >95% | ||||||
| Battery Mode | >88% | ||||||
| power saver | Available when the load is less than 25 Watts | ||||||
| Indicators | |||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting)/LED2 inverter mode | ||||||
| (green lighting)/LED3 charging mode(yellow lighting)/LED4 Fully charged | |||||||
| (green lighting)/LED5 over heat shutdown(red lighting)/LED6 Overloaded | |||||||
| shutdown(red lighting)/LED7 Saving Mode(green lighting) | |||||||
| 3-LED Display | Charging Mode(green lighting)/inverter mode(green lighting)/ Alarm(red lighting) | ||||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | ||||||
| turning the inverter off. | |||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105centi-degree and shutdown after 30 seconds. | ||||||
| Protections | low battery/over charging/over temp/over load | ||||||
| Communications | RS-232/USB(custom-made) | ||||||
| Environmental | |||||||
| Operating Environment | 0-40centi-degree,0-90%RH(non-condensing) | ||||||
| Audible Noise | <60dB60dB | ||||||
| Physical | |||||||
| Net Weight(KG) | 18 | 20 | 20 | 26 | 48 | 48 | 48 |
| Dimension, L X W X H(mm) | 446*218*179 | 605*218*179 | |||||
