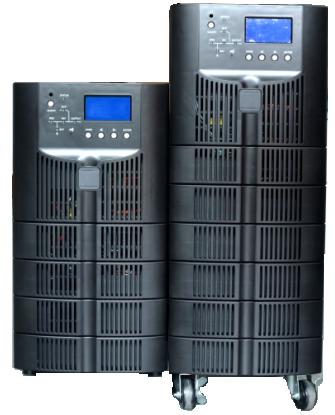

6-20kVA Single Phase Three Phase 0.9pf Online UPS
| Model NO. | HT1106 HT1110 HT1115 HT1120 HT3110 HT3115 HT3120 |
| Type | On-line |
| Application | Communication |
| Standby Time | Long-acting Machine |
| Output Capacity | Medium Type |
| Brand | Invt |
| Output Voltage | 200V/208V/220V/230V/240V |
| Trademark | INVT |
| Origin | China |
| Phase | Single Phase |
| Protection | Overvoltage |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Output Power Factor | 0.9 |
| Power Range | 6~20kVA |
| Specification | 6~20KVA |
| HS Code | 85044020 |
Features:
High frequency and double conversion on-line technology
1.Wide input voltage range,True online UPS
1.Wide input voltage range,True online UPS
2.Battery cold start .
3.DSP technology,advantaged battery management
4.Automatical fan speed adjustment .Overload and short circuit protection
5. Large LCD status display, more information and history log
6.Complete protection functions
7.Network/Fax/modem surge protections
8.EMI/RFI noise filter
9.Smart Rs232 port with monitoring software
10. PFC technology
11.Intelligent slot for SNMP adaptor(optional)
12. Maintenance Bypass Switch(optional)
12. Maintenance Bypass Switch(optional)
| HT1106S | HT1106L | HT1110S | HT1110L | HT1115L | HT1120L | |
| INPUT | ||||||
| Cold Start | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable | ||
| Acceptable Input Voltage | 50%~125%(220VAC/230VAC/240VAC) | 50%~125%(220VAC/230VAC/240VAC) | 50%~125%(220VAC/230VAC/240VAC) | 50%~125%(220VAC/230VAC/240VAC) | ||
| 100% load@80%~125% | 100% load@80%~125% | 100% load@80%~125% | 100% load@80%~125% | |||
| 90% load@70%~80% | 90% load@70%~80% | 90% load@70%~80% | 90% load@70%~80% | |||
| 80% load@60%~70% | 80% load@60%~70% | 80% load@60%~70% | 80% load@60%~70% | |||
| 65% load@50%~60% | 65% load@50%~60% | 65% load@50%~60% | 65% load@50%~60% | |||
| Phase | Single phase in,single phase out | Single phase in,single phase out | Single phase in,single phase out | Single phase in,single phase out | ||
| Transfer Voltage Range | ||||||
| -Line low transfer | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC | ||
| -Line low recovery | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC | ||
| -Line high transfer | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC | ||
| -Line high recovery | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC | ||
| Input Current | ||||||
| -Rating(at nominal input voltage) | 32.5A | 51A | 76A | 102A | ||
| Input Power Factor | ≥0.990.990.99 | ≥0.990.990.99 | ≥0.950.950.95 | ≥0.950.950.95 | ||
| Input Frequency Range | 40Hz - 70Hz | 40Hz - 70Hz | 40Hz - 70Hz | 40Hz - 70Hz | ||
| Generator | Support Any Generator | Support Any Generator | Support Any Generator | Support Any Generator | ||
| OUTPUT | ||||||
| Frequency adaptable | Settable | Settable | Settable | Settable | ||
| Power | ||||||
| -Power(kVA) max | 6 | 10 | 15 | 20 | ||
| -Power(kW) max | 5.4 | 9 | 13.5 | 18 | ||
| Output Voltage | ||||||
| -Waveform | Pure sine wave | Pure sine wave | Pure sine wave | Pure sine wave | ||
| -Nominal voltage | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC | ||
| -Voltage regulation | ± 1 %smn; 1 %smn; 1 % | ± 1 %smn; 1 %smn; 1 % | ± 1 %smn; 1 %smn; 1 % | ± 1 %smn; 1 %smn; 1 % | ||
| -Transient response | ≤5% (50% - 100% -50%)50%)50%) | ≤5% (50% - 100% -50%)50%)50%) | ≤5% (50% - 100% -50%)50%)50%) | ≤5% (50% - 100% -50%)50%)50%) | ||
| -Transient recovery | ≤15ms (0% - 100% -0%)-0%)-0%) | ≤15ms (0% - 100% -0%)-0%)-0%) | ≤15ms(0% - 100% -0%)-0%)-0%) | ≤15ms(0% - 100% -0%)-0%)-0%) | ||
| -Voltage distortion | ≤1% THD, linear loadloadload | ≤1% THD, linear loadloadload | ≤1% THD, linear loadloadload | ≤1% THD, linear loadloadload | ||
| ≤5% THD, non-linear loadloadload | ≤5% THD, non-linear loadloadload | ≤5% THD, non-linear loadloadload | ≤5% THD, non-linear loadloadload | |||
| Output Frequency | ||||||
| -Synchronization range | settable,±3Hz default default default | settable,±3Hz default default default | settable,±3Hz default default default | settable,±3Hz default default default | ||
| -Slew rate | 0.5~5Hz/s,2 Hz/s default | 0.5~5Hz/s,2Hz/s default | 0.5~5Hz/s,2Hz/s default | 0.5~5Hz/s,2Hz/s default | ||
| -Battery mode | (50±0.05) Hz0.05) Hz0.05) Hz | (50±0.05) Hz0.05) Hz0.05) Hz | (50±0.05) Hz0.05) Hz0.05) Hz | (50±0.05) Hz0.05) Hz0.05) Hz | ||
| Transfer Time | ||||||
| -Line mode to battery mode | 0 | 0 | 0 | 0 | ||
| -Inverter to bypass | 0.1ms | 0 | 0 | 0 | ||
| Efficiency | ||||||
| -Line mode with battery full charged | 93.0% | 93.0% | 93.0% | 93.0% | ||
| -ECO mode | 98.0% | 98.0% | 98.0% | 98.0% | ||
| -Battery mode | 92.0% | 92.0% | 92.0% | 92.0% | ||
| Noise | <48dB@<70%load,<58dB@>70%load;1m away%load;1m away | <48dB@<70%load,<60dB@>70%dB;1m away70%dB;1m away | ||||
| Overload Capability (Line Mode) | 110%: Transfer to bypass after 60 mins. | 110%: Transfer to bypass after 60 mins | 110%: Transfer to bypass after 60 mins | 110%: Transfer to bypass after 60 mins | ||
| 130%: Transfer to bypass after 1 min | 130%: Transfer to bypass after 1 min | 130%: Transfer to bypass after 1 min | 130%: Transfer to bypass after 1 min | |||
| 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | 150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode) | |||
| Overload Capability (Battery Mode) | 110%: Shutdown after 10mins (Battery mode) | 110%: Shutdown after 10mins (Battery mode) | 110%: Shutdown after 10mins (Battery mode) | 110%: Shutdown after 10mins (Battery mode) | ||
| 125%:Shutdown after 10s(Battery mode) | 125%:Shutdown after 10s(Battery mode) | 125%:Shutdown after 10s(Battery mode) | 125%:Shutdown after 10s(Battery mode) | |||
| ﹥125%: Shutdown after 1s (Battery mode)ode) | ﹥125%: Shutdown after 1s (Battery mode)ode) | ﹥125%: Shutdown after 1s (Battery mode)ode) | ﹥125%: Shutdown after 1s (Battery mode)ode) | |||
| Crest Ratio | 3:1 | 3:1 | 3:1 | 3:1 | ||
| BATTERY | ||||||
| Rating/Type | 12VDC/7Ah | Depend on the capacity of external batteries | 12VDC/9Ah | Depend on the capacity of external batteries | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Quantity | 16 | 16 | 16 | 16 | ||
| DC Voltage | 192VDC | 192VDC | 192VDC | 192VDC | ||
| Back-up Time | 4mins @80% load | Depend on the capacity of external batteries | 3.5mins @80% load | Depend on the capacity of external batteries | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Battery-Low Voltage | (176±3)VDCmn;3)VDCmn;3)VDC | (176±3)VDCmn;3)VDCmn;3)VDC | (176±3)VDCmn;3)VDCmn;3)VDC | (176±3)VDCmn;3)VDCmn;3)VDC | ||
| Charger | ||||||
| -Charging voltage | (220±1%)VDCn;1%)VDCn;1%)VDC | (220±1%)VDCn;1%)VDCn;1%)VDC | (220±1%)VDCn;1%)VDCn;1%)VDC | (220±1%)VDCn;1%)VDCn;1%)VDC | ||
| -Charging current (max) | 1A | 5A | 1A | 5A | 5A | 5A |
| -Charging time | 7h recharge to 90% | Depend on the capacity of external batteries | 8h recharge to 90% | Depend on the capacity of external batteries | Depend on the capacity of external batteries | Depend on the capacity of external batteries |
| Leakage current | <1mA;1mA | <1mA;1mA | <1mA;1mA | <1mA;1mA | ||
| INDICATOR & ALARMALARMALARM | ||||||
| Display | LED+LCD | LED+LCD | LED+LCD | LED+LCD | ||
| Alarm | Sounding once per second | Sounding once per second | Sounding once per second | Sounding once per second | ||
| Fault | Continuous beeping | Continuous beeping | Continuous beeping | Continuous beeping | ||
| INTERFACE | ||||||
| Smart RS232 | Standard Cable support INVT Power Monitor Software | Standard Cable support INVT Power Monitor Software | Standard Cable support INVT Power Monitor Software | Standard Cable support INVT Power Monitor Software | ||
| Dry Contactor | 5 Ports | 5 Ports | 5 Ports | 5 Ports | ||
| SNMP(option) | Power Managment from SNMP Manager and Web Browser | Power Managment from SNMP Manager and Web Browser | Power Managment from SNMP Manager and Web Browser | Power Managment from SNMP Manager and Web Browser | ||
| OPTION | ||||||
| ECO Kit | YES | YES | YES | YES | YES | YES |
| Long Parallel Cable | YES | YES | YES | YES | YES | YES |
| Parallel Kit | YES | YES | YES | YES | YES | YES |
| SNMP | YES | YES | YES | YES | YES | YES |
| MECHANICAL | ||||||
| W*L*H (mm) | 250*526*480 | 250*526*640 | 250*526*480 | 250*526*640 | 250*544*750 | 250*544*750 |
| Net Weight (KG) | 57 | 18 | 65 | 20 | 33 | 33 |
| Color | Black | Black | Black | Black | ||
