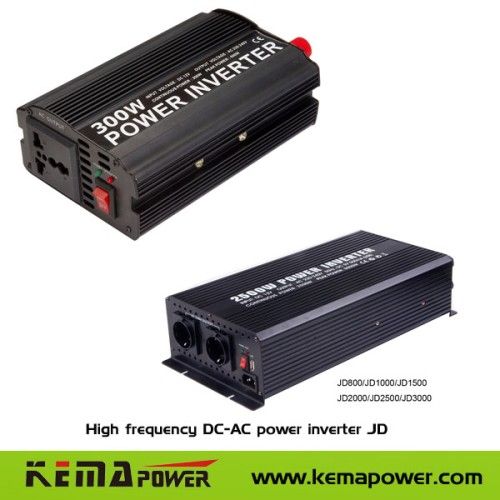

off Grid High Frequency Inverter (JD400)

off Grid High Frequency Inverter (JD400)

100+
20-30 USD

add to cart
Model NO. JD400
O/P 220V,110V ±10 Vusmn;10 Vsmn;10 V
Wave Form:Modified Sine Wave
Specification 300W-600W
Size 300-600W:12VDC/24VDC
Capacity 300-3000W
Trademark Kemapower
Origin China
High Frequency Power Inverter (JD300)
* High frequency DC-AC power inverter
* I/P:300-600W:12VDC/24VDC
* O/P:220V,110V ±10 Vusmn;10 Vsmn;10 V
* Capacity:300-3000W
* Wave Form:modified sine wave
* Bat.:12VDC or 24VDC External battery
* Stand by Function
* Special design for Off Grid Solar System inverter
1. High frequency DC-AC power inverter
2. Single phase modefied sine wave ouput
3. Full range protection for the inverter and the battery.
4. With USB port
5. Smaller and light
6. Modified sine wave
7. LED display and alarm
8. Two times surge power.
Mode JD 300 JD 400 JD 500 JD 600
Continuous power (W) 300 400 500 600
Surge capability (W) 600 800 1000 1200
DC input (VDC) 12/24 12/24 12/24 12/24
DC input range 10.5V to 15.5V±0.3 or 21V to 31V±0.3 31V±0.3smn;0.3 31V±0.3
AC output 220V,110V ±10 Vsmn;10 Vsmn;10 V
Output frequency 50/60±5 HZsmn;5 HZsmn;5 HZ
Output waveform Modified sine wave
Efficiency >85%
Battery low alarm 10.2-10.8V or 20.4-21.6V
Over discharge protection 10 ±0.5V or 20±0.5V shut offn;0.5V shut offn;0.5V shut off
Resume voltage 11.7V--12.8V or 23.4-25.6V auto restart
Over voltage protection 15V-16.5V, 30-33V shut off.
Overload protection Shut off while over 120% rated capacity
With cooling fan Yes
USB Optional Yes Yes
DC conection With cable
Connection convertor Yes Yes Yes Yes
Product package Paper skin
Running temperature 20 to 40 degree
High temperature protection Yes
Short circuit protection Yes
Reverse polarity protection Yes
Product size(mm) 150*102*55 150*102*55 200*102*55 200*102*55
Carton size (mm) 575*340*450 575*340*450 575*340*450 575*340*450
Carton weight (kg) 20 21.5 25 26
PCS /CTN 20 20 20 20
