High Frequency Msw Power Inverter (JD-N300-1500W)

High Frequency Msw Power Inverter (JD-N300-1500W)

100+
30-70 USD

add to cart
Model NO. JD-N300-1500W
O/P 220V, 110V ±10 Vusmn;10 Vsmn;10 V
Wave Form Modified Sine Wave
Specification JD-N300-1500W
I/P 300-1500nw:12VDC/24VDC
Capacity 300-1500W
Trademark KEMAPOWER
Origin China

High Frequency MSW power inverter (JD-N300-1500W)
* I/P:300-1500NW:12VDC/24VDC
* O/P:220V,110V ±10 Vsmn;10 Vsmn;10 V
* Capacity:300-1500W
* Wave Form:modified sine wave
* Bat.:External battery
* Stand by Function
* Special design for Off Grid Solar System inverter
Key Features
1.High frequency DC-AC power inverter
2.Single phase modefied sine wave ouput
3.with USB port
4.Smaller and light
5.Modified sine wave
6.LED display and alarm
7.Two times surge power
8.Full range protection for the inverter and the battery.
Technical Specifications

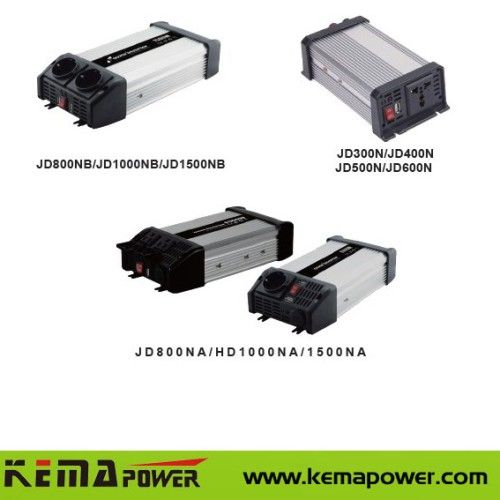

Mode JD300N JD400N JD500N JD600N JD800NA/B JD1000NA/B JD1500NA/B
Continuous power (W) 300 400 500 600 800 1000 2000
Surge capability (W) 600 800 1000 1200 1600 2000 4000
DC input (VDC) 12/24 12/24 12/24 12/24 12/24 12/24 12/24
DC input range 10.5V to 15.5V±0.3 or 21V to 31V±0.3 31V±0.3smn;0.3 31V±0.3
AC output 220V,110V ±10 Vsmn;10 Vsmn;10 V
Output frequency 50/60±5 HZsmn;5 HZsmn;5 HZ
Output waveform Modified sine wave
Efficiency >85%
Battery low alarm 10.2-10.8V or 20.4-21.6V
Over discharge protection 10 ±0.5V or 20±0.5V shut offn;0.5V shut offn;0.5V shut off
Resume voltage 11.7V--12.8V or 23.4-25.6V auto restart
Over voltage protection 15V-16.5V, 30-33V shut off.
Overload protection Shut off while over 120% rated capacity
With cooling fan Yes
USB Yes
DC conection With cable
Connection convertor Yes Yes Yes Yes No No No
Product package Paper skin
Running temperature 20 to 40 degree
High temperature protection Yes
Short circuit protection Yes
Reverse polarity protection Yes
Product size(mm) 165*95*50 165*95*50 215*100*55 215*100*55 265*136*65 265*136*65 265*136*65
Carton size (mm) 420*305*365 420*305*365 515*305*365 515*305*365 560*335*180 560*335*180 560*335*180
Carton weight (kg) 17.5 18 22 23 11.5 11.5 13
PCS /CTN 20 20 20 20 10 5 5
Remark JD*NA with DC port of max 150W
