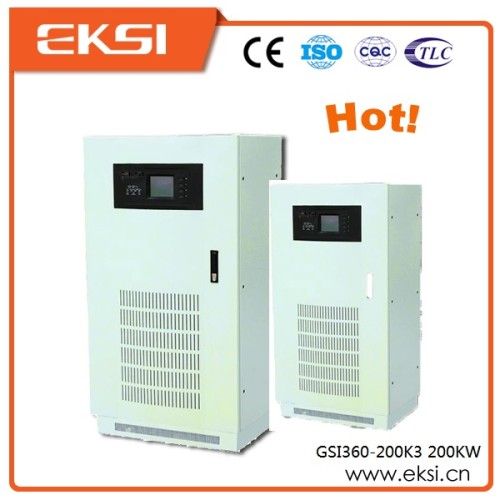

Pure Sine Wave Output off Grid PV Inverter (200kw)
| Model NO. | GSI360-200K3 (200KW) |
| Type | DC/AC Inverters |
| Output Power | >1000W |
| Nature of Source Flow | Passive inverter |
| Application | All |
| Brand | Eksi |
| DC Voltage | 360VDC |
| Crest Factor | 3:1 |
| Recovery Time | Less Than 10ms |
| Size | 1105*1810*900mm |
| Color | Black |
| Specification | CE |
| HS Code | 8504329000 |
| Phase | Three |
| Power Source | Electric Power |
| Nature of Wave String | Sine Wave Inverter |
| Circuit Topologies | Full-Bridge Type |
| Certification | CE, ISO9001 |
| Rated Power | 200kw |
| Rated Frequency | 50Hz |
| Output Wave | Sine Wave |
| Weight | 1100 |
| Noise | 45-55 |
| Trademark | EKSI |
| Origin | China |
1. Gerernal information:
GSI series three-phase off grid inverter (GSI360-200K3 200kw) is designed and manufactured for new energy power system, mainly apply for PV power station, wind, light, oil,storage complementary generating system and the filed of Photovoltaic power system. Especially need three-phase four wires AC place.
We use the new energy power generation with high inverter efficiency and advanced performance to provide absolute reliability for Traffic inconvenience, harsh mountains, pasturing area, border defence,island,etc without electricity area,and can adopt large power three-phase inverter to take the collective power supply mode for no power area.
2. Specifications:
Model | GSI 360-40K3 | GSI 360-60K3 | GSI 360-80K3 | GSI 360-100K3 | GSI 360-120K3 | GSI 360-160K3 | GSI 360-200K3 | GSI 360-400K3 | GSI 360-400K3 | ||||||||
| Rated power(KW) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 400 | 600 | ||||||||
| Input voltage(VDC) | 360 | ||||||||||||||||
| Mains bypass (optional) | |||||||||||||||||
| Input voltage range(Vac) | 380±15%usmn;15%usmn;15% | ||||||||||||||||
| Input frequency(Hz) | 50/60±3%lusmn;3%lusmn;3% | ||||||||||||||||
| Mains charging current (optional) | Standard:20A | ||||||||||||||||
| AC output | |||||||||||||||||
| Wave | Pure sine wave | ||||||||||||||||
| Voltage | 3 phase,380VAC±1%lusmn;1%lusmn;1% | ||||||||||||||||
| Frequency | 50/60±1%lusmn;1%lusmn;1% | ||||||||||||||||
| Wav distortion(THD) | ≤2%(liner overload)oad)oad) | ||||||||||||||||
| Inverter efficiency | ≥90%;90%;90% | ||||||||||||||||
| Current peak factor | 3:1 | ||||||||||||||||
| Overload capacity | 105-110%,600secs;110-125%,60secs;﹥125%,10secssecs | ||||||||||||||||
| Display | LCD+LED | ||||||||||||||||
| Protection | Input reverse polarity protection, input under-voltage protection, input overvoltage protection, output overload protection, output short circuit protection (no automatic recovery, you need to restart the machine), overheating protection. | ||||||||||||||||
| Interactive | RS485(Remote network monitor is optional) | ||||||||||||||||
| Environment | |||||||||||||||||
| Protection | IP20 | ||||||||||||||||
| Altitude (m) | ≤4000 (1000m above decrease 1% every 100m)00m)00m) | ||||||||||||||||
| Cooling | Forced ventilation | ||||||||||||||||
| Humidity | <95% non-condensingsing | ||||||||||||||||
| Temperature (ºC)rdm;C)rdm;C) | -10~+40 | ||||||||||||||||
| Noise(1) | ≤50dB50dB50dB | ||||||||||||||||
| Dimension(W*H*D)mm | 905*625*1610 | 1030*800*1735 | 1105*900*1810 | 1500*1910*1105 | 2000*1910*1105 | ||||||||||||
| Weight (kgs) | 550 | 600 | 700 | 850 | 900 | 1000 | 1100 | 1450 | 1800 | ||||||||
About Us
Jiangsu Green Sunshine new energy technology Co.Ltd was established in January 1996, which is a high-tech enterprise mainly manufactures inverters, controllers, combiner boxes and batteries for off-grid solar power systems. We offer integrated solar power systems to our customers as well. Our company is located in Yangzhou City, Jiangsu Province China. More than 100 staff are employed in Jiangsu Green Sunshine new energy technology company. Our Research and Development department has 17 professional engineers, most of them get Master or PHD degree.
Managers of Green Sunshine new energy Co.Ltd lead the company with R&D-oriented principle. We have set the 'Solar Power System Engineering Research Center' with top science universities in China. Dedicated engineers of Green Sunshine new energy worked out many patents and new technologies. So far, Green Sunshine has adopted ISO9001:2008 and ISO14001:2004 certifications. Inverters, controllers and other accessories have been tested and authorized with CE, TUV, AS4777, ROHS, which are very popular in domestic and international market.ational market.rket.
Jiangsu Green Sunshine new energy technology Co.Ltd will continue to strengthen our management and technical level. Better products an service would be offered by us.
