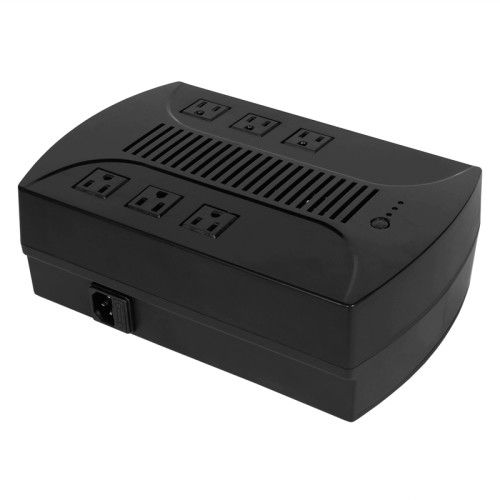

Offline UPS, EA200PLUS Series with 3PCS Surge Protection Output
bargain
add to cart| Model NO. | EA200PLUS |
| Brand | EAST |
| Usage | SVC |
| Iron Core Shape | EI |
| Application Range | Scientific Research Department |
| Phase | Single Phase |
| Current Type | AC |
| Size | Small |
| Power Source | Switching Regulated Power Supply |
| Trademark | OEM |
Technology: Classic series, EI transformer, Relay type
Input Voltage: 140VAC~260VAC or 100VAC~ 270VAC
Input Frequency: 50/60Hz
Output Voltage: 220VAC
Output Accuracy: +/-8%
Efficiency: 98%
Phase: Single phase
Display: Input and output voltage meter display
Protection: High voltage protection
Low voltage protection
High temperature protection
Circuit protection: Circuit breaker
Smart Cooling System: No
Operating Temperature: 0~40º Crdm; Crdm; C
Storage Temperature: -15º C~45º C~45º Cdm; C~45º C
Operating Relative Humidity: 10%RH~102%RH, Non-condensing
Input Voltage: 140VAC~260VAC or 100VAC~ 270VAC
Input Frequency: 50/60Hz
Output Voltage: 220VAC
Output Accuracy: +/-8%
Efficiency: 98%
Phase: Single phase
Display: Input and output voltage meter display
Protection: High voltage protection
Low voltage protection
High temperature protection
Circuit protection: Circuit breaker
Smart Cooling System: No
Operating Temperature: 0~40º Crdm; Crdm; C
Storage Temperature: -15º C~45º C~45º Cdm; C~45º C
Operating Relative Humidity: 10%RH~102%RH, Non-condensing
| MODEL | EA260P | EA270P | EA280P |
| Capacity | 600VA/360W | 700VA/420W | 800VA/480W |
| INPUT | |||
| Voltage | 100V/110V/120VAC±25% or 220V/230V/240VAC±25% (-35%optional)% (-35%optional) (-35%optional) | ||
| Frequency | 50/60Hz±10%(Auto Sensing) Sensing)Sensing) | ||
| OUTPUT | |||
| Voltage | 100V/110V/120VAC±10% or 220V/230V/240VAC±10%40VAC±10%mn;10%40VAC±10% | ||
| Frequency | 50/60Hz±1%(Auto Sensing) Sensing)Sensing) | ||
| Waveform | AC mode: Pure sine wave, Battery mode :Simulated sine wave | ||
| Crest Factor | 3:1 | ||
| Transfer Time | Typical 2-7ms,10ms max | ||
| BATTERY | |||
| DC Voltage | 12V | ||
| Configuration | 1*12V/7Ah | 1*12V/7Ah | 1*12V/8Ah |
| Typical Recharge Time | 6-8 hours recover to 90% capacity | ||
| PROTECTION | |||
| Full Protection | Short circuit protection, Battery overcharge and discharge protection, Surge protection | ||
| ENVIRONMENT | |||
| Humidity | 20~90% RH @ 0~40°C(non-condensing)nsing)sing) | ||
| Noise Level | ≤45dB (1m) (1m)(1m) | ||
| MANAGEMENT | |||
| USB/RS-232/SNMP(Optional) | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | ||
| PHYSICAL | |||
| Net/Gross Weight(kg) | 5.5/6.0 | 6.0/6.5 | 6.5/7.0 |
| Dimension(mm) W*D*H | 185*280*95 | ||
| Packing Dimension(mm) W*D*H | 231*329*144 | ||
| Quantity/20ft | 2400pcs | ||
