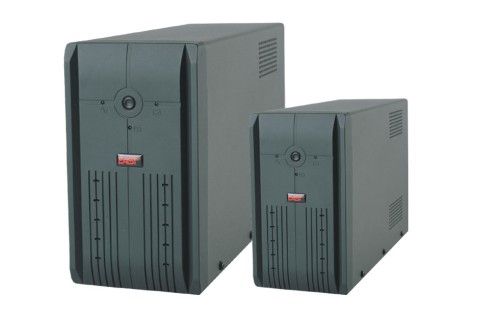

Line Interactive UPS, with UL, CE, Certificate
bargain
add to cart| Model NO. | EA200 LED series |
| Type | Line Interactive |
| Trademark | EAST/OEM |
| Origin | China |
| Phase | Single Phase |
| Protection | Fuse |
| Specification | UL, CE |
| HS Code | 85044020 |
Line interactive UPS with Full AVR (350VA-1500VA)
KEY FEATURES:
1. Short transfer time less than 6 seconds
2. LED display & audible alarmslarmslarms
3. Wide input voltage range: 220/230/240/110 +/-25%
4. Wide input frequency range: 50Hz/60Hz +/- 10%
5. Wave form: Sine wave in mains; Modified sine wave in battery mode
6. Full AVR
7. Cold start available
8. Compatible with generator
9. Surge protection, short-circuit protection, over voltage & low voltage protectionctionction
10. Self-detection on startup
11. Sealed lead-acid maintenance-free battery
12. With optional RS232&USB as well as RJ11 RJ11 RJ11
13. Many front panels and colors for your choice
14. OEM is allowed
KEY FEATURES:
1. Short transfer time less than 6 seconds
2. LED display & audible alarmslarmslarms
3. Wide input voltage range: 220/230/240/110 +/-25%
4. Wide input frequency range: 50Hz/60Hz +/- 10%
5. Wave form: Sine wave in mains; Modified sine wave in battery mode
6. Full AVR
7. Cold start available
8. Compatible with generator
9. Surge protection, short-circuit protection, over voltage & low voltage protectionctionction
10. Self-detection on startup
11. Sealed lead-acid maintenance-free battery
12. With optional RS232&USB as well as RJ11 RJ11 RJ11
13. Many front panels and colors for your choice
14. OEM is allowed
| MODEL | EA240 | EA260 | EA270 | EA280 | EA2120 | EA2150 | EA2200 |
| Capacity | 400VA 240W | 600VA 360W | 700VA 420W | 800VA 480W | 1200VA 720W | 1500VA 900W | 2000VA 1200W |
| INPUT | |||||||
| Voltage | 100V/110V/120VAC±25% or 220V/230V/240VAC±25% (-35%optional)% (-35%optional) (-35%optional) | ||||||
| Frequency | 50/60Hz±10%(Auto Sensing) Sensing)Sensing) | ||||||
| OUTPUT | |||||||
| Voltage | 100V/110V/120VAC±10% or 220V/230V/240VAC±10%40VAC±10%mn;10%40VAC±10% | ||||||
| Frequency | 50/60Hz±1%(Auto Sensing) Sensing)Sensing) | ||||||
| Waveform | AC mode: Pure sine wave, Battery mode :Simulated sine wave | ||||||
| Crest Factor | 3:1 | ||||||
| Transfer Time | Typical 2-7ms,10ms max | ||||||
| BATTERY | |||||||
| DC Voltage | 12V | 24V | |||||
| Configuration | 1*12V/4.5Ah | 1*12V/7Ah | 1*12V/7Ah | 1*12V/8Ah | 2*12V/7Ah | 2*12V/8Ah | 2*12V/9Ah |
| Typical Recharge Time | 6-8 hours recover to 90% capacity | ||||||
| PROTECTION | |||||||
| Full Protection | Short circuit protection, Battery overcharge and discharge protection | ||||||
| ENVIRONMENT | |||||||
| Humidity | 20~90% RH @ 0~40°C(non-condensing)nsing)sing) | ||||||
| Noise Level | ≤45dB (1m) (1m)(1m) | ||||||
| MANAGEMENT | |||||||
| Optional RS232/USB | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | ||||||
| PHYSICAL | |||||||
| Net/Gross Weight(kg) | 4.5/5.0 | 5.5/6.0 | 6.0/6.5 | 6.7/7.2 | 10.5/11.2 | 12.6/13.4 | 14.0/14.8 |
| Dimension(mm) W*D*H | 95*280*165 | 95*340*165 | 125*400*220 | ||||
| Packing Dimension(mm) W*D*H | 145*315*230 | 145*375*230 | 180*450*295 | ||||
| Quantity/20ft | 2400pcs | 2000pcs | 1000pcs | ||||
