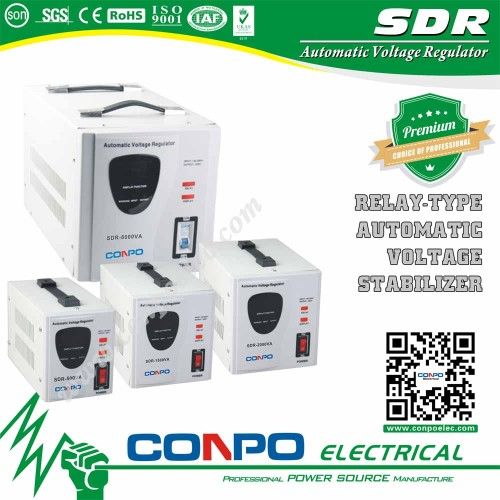

SDR Series Relay-Type Automatic Voltage Regulator/Stabilizer
bargain
add to cart| Model NO. | SDR-500VA~10000VA |
| Phase | Single Phase |
| Usage | Used in Region Where The Net Voltage Is Flucuating |
| Size | 500va~10000va |
| Power Source | Relay-Type AVR |
| Brand | Conpo |
| Specification | CE, RoHS, SGS, ISO9001, CNCA, SONCAP, SASO etc. |
| HS Code | 8504401990 |
| Current Type | AC |
| Frequency Characteristics | 50Hz/60Hz |
| Frequency | 50Hz/60Hz |
| Iron Core Shape | Toroidal |
| Application Range | Used in Region Where The Net Voltage Is Flucuating |
| Trademark | CONPO |
| Origin | Nanjing, China |
The series product is a relay-type digital displayed household voltage stabilizer, the low power consumption, reliable work, and good for use in regions where the net voltage is much fluctuating.
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Remarks:
Custom-made specifications are acceptable.
Features:
1. Relay control
2. Wide range voltage regulation
3. Technology: Classis series, toroidal transformer, relay type
4. Automatic voltage regulation
5. Display: LED digital display
6. Protection functions: Short circuit, over voltage, over temperature, low voltage
7. Waveform distortion: No additional waveform distortion
8. Dielectric strength: 1500V/1min
9. Insulation resistance: ≥ 2MΩ 2MΩ 2MΩ
Specifications & Packing Details:tails:ails:
Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.
Remarks:
Custom-made specifications are acceptable.
Features:
1. Relay control
2. Wide range voltage regulation
3. Technology: Classis series, toroidal transformer, relay type
4. Automatic voltage regulation
5. Display: LED digital display
6. Protection functions: Short circuit, over voltage, over temperature, low voltage
7. Waveform distortion: No additional waveform distortion
8. Dielectric strength: 1500V/1min
9. Insulation resistance: ≥ 2MΩ 2MΩ 2MΩ
Specifications & Packing Details:tails:ails:
| SDR-500VA/1000VA/1500VA/2000VA/3000VA/5000VA/8000VA/10000VA Relay-type Fully Automatic Voltage Regulator/Stabilizer(LED meter display) | |
| Power | 500VA/1000VA/1500VA/2000VA/3000VA/5000VA/8000VA/10000VA |
| Input voltage | 140~260V/100~260V |
| Input frequency | 50Hz/60Hz |
| Output voltage | 220VAC/110VAC |
| Output precision | 220V+/-8%, 110V+/-10% |
| Time delay | 5's, short time, 180's long time |
| Efficiency | >90% |
| Load power factor | 0.8 |
| Phase | Single phase |
| Operating temperature | 0~40ºCordm;Cordm;C |
| Storage temperature | -15ºC~45ºCC~45ºCrdm;CC~45ºC |
| Operating relative humidity | 10%RH~102%RH |
| Customize option for specification and availability, please contact CONPO | |
| Model | Main. Specifications | Qty. per pkg | Package size | Remarks |
| SDR-500VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 6pcs | 37*27.5*33cm | Custom-made specifications are acceptable. |
| SDR-1000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 4pcs | 65*30.5*22cm | Custom-made specifications are acceptable. |
| SDR -1500VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 4pcs | 65*30.5*22cm | Custom-made specifications are acceptable. |
| SDR -2000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 4pcs | 65*30.5*22cm | Custom-made specifications are acceptable. |
| SDR -3000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 2pcs | 54*42*31cm | Custom-made specifications are acceptable. |
| SDR -5000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 2pcs | 54*42*31cm | Custom-made specifications are acceptable. |
| SDR -8000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 1pc | 49*27*31cm | Custom-made specifications are acceptable. |
| SDR -10000VA | Vi: 140~260V/100~260V, Vo: 220V+/-8%, 110V+/-10%, Relay-type AVR, LED display | 1pc | 49*27*31cm | Custom-made specifications are acceptable. |
