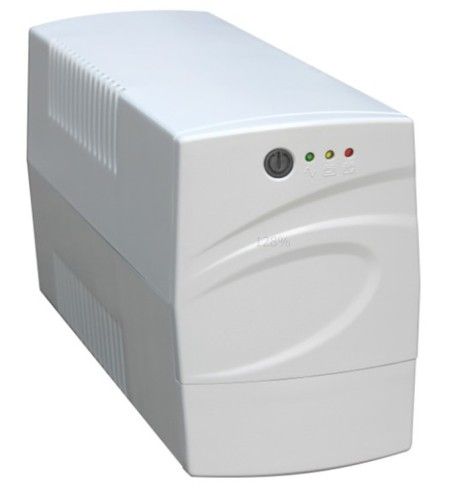

Ea200 Plastic Case Line Interactive Modify Wave UPS with CE Certificate (white)
Features
Microprocessor-based digital control
Boost and buck AVR for voltage stabilization
Frequency adaptive
Humanized alarm system
Automatically diagnose when starts
Cold start
Auto restart while AC is recovering
Simulated sine wave output
Intelligent battery management
Short circuit and over discharged protection
Automatically charging battery at UPS off mode
Optional RS232/USB communication port and RJ11/RJ45 protection
Microprocessor-based digital control
Boost and buck AVR for voltage stabilization
Frequency adaptive
Humanized alarm system
Automatically diagnose when starts
Cold start
Auto restart while AC is recovering
Simulated sine wave output
Intelligent battery management
Short circuit and over discharged protection
Automatically charging battery at UPS off mode
Optional RS232/USB communication port and RJ11/RJ45 protection
| MODEL | EA240 | EA260 | EA270 | EA280 | EA2120 | EA2150 | EA2200 |
| Capacity | 400VA 240W | 600VA 360W | 700VA 420W | 800VA 480W | 1200VA 720W | 1500VA 900W | 2000VA 1200W |
| INPUT | |||||||
| Voltage | 100V/110V/120VAC±25% or 220V/230V/240VAC±25% (-35%optional) | ||||||
| Frequency | 50/60Hz±10%(Auto Sensing) | ||||||
| OUTPUT | |||||||
| Voltage | 100V/110V/120VAC±10% or 220V/230V/240VAC±10% | ||||||
| Frequency | 50/60Hz±1%(Auto Sensing) | ||||||
| Waveform | AC mode: Pure sine wave, Battery mode :Simulated sine wave | ||||||
| Crest Factor | 3:1 | ||||||
| Transfer Time | Typical 2-7ms,10ms max | ||||||
| BATTERY | |||||||
| DC Voltage | 12V | 24V | |||||
| Configuration | 1*12V/4.5Ah | 1*12V/7Ah | 1*12V/7Ah | 1*12V/8Ah | 2*12V/7Ah | 2*12V/8Ah | 2*12V/9Ah |
| Typical Recharge Time | 6-8 hours recover to 90% capacity | ||||||
| PROTECTION | |||||||
| Full Protection | Short circuit protection, Battery overcharge and discharge protection | ||||||
| ENVIRONMENT | |||||||
| Humidity | 20~90% RH @ 0~40°C(non-condensing) | ||||||
| Noise Level | ≤45dB (1m) | ||||||
| MANAGEMENT | |||||||
| Optional RS232/USB | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | ||||||
| PHYSICAL | |||||||
| Net/Gross Weight(kg) | 4.5/5.0 | 5.5/6.0 | 6.0/6.5 | 6.7/7.2 | 10.5/11.2 | 12.6/13.4 | 14.0/14.8 |
| Dimension(mm) W*D*H | 95*280*165 | 95*340*165 | 125*400*220 | ||||
| Packing Dimension(mm) W*D*H | 145*315*230 | 145*375*230 | 180*450*295 | ||||
| Quantity/20ft | 2400pcs | 2000pcs | 1000pcs | ||||
