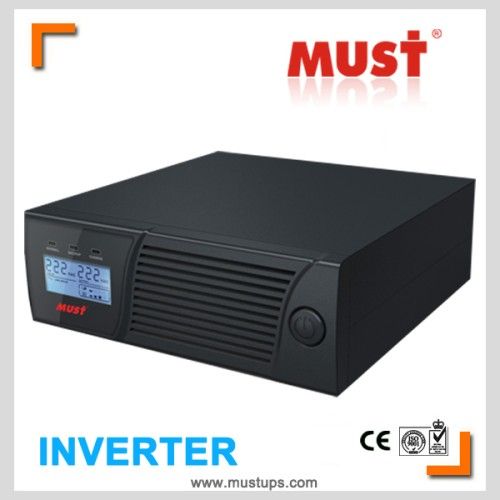

LCD Home Inverter 1000va 2000va Charge Current 10AMP/20AMP Adjustable
| Model NO. | EP1000 series |
| Type | DC/AC Inverters |
| Output Power | >1000W |
| Application | Home Fan, Light, TV, PC |
| Brand | Must or OEM |
| Input Votlage | 90-280VAC |
| Battery Cable | 8AWG 60cm |
| Watt | 1000va/600W 2000va/1200W |
| Product Size | 246*87*253mm |
| Battery Reverse Protection | Yes |
| Specification | CE. ISO9001, SGS |
| HS Code | 8504403090 |
| Phase | Single |
| Power Source | Electric Power |
| Nature of Wave String | Square Wave Inverter |
| Certification | CE, ISO9001 |
| Wave | Modified Sine Wave |
| Charge Current | 10A/20A |
| Double PCB Boards | Yes |
| Color | Black |
| Mosfets | 9 PCS |
| Trademark | MUST |
| Origin | Shenzhen City, Guangdong Province, China |
Features of 1000VA 2000VA home usage inverter
1. Charge current 10A/20A adjustable.
2. Double layers PCB board
3. Compact size for convenient use
4. With battery cable 8AWG 60CM
5. LCD and LED display
6.Three-steps intelligent charging control to reduce the recharge time.
7. wide input voltage: 90-280vac, narrow input voltage:170-280vac ( it is adjustable too)
8. mosfets update to 9 mosfets
9. small transformer update to big transformer
10. Battery reverse protection (relay or fuse option)
11. protection: discharge, overcharge, overload, over heating
12.Operating Environment: 0-40 degree, 0-90% relative humidity
13. home usage for DVD, TV, Lights and fans etc.
MODEL | EP10-1000 | EP10-2000 | ||||
| Default Battery System Voltage | 12VDC | 24VDC | ||||
| INVERTER OUTPUT | Reted Power | 1000VA/600W | 2000VA/1200W | |||
| Waveform | Modifide Sine-wave | |||||
| Nominal Output Voltage RMS | 230V | |||||
| Output Voltage Regulation | +10/-18% | |||||
| Output Frequency | 5OHz/60Hz±0.5 Hzn;0.5 Hzn;0.5 Hz | |||||
| Inverter Efficiency(Peak) | >80% | |||||
| Line Mode Efficiency | >95% | |||||
| Power Factor | 0.6 | |||||
| Typical Transfer Time | Typical 15~20ms 40ms max | |||||
| AC INPUT | Voltage | 230VAC | ||||
| Selectable Voltage Range | Narrow | 170~280VAC | ||||
| Wide | 90~280VAC | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | Nominal Input Voltage | 12.0VDC | 24.0VDC | |||
| Minimum Start Voltage | 10.5VDC | 21.0VDC | ||||
| Low Battery Alarm | 10.5VDC±0.3Vsmn;0.3Vsmn;0.3V | 21.0VDC±0.3Vsmn;0.3Vsmn;0.3V | ||||
| Low Battery Cutoff | 10.0VDC±0.3Vsmn;0.3Vsmn;0.3V | 20.0VDC±0.3Vsmn;0.3Vsmn;0.3V | ||||
| High Voltage Alarm | 16.0VDC±0.3Vsmn;0.3Vsmn;0.3V | 32.0VDC±0.3Vsmn;0.3Vsmn;0.3V | ||||
| High Battery Voltage Recover | 15.0VDC±0.3Vsmn;0.3Vsmn;0.3V | 30.0VDC±0.3Vsmn;0.3Vsmn;0.3V | ||||
| CHARGER | Charger Voltage (Vbat<12.5V).5V) | 14.4VDC±0.4Vsmn;0.4Vsmn;0.4V | 28.8VDC±0.4Vsmn;0.4Vsmn;0.4V | |||
| Charger Voltage (Vbat﹥12.5V).5V) | 13.7VDC±0.2Vsmn;0.2Vsmn;0.2V | 27.4VDC±0.2Vsmn;0.2Vsmn;0.2V | ||||
| Charging Current 10A | 10A±2Alusmn;2Alusmn;2A | |||||
| Charging Current 20A | 20A±2Alusmn;2Alusmn;2A | |||||
| Overcharge Protection S.D. | 16VDC ±0.4Asmn;0.4Asmn;0.4A | 32VDC ±0.8Asmn;0.8Asmn;0.8A | ||||
| BYPASS & PROTECTION | Nominal Input Frequency | 50Hz or 60Hz | ||||
| Overload Protection (SMPS Load) | FUSE | |||||
| Output Short Circuit Protection | FUSE | |||||
| Bypass Breaker Rating | 10A | |||||
| Max Bypass Current | 10Amp | |||||
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 246*87*253mm | ||||
| Net Weight (kg) | 2.3 | 2.5 | ||||
| Shipping Dimensions(W*H*D) | 286*127*332mm | |||||
| Shipping Weight (kg) | 2.9 | 3.1 | ||||
| Other | Operation Temperature Range | 0°C to 40°C 40°Ceg;C 40°C | ||||
| Audible Noise | 60dB MAX | |||||
| Display | LED+LCD | |||||
| Standard Warranty | 1 year | |||||
