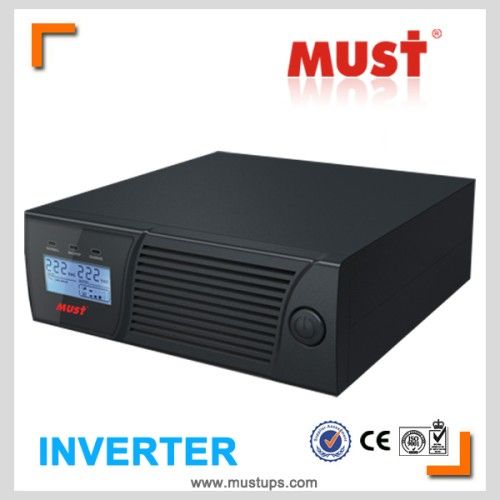

High Frequency Popular Modified Sine Wave Inverter
| Model NO. | EP1000series |
| Type | DC/AC Inverters |
| Output Power | 501 - 1000W |
| Nature of Source Flow | Passive inverter |
| Application | Electric Razor |
| Brand | Must or OEM |
| Capacity | 1000va/2000va |
| Display | LED/LCD |
| Specification | ISO, CE, |
| HS Code | 8504403090 |
| Phase | Single |
| Power Source | Electric Power |
| Nature of Wave String | Square Wave Inverter |
| Circuit Topologies | Push-pull Type |
| Certification | CE, ISO9001 |
| Frequency | High Frequency |
| Charger | 10-20AMP |
| Trademark | MUST or OEM brand |
| Origin | China |
Main features:
1.Household use
2.User selectable for accepting wider input voltage.
3.Full automatic and silent operation.
4.Rack Tower design.
5.High Frequency.
6.Off mode charging.
7.Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8.Compact size for convenient use and storage.
9.Built-in 8Amp super charger for up to 100Ah battery.
10.Small scale and cost effective inverter for home appliances and office equipment.
11. 3 steps IGBT mosfet charging control to recharging time
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 500VA/300W;1000VA/600W;2000VA/1200W | 500VA/300W;1000VA/600W;2000VA/1200W | |
| Output Voltage | 120V | 230V | |
| Phase | Single | ||
| Voltage Waveform | Modified Sine Wave | ||
| Power Factor | 0.6 | ||
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz | ||
| Regulation (Nominal) | 10%-18% | ||
| Regulation(Battery mode) | ±0.1HZmn;0.1HZmn;0.1HZ | ||
| Transfer time | 8ms Typical | ||
| INPUT | |||
| Nominal Voltage | 110V/120V Selectable | 220V/230V/240V Selectable | |
| Phase | Single | ||
| Voltage range | 90 - 145VAC or 170-280VAC ( Narrow Range ) | ||
| 50-145VAC / 90-280VAC (Wide Range) | |||
| BATTERY | |||
| Charger Current | 500VA/300/12VDC:10 Amp + / - 1Amp ;1000VA/600W/12VDC:10 Amp + / - 1Amp 2000VA/1200W/24VDC:10 Amp + / - 1Amp | ||
| Overcharge Protection | 500VA/300W: 15V +/- 0.3V charger stops and fault | ||
| 1000VA/600W:15V +/- 0.6V charger stops and fault | |||
| 2000VA/1200W: 30V +/- 0.6V charger stops and fault | |||
